 Step Nº 4

Use the coupling bolt to fasten the Apparatus to a suitable fixed point.

Turn the bolt in two movements, pushing it in up to the second groove, fixing it with its cam.

This bolt is the only place in which the apparatus should be fastened (slung or well coupled)

in order to use it.

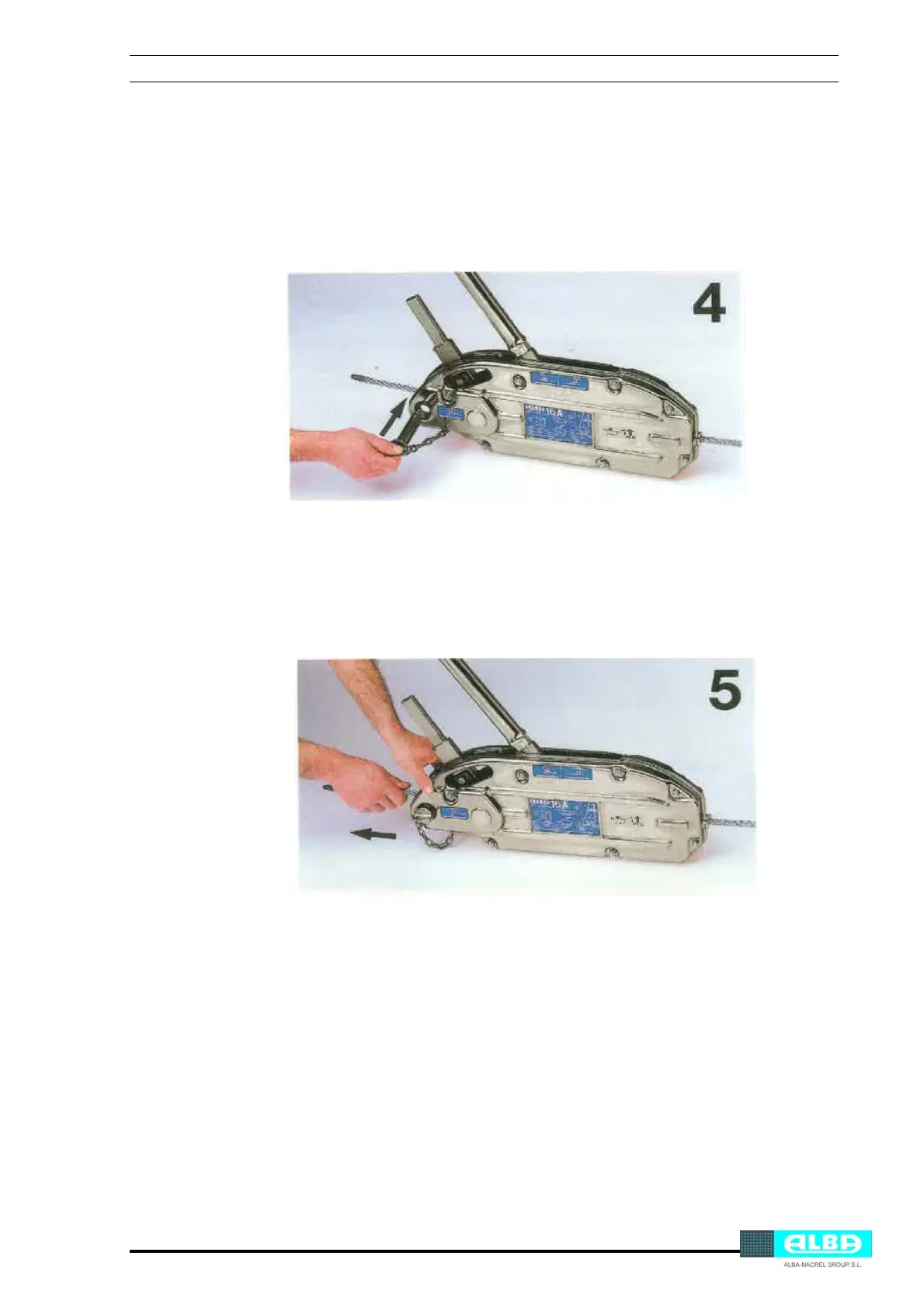

Fig. 2-4 – Fastening the Apparatus to a fixed point

 Step Nº 5

Pull the cable out of the opening until it is tight.

Fig. 2-5 - Pulling the cable out with your hand

 Step Nº 6

Placing the apparatus in reverse gear, remove the alignment pin from the unlocking claw.

Place the lever in forward or reverse gear and turn it halfway round to prevent it from coming

out.

The Apparatus is ready for use.
