8A-16A-32A INSTALLATION Page 8 of 28

8A-16A-32A Rev.00-EN  (+34) 944 71 16 00  (+34) 944 53 17 54  export@alba.es www.alba.es

2 INSTALLATION

Apart from the dimensions of the Traction Apparatus, the following conditions need to be

complied with:

 The environment must be well lit in order to guarantee the safe use and

maintenance of the Traction Apparatus.

 The work area should be of the appropriate dimensions in accordance with the

work to be executed.

 The permitted operating temperature is from – 5 ºC to + 40 ºC.

 The permitted relative humidity is from 30% to 90% (at 20 ºC).

 The area should be protected against atmospheric agents.

2.1 Commissioning

 Step Nº 1

The Cable is unrolled as illustrated in Fig. 2-1, pulling out the coupling and rolling the reel to

prevent the formation of kinks and twists.

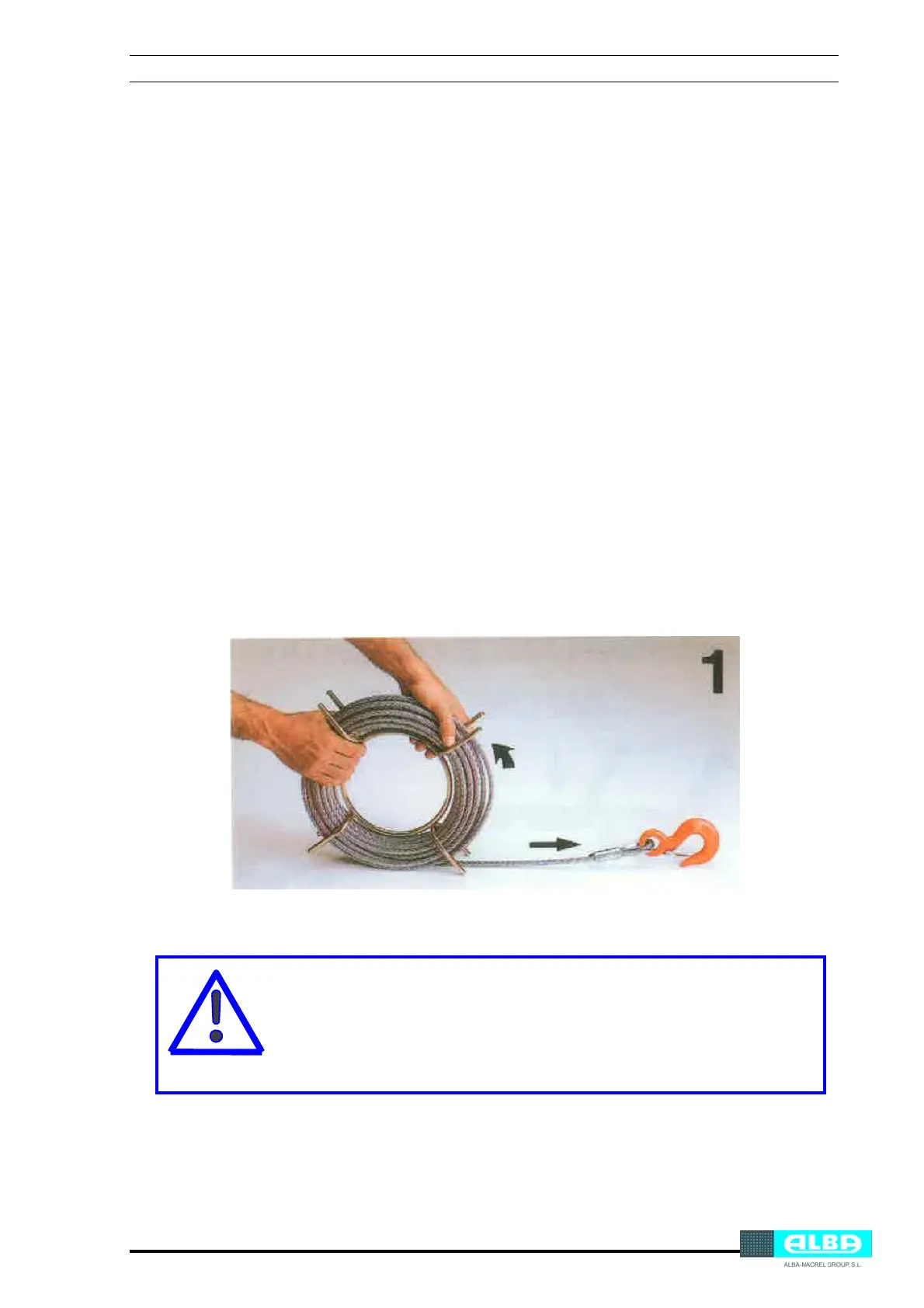

Fig. 2-1 - Cable-coupling-wheel unit

WARNING:

If the Cable is left on the floor without rolling it in, kinks and twists

will appear which cannot be corrected and which will damage the

Cable over time.

Alba 8A - Installation; Commissioning; Fig. 2-1 - Cable-Coupling-Wheel Unit
