1.6 Characteristics
8A 16A 32A
Rated lifting capacity kg 800 1600 3200
Cable feed rate per cycle driven mm 54 58 45
Nominal stress on the lever kg 29 40 53
Net weight (with no cable-lever) kg 6,4 13,7 23,7
Weight when packed kg 7,7 16 26,3
Packaging measurements cm 44 x 9 x 28 56 x 12 x 36 70 x 11 x 38
Cable
Diameter mm 8,3 11,3 16,3
Breaking load kg 4800 9600 19200
Weight/m kg 0,27 0,51 1
1.7 Dimensions

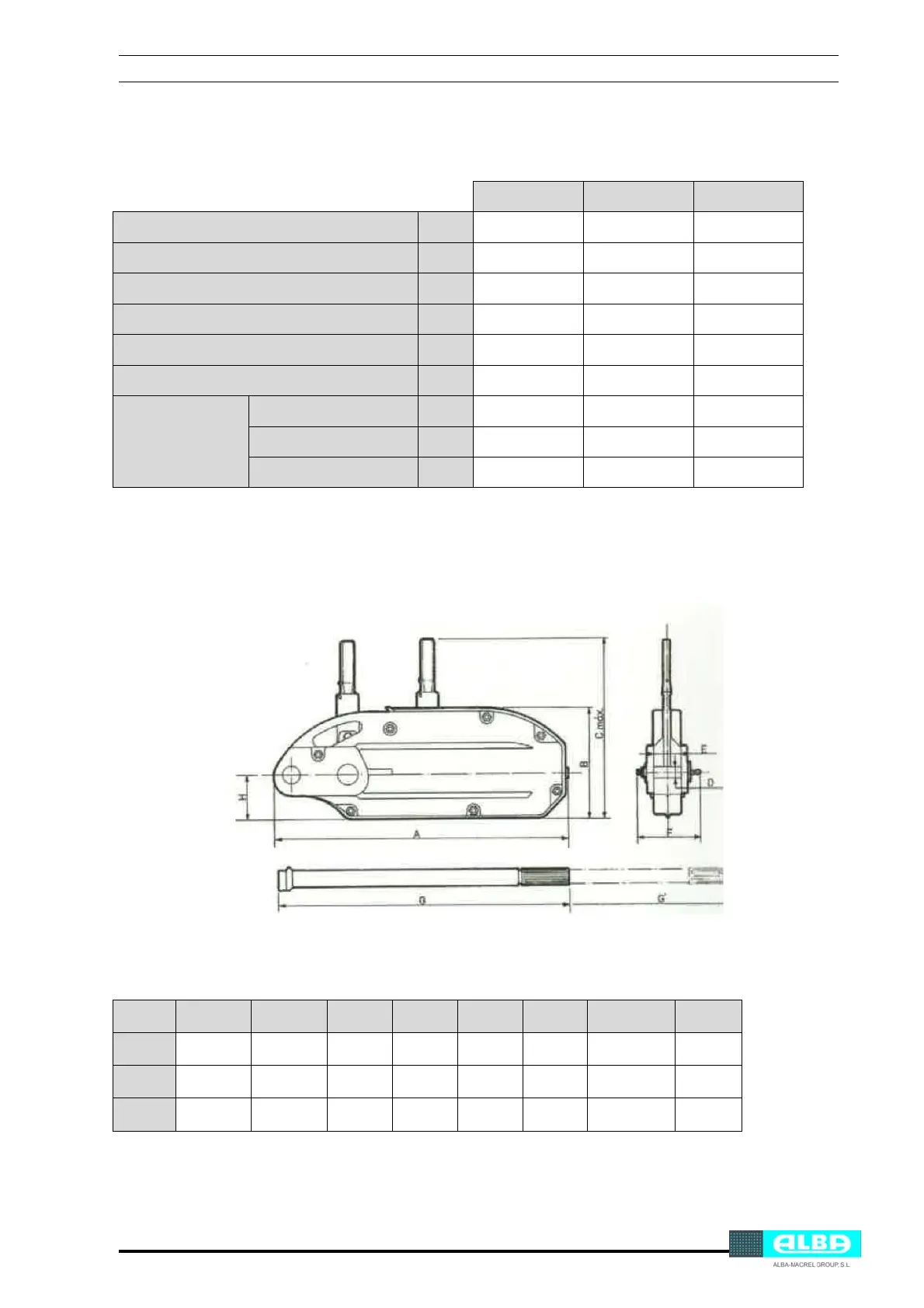

Fig. 1-4 - Dimensions
A B C D E F G / G’ H
8A 430 170 268 18 38 109 645 60
16A 546 203 336 22 48 120 635/1055 82
32A 663 232 372 28 50 136 635/1055 105
