8A-16A-32A DESCRIPTION Page 3 of 28
8A-16A-32A Rev.00-EN (+34) 944 71 16 00 (+34) 944 53 17 54 export@alba.es www.alba.es
Description of the main components of the Apparatus:

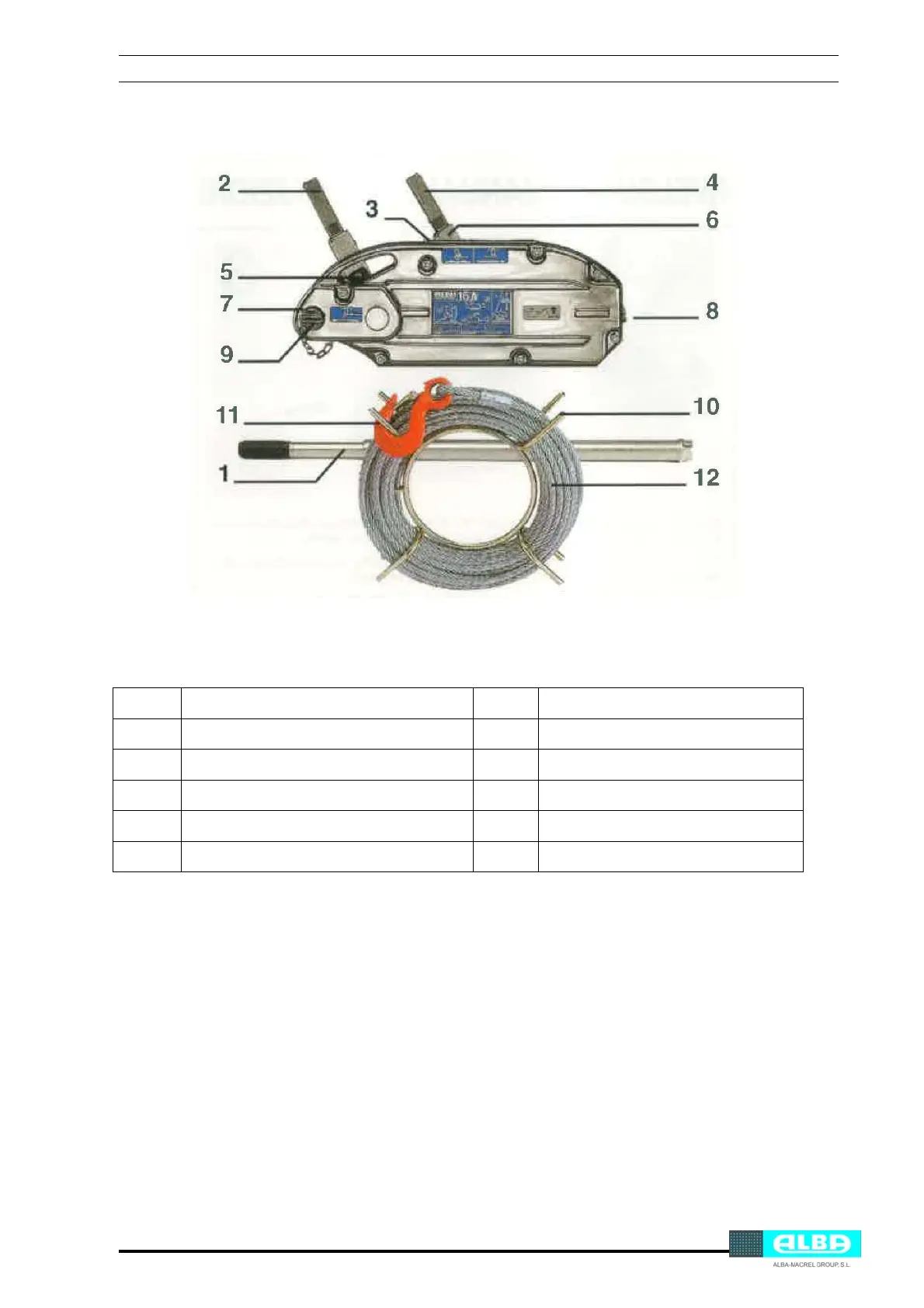

Fig. 1-2 – Main components
1.3 Checks on delivery
At the time of the delivery of the Traction Apparatus a check should be conducted to ensure:
The order matches exactly what has been delivered.
The Traction Apparatus is in perfect condition, comprising all the parts and with no
defects.
In the event of detecting an anomaly in relation to any of the aforementioned ítems,
you should contact ALBA-MACREL GROUP S.L. or their local representative
immediately.
1 Telescopic lever 7 Cable output
2 Forward lever 8 Cable input
3 Unlocking claw 9 Coupling bolt with a lock
4 Reverse lever 10 Reel
5 Safety screw 11 Coupling with safety lock
6 Alignment pin 12 Cable
