1.2 General Information
This Apparatus is specifically designed to handle load son vertical, horizontal and inclined
planes as illustrated in the sketches in Fig. 1-1.
The weights capable of being handled are specified in the table in section 1.6.
In the event of the need to handle greater weights, different pulley systems can be used.
The lifting device is a portable apparatus equipped with a pass-through cable which is drawn
in a straight line by clamps. The stress is transferred to the Manoeuvre Levers (up or down)
through a removable lever (Drive Lever).
It features a safety system whereby the Apparatus cannot be unlocked in order to remove the
Cable when it is loaded. It also features a device which prevents the scaffold from being raised
when it exceeds 2.5 times the work load limit.

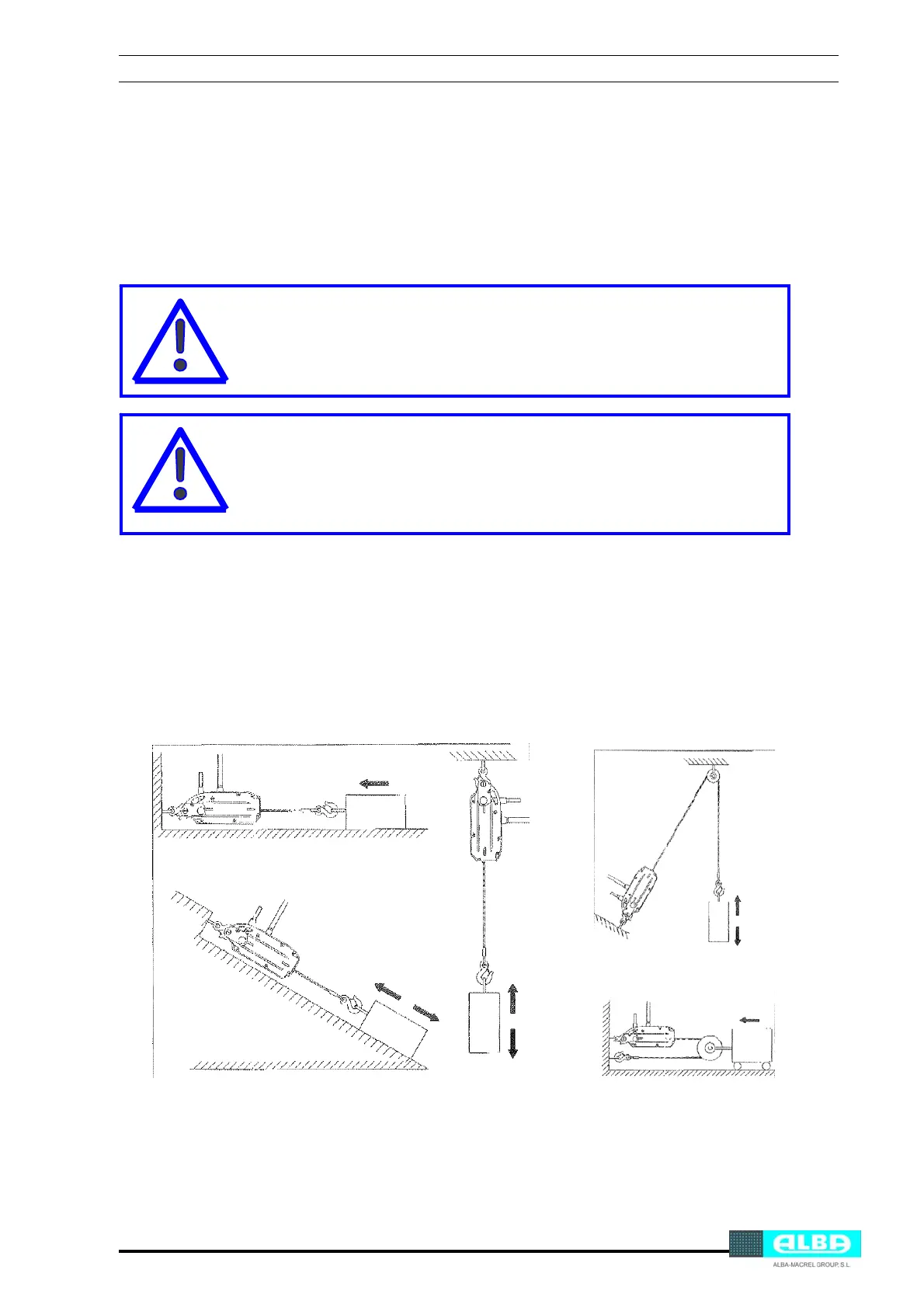

Fig. 1-1 - General information
WARNING:
The calculation of the pulleys required to handle the loads should
be conducted by specialised personnel.
WARNING:
Even when using pulleys which ensure the handling of greate
weights, care should always be taken not to exceed the cable
breaking load. See the breaking load in section 1.6.
