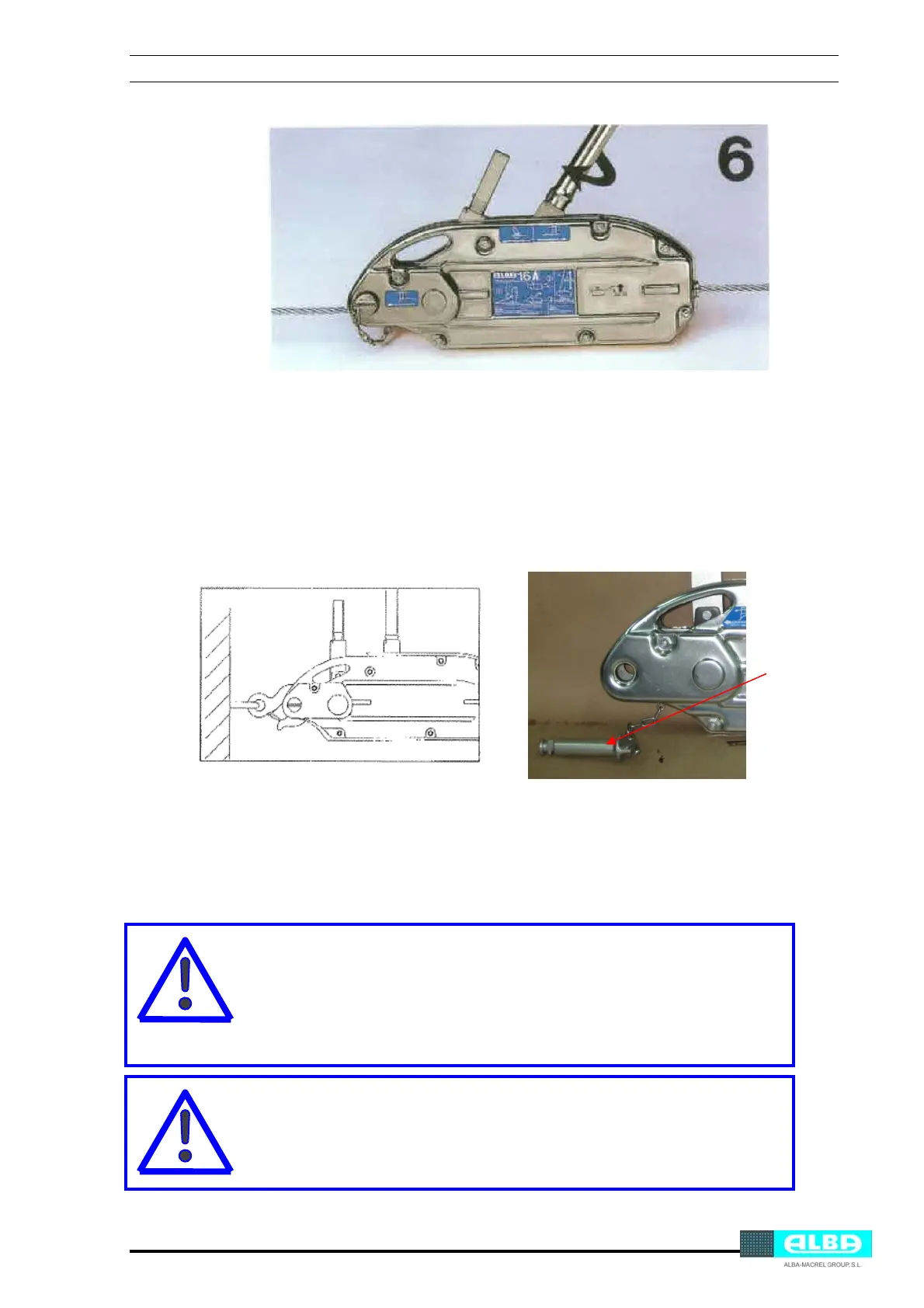

Fig. 2-6 – Placing the lever in position and turning it halfway round to prevent it from coming loose
2.2 Fastening the Traction and Lifting Apparatus
The Traction Apparatus is equipped with a coupling bolt at one end to fasten it to a suitable
fixed point.
Fig. 2-7 – Coupling on the end
A steel sling or coupling needs to be used to fasten it, and never the cable extending from
the Apparatus. This cable should come out freely and you should not use any type of device
which subjects it to stress.
WARNING:
The point to which the traction device is fastened should be
prepared to withstand the load with a considerable safety margin.
The choice of an unsuitable fastening point could cause an
accident.
WARNING:
The only way of fixing the Apparatus is by attaching the sling o
hook to the coupling bolt. Never attach it to the casing o
transportation handle.
