NTP 100 — Install a B-0404-A
Alcatel-Lucent 7330/7302 ISAM FTTN R04.02.42a March 2011 NTP 100-3
3FE 54199 AAAA TCZZA Edition 01 ONT Product Information Guide

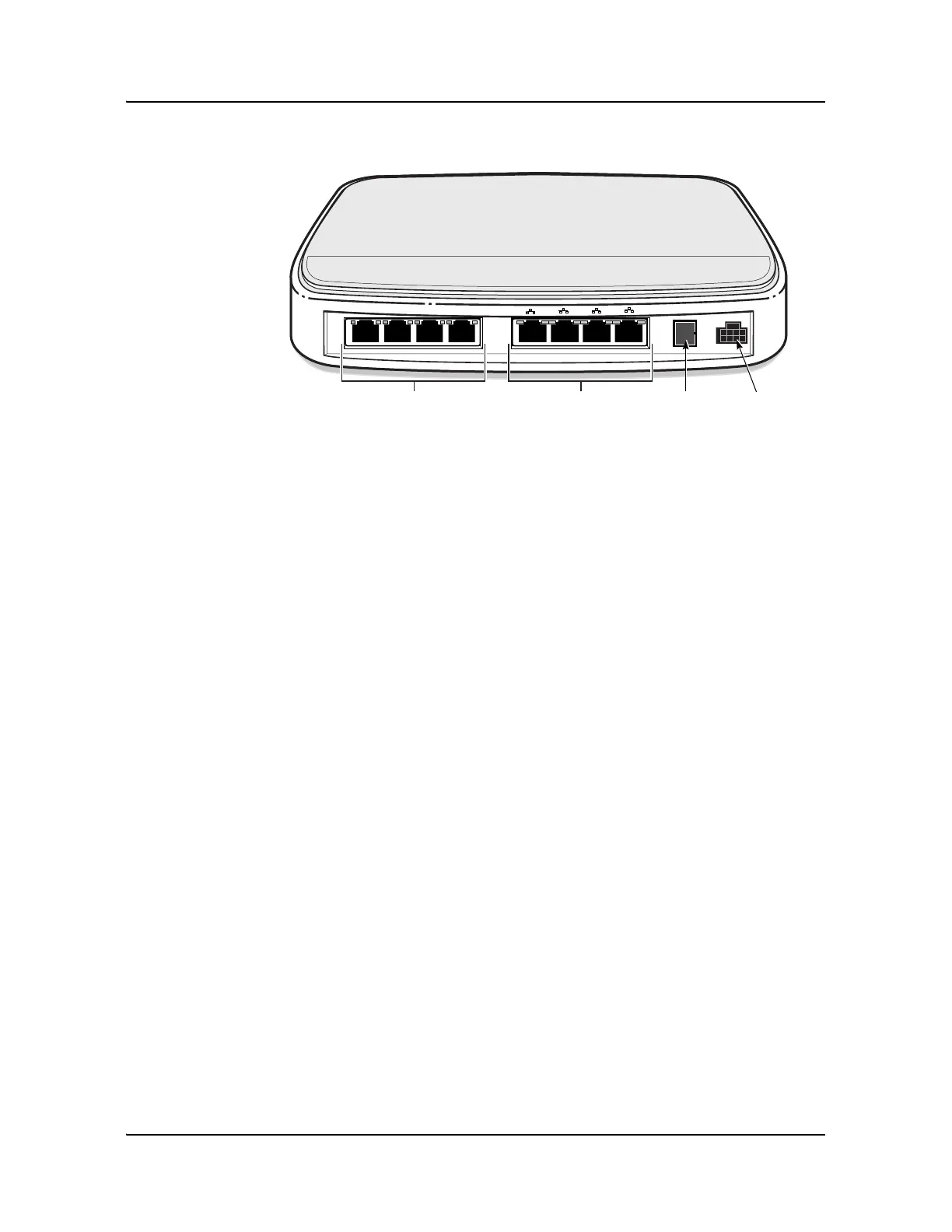

Figure NTP 100-1: B-0404-A business ONT connections
5 Place the business ONT unit:
a On a flat surface, such as a desk, resting horizontally; go to step 6.
b In a stand mount (3FE 60673 AA).
i Place the stand mount on the flat surface.
ii Slide the ONT into the opening on the stand mount, ensuring it is
securely held. Figure NTP 100-2 shows the stand mount.
1
2 3
4
PON
LINE 1
LINE 2
LINE 3
LINE 4
UPS
Ethernet ports
(RJ-45)
Power
connection
E1/T1
(RJ-48C)
19868
Fiber optic
port
