NTP 100 — Install a B-0404-A
NTP 100-4 March 2011 Alcatel-Lucent 7330/7302 ISAM FTTN R04.02.42a
ONT Product Information Guide Edition 01 3FE 54199 AAAA TCZZA

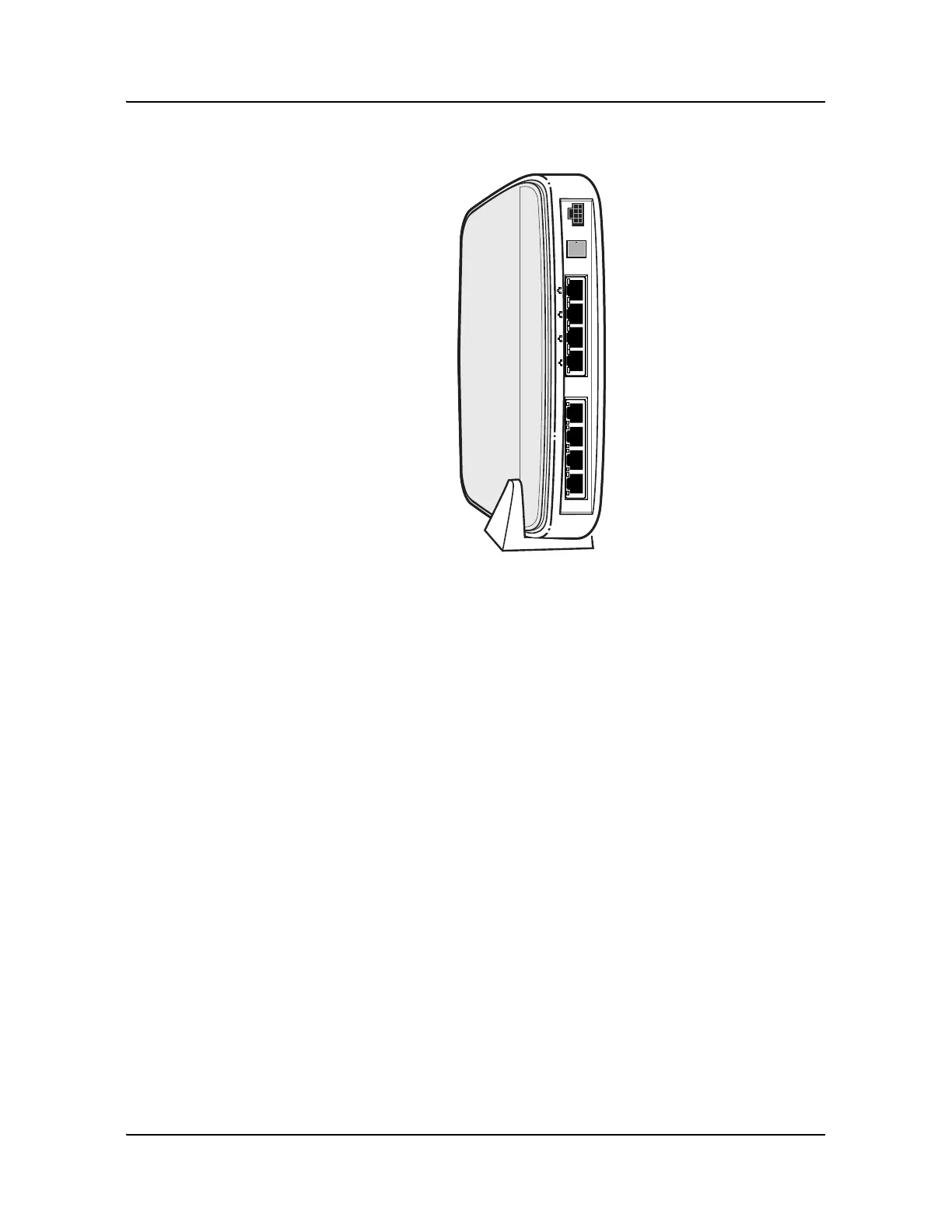

Figure NTP 100-2: B-0404-A in a stand mount
iii Go to step 6.
c In a wall mount bracket.
i Measure and drill two holes in the wall where the ONT will be mounted.
The holes should be the same distance apart as the holes on the wall
mounting bracket (83.3 mm apart, or 3.28 in).
ii Align the holes in wall mount bracket with the holes in the wall.
iii Fasten the wall mount bracket to the wall with either screws or bolts.
iv Slide the ONT down over the mounting bracket until the fiber optic port
is directly in front of the fiber optic port cable lead built into the
bracket, as shown in Figure NTP 100-3.
1
2 3
4
PON
LINE 1
LINE 2
LINE 3
LINE 4
UPS
19869
