NTP 100 — Install a B-0404-A
NTP 100-6 March 2011 Alcatel-Lucent 7330/7302 ISAM FTTN R04.02.42a
ONT Product Information Guide Edition 01 3FE 54199 AAAA TCZZA

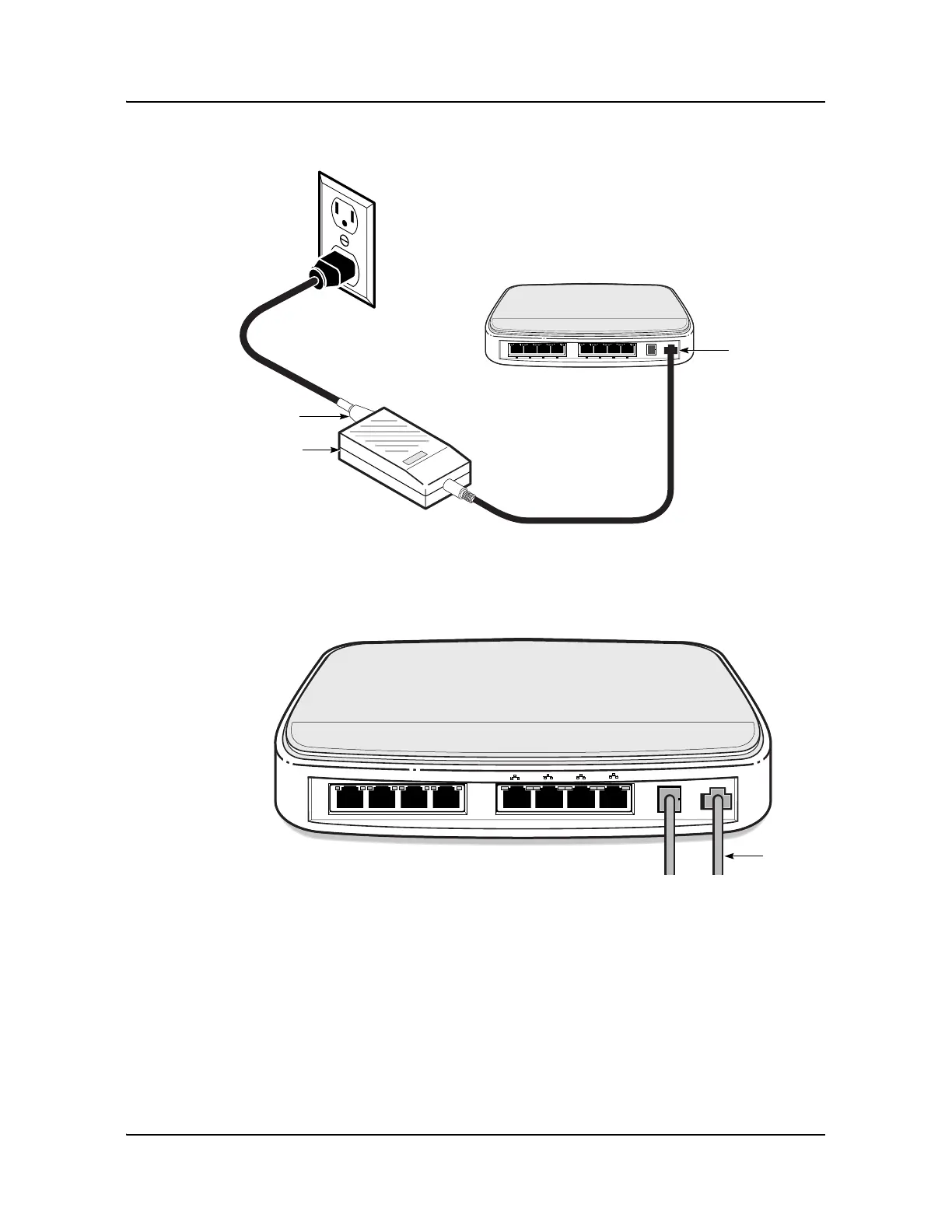

Figure NTP 100-4: B-0404-A with power converter
ii Connect the power supply to the ONT as shown in Figure NTP 100-5.
Figure NTP 100-5: B-0404-A power connection
iii Go to step 13.
12 Connect the B-0404-A to a UPS.
i Install the UPS (DLP 107).
ii Plug the optional 8-pin Molex output power cord in to the power connector
(DLP 110).
13 Verify the ONT LEDs, voltage status, and optical signal levels (DLP 120).
20000
ONT power
connector
Power cable connector
AC power converter
1 2 3 4
PON
1 2 3 4
1
2 3
4
PON
LINE 1
LINE 2
LINE 3
LINE 4
UPS
20151
Power
cable
