NTP 101 — Replace a B-0404-A
NTP 101-4 March 2011 Alcatel-Lucent 7330/7302 ISAM FTTN R04.02.42a
ONT Product Information Guide Edition 01 3FE 54199 AAAA TCZZA

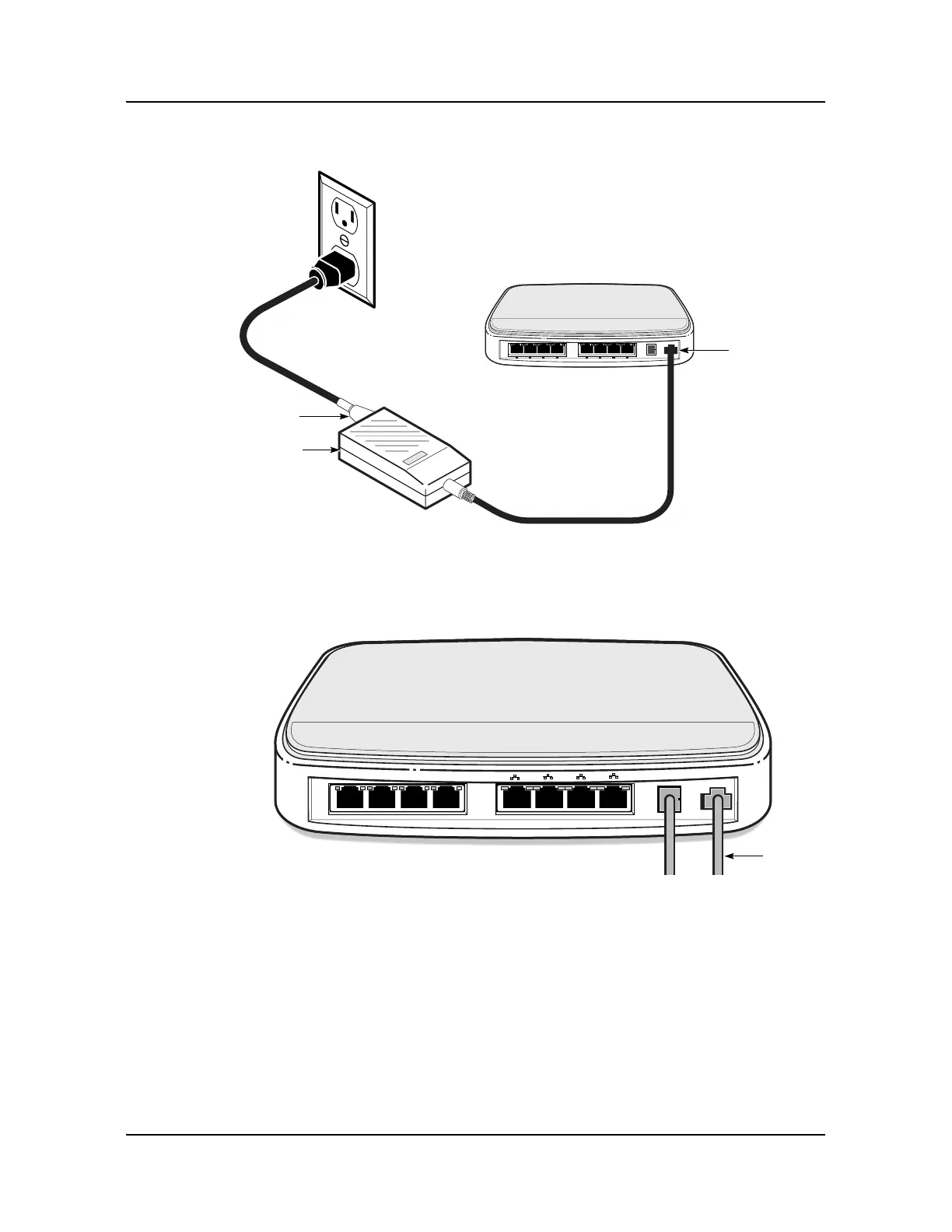

Figure NTP 101-2: B-0404-A with power converter
ii Connect the power cable to the ONT as shown in Figure NTP 101-3.
Figure NTP 101-3: B-0404-A power connection
8 Connect the B-0404-A to a UPS.
i Install the UPS (DLP 107).
ii Plug the optional 8-pin Molex output power cord in to the power connector
(DLP 110).
20000
ONT power
connector
Power cable connector
AC power converter
1 2 3 4
PON
1 2 3 4
1
2 3
4
PON
LINE 1
LINE 2
LINE 3
LINE 4
UPS
20151
Power
cable
