8 — I-010G-A unit data sheet
8-4 March 2011 Alcatel-Lucent 7330/7302 ISAM FTTN R04.02.42a
ONT Product Information Guide Edition 01 3FE 54199 AAAA TCZZA
I-010G-A connections and components

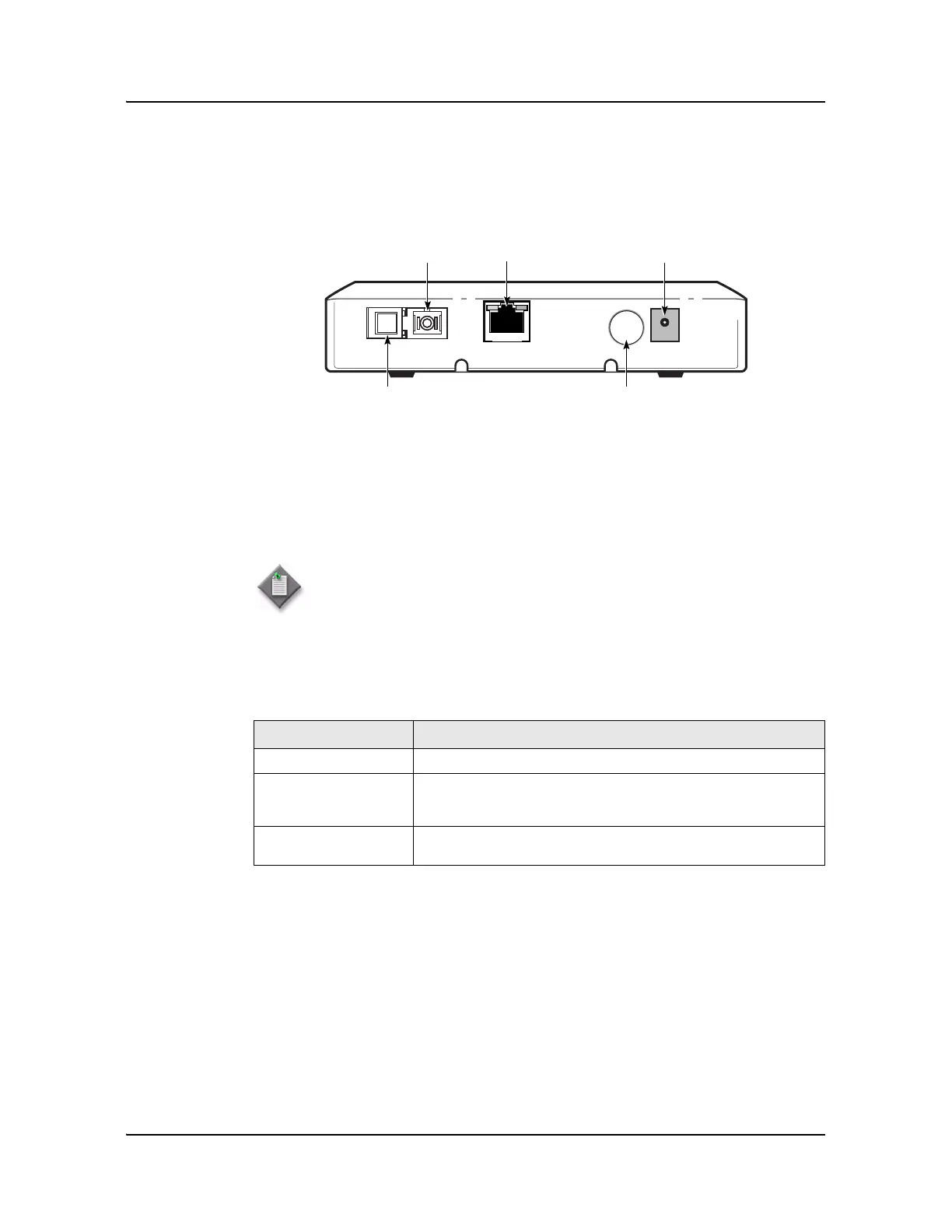

Figure 8-1 shows the physical connections for I-010G-A indoor ONTs.
Figure 8-1 Physical connections on I-010G-A indoor ONTs
The I-010G-A indoor ONT supports data services from one 10/100/1000BASE-T
Ethernet port (CAT5 or better UTP cable). Full-duplex operation and
auto-negotiation between 10 Mb/s, 100 Mb/s, and 1000 Mb/s are also supported.
I-010G-A indoor ONTs also feature an ON/OFF power button for manual shut down
when needed.
Table 8-4 describes the physical connections for I-010G-A indoor ONTs.
Table 8-4 I-010G-A indoor ONT connections
Note
(1)
The primary path for the earth ground for these ONTs is provided by the 12V Return signal in the
power connector.
8.5 I-010G-A LEDs
Figure 8-2 shows the I-010G-A indoor ONT LEDs.
Note — The I-010G-A indoor ONT is suitable for connection to
intrabuilding or non-exposed wiring or cabling only.
Connection
(1)
Description
Fiber optic port This connection is provided through a fiber optic cable.
Ethernet port This connection is provided through an Ethernet RJ-45 cable. One
Ethernet connection is supported. The Ethernet port supports both
data and in-band video services.
Power This connection is provided through a power cable with a barrel
connector.
On/Off push button
19833
Shutter
Power
connector
Ethernet (GE)
RJ-45
SC/APC
connector
