8 — I-010G-A unit data sheet
Alcatel-Lucent 7330/7302 ISAM FTTN R04.02.42a March 2011 8-5
3FE 54199 AAAA TCZZA Edition 01 ONT Product Information Guide

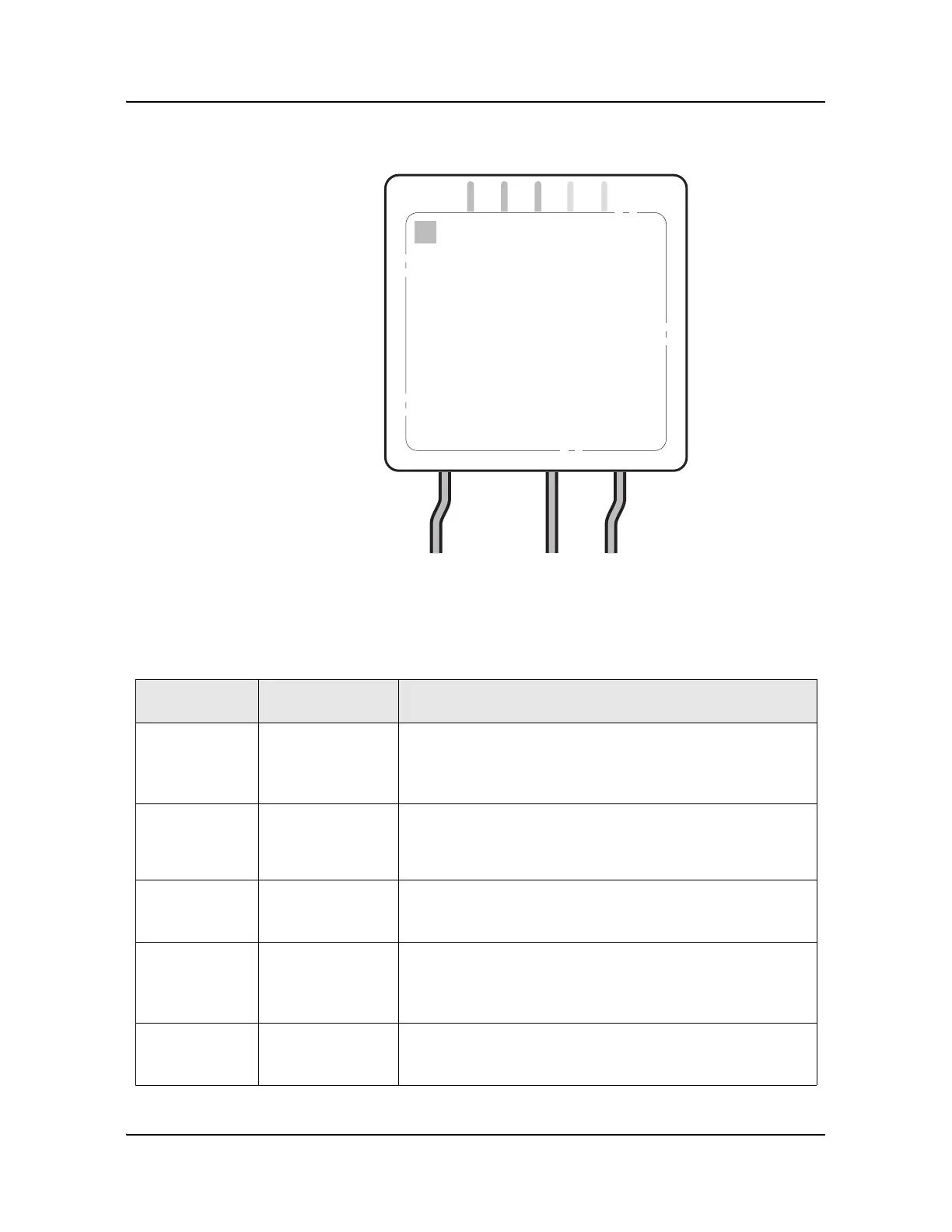

Figure 8-2 I-010G-A indoor ONT LEDs
Table 8-5 provides I-010G-A indoor ONT LED descriptions.
Table 8-5 I-010G-A indoor ONT LEDs
19835
Alarm Update LAN Optical Power
Indicator LED color and
behavior
LED behavior description
Power Red
Green
Green flashing
Off
Power supply is detected
Power is being used
ONT is booting
Power is unavailable
Optical Red
Green
Green flashing
ONT initial ranging
ONT initial ranging is complete
ONT management control interface (OMCI) traffic exchange between
OLT and ONT
LAN Off
Green
Green flashing
No Ethernet connectivity
Ethernet connectivity but no activity
Activity is detected from the Ethernet interface
Update Red
Green
Green flashing
Off
ONT software download failed
ONT software download complete
ONT software downloads starting
No software update
Alarm Red
Red flashing
Off
ONT hardware has failed
Activated software is not operational
No alarms detected at the ONT
