3.3.1.1 To Connect
• Make sure that the power supply cable is not connected to the device.
• Connect all data cables.
• Connect the power supply cable to the device.
• Place the on/off switch in position 1.
• Lower the transparent protector.
3.3.1.2 To Disconnect
• Raise the transparent protector.
• Place the on/off switch to the 0 position.
• Disconnect the power supply cable from the device.
• Disconnect the data cables.

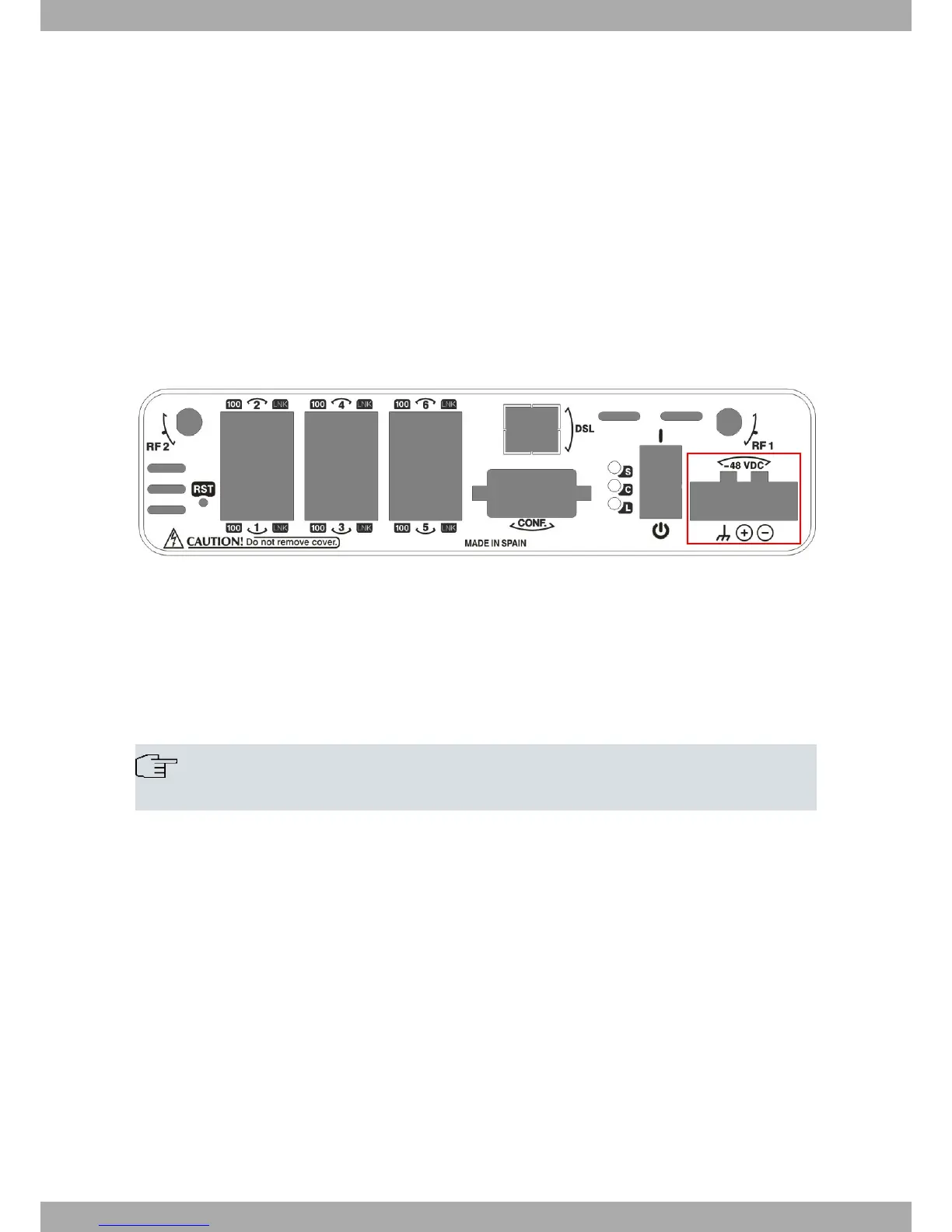

Fig. 9: Power supply connector
The connector has 3 terminals, 2 for V DC powering, and another, labeled ground, that connects the device to the
ground point where the rest of the devices are connected. Although this indicates a positive terminal and another
negative, the device can be connected to the power with reverse polarity.
To connect the power to the device, please carry out the steps set forth in To Connect on page 11: check that the
power switch is in the OFF position (0) and that the power source is NOT connected to the electricity network; find
the power supply connector (located on the front panel) and insert the power cable connector.
Note
Use minimum wire size of 16 AWG (1.29 mm/0.051 in Ø) copper conductors.
3.4 RST Button
The OA5725R routers have, on their front panel, a button that can be accessed from the outside and is labeled
“RST”. This button has two functions:
• To initiate a restart.
• To restart the device with the default configuration. The default configuration has IP 192.168.1.1 assigned to all the
switch ports.
The external button is physically protected, so it cannot be accidentally pushed. You need a sharp-edged object to
activate it.
3.4.1 Restarting the device
Follow these steps to restart the device:
(1) Press the RST button. Device restart is indicated by the 3 LEDs on the front panel lighting up in amber.
(2) Stop pressing the RST button as soon as the 3 LEDs on the front panel are lit up.
Alcatel-Lucent Enterprise
3 Components and Power Supply
OA5725R Router 11
