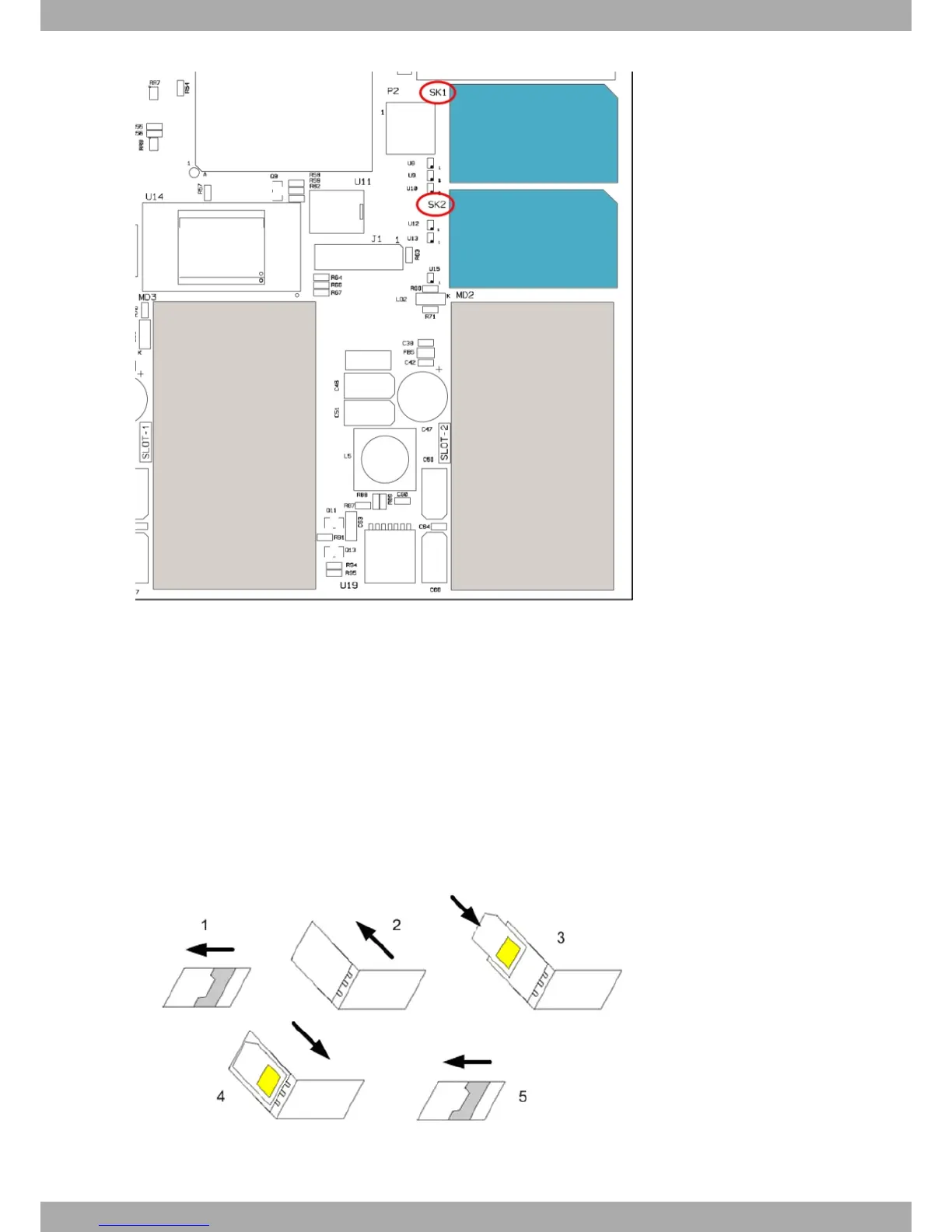

Fig. 17: Location of the SK1 and SK2 SIM trays
4.2 Procedure to install the SIM
In order to insert a SIM card in a tray, locate the retaining flange (metal fastening with OPEN and LOCK on it) so you
can open the tray and place the SIM card on it. Then:
(1) Push the fastening in the direction indicated by the arrow with the word OPEN.
(2) Open the upper part of the tray.
(3) Fully insert the SIM card in the guides.
(4) Return the tray to its original position.
(5) While pressing on the tray, push the fastening towards the direction indicated by the work LOCK so it is firmly in
place.
Fig. 18: Instructions to insert the SIM in the internal tray
Alcatel-Lucent Enterprise
4 Installing the SIM card
OA5725R Router 17
