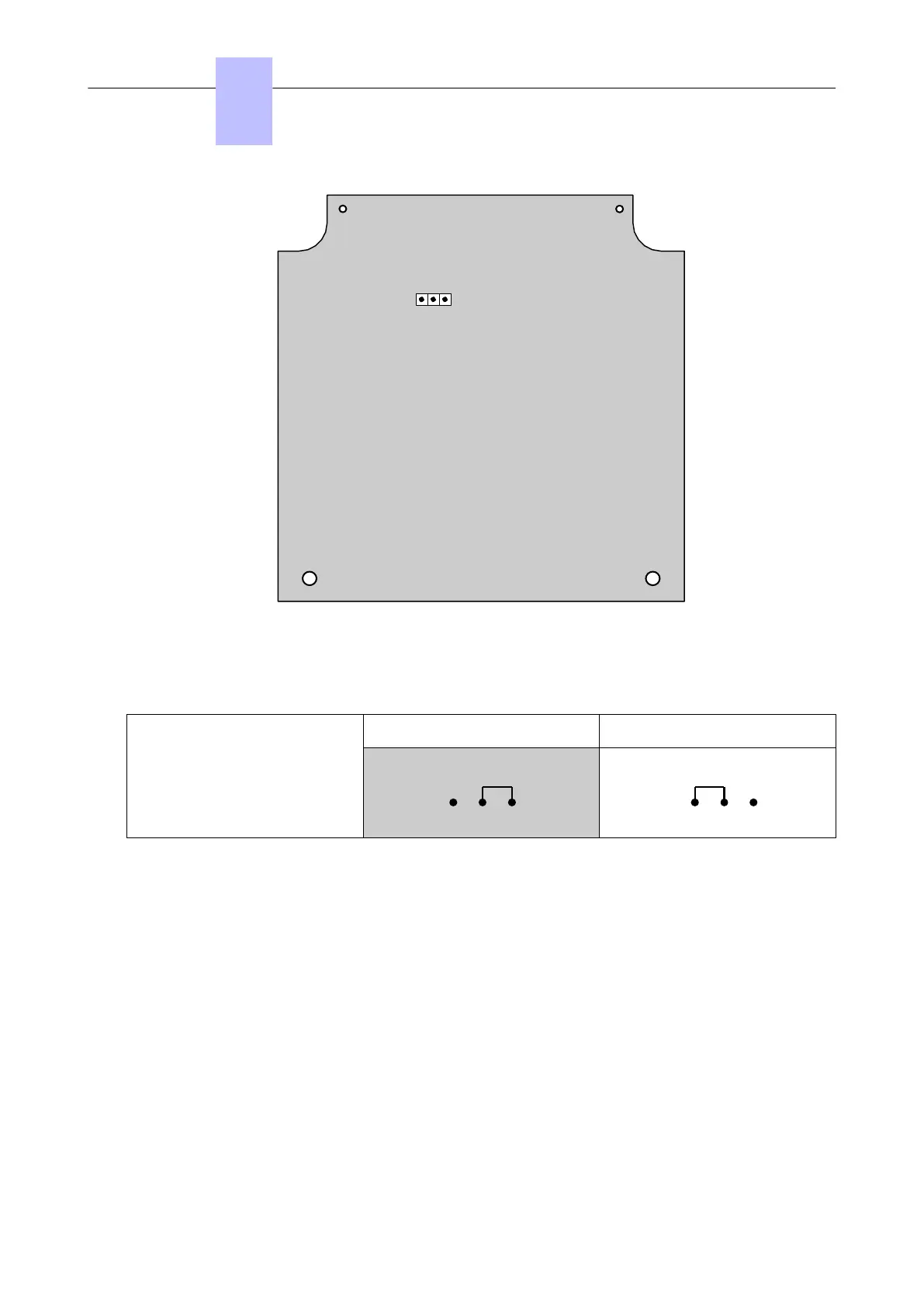

4.11.2.2 Jumper
The jumper in a gray background is factory installed.
Operating mode
Stand aloneAssociated digital set
To configure the AP Interface Module, open the device with the 2 screws, located under the module.
If the jumper is positioned for "stand-alone" operation, an associated set cannot work.
If the jumper is positioned for "associated digital set" operation, an associated set is mandatory, the
Interface Module cannot work without it.
