2. RJ45 socket for analog device connection
3. Power supply socket
Analog
Line Socket
Power Supply Socket
PCX & UA Set
Socket
1
2
8 123457 6
6 1235 4

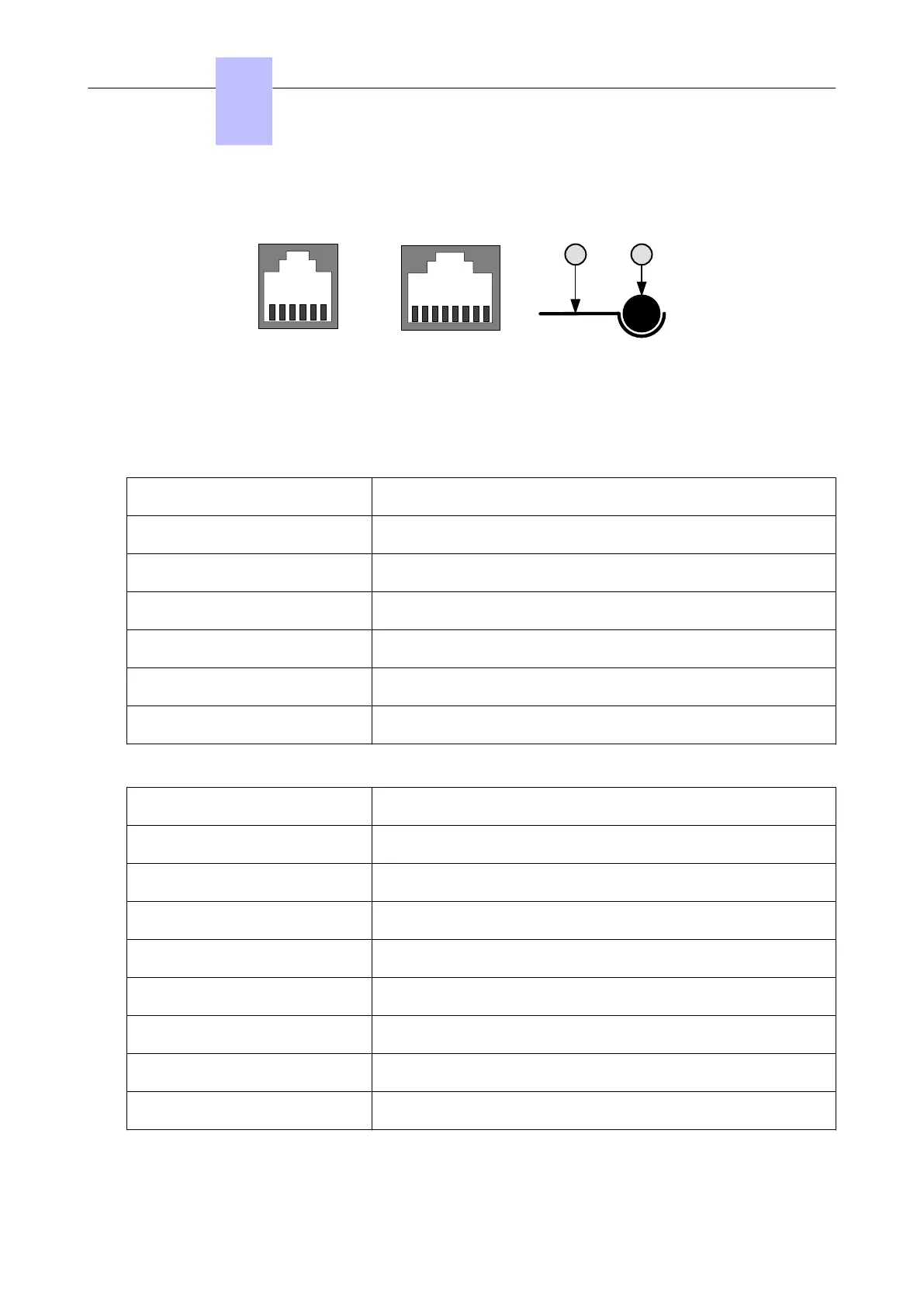

Figure 4.17: Socket Details
PCX and digital set socket:
Pin Description
1 Not used
2 External Ringing 1
3 UA line 1
4 UA line 2
5 External Ringing 2
6 Not used
Analog device socket:
Pin Description
1 Not used
2 Not used
3 Not used
4 Analog line
5 Analog line
6 Not used
7 Not used
8 Not used
Power supply connector:
Chapter
4
Installation and Cabling
