4.3 The Process Section 4 Design and function
4.3 The Process Section
The separation process takes place inside the
rotating separator bowl. The feed and outlet of
process liquid takes place in the in and outlet
unit on top of the separator frame hood.
Inlet and outlet
The inlet and outlet unit consists of the following
parts:
A connection house for pipe connections.
Apipewithaparingdiscandaparingtube
is located inside the connection house. The
pipe has channels for incoming and outgoing
process liquid.
The paring disc and paring tube pump the
cleaned oil and water respectively out of the
bowl.
The paring tube can move radially. During
separation it surfs on the liquid surface. It is
balanced by a spring.
Under certain operating conditions, the paring
tube radial position can be locked in place by
two adjustable screws on the connection house.
The paring disc and tube are located inside and
at the top of the separator bowl.
The inlet and outlet device is held together
against the frame hood by a nut on the end of
the inlet pipe.
Height adjusting rings determi
ne the height
position of the paring disc and
paring tube
relative to the bowl.

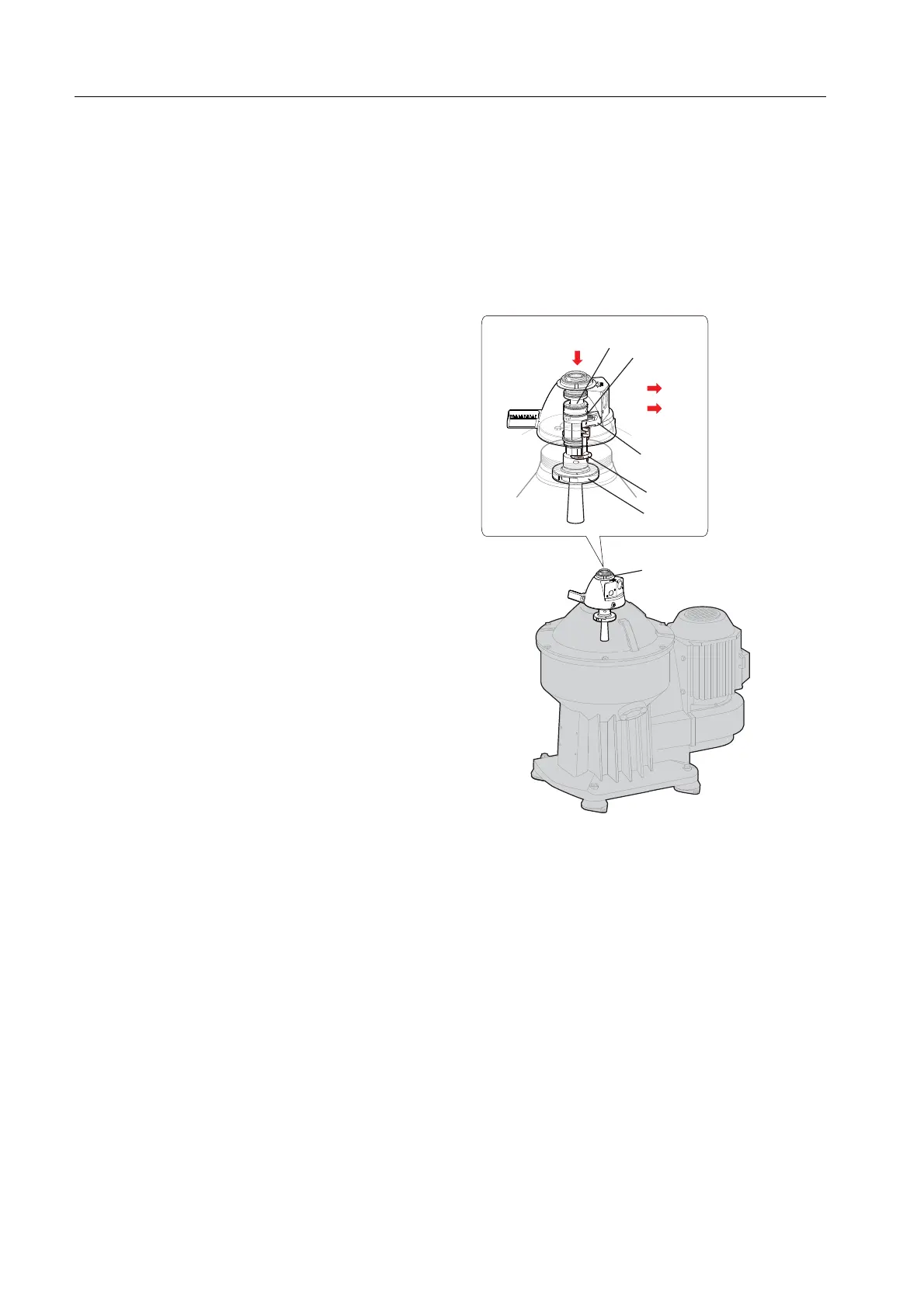

1
2
3
4
5
6
7
8
9
G08861a1
1. Uncleaned oil
2. Inlet pip e
3. Spring
4. Cleaned oil
5. Separated water
6. Arm
7. Paring tube
8. Par ing disc
9. Connecting housing
24
