8.6 Drawings 8 Technical Reference
8.6 Drawings

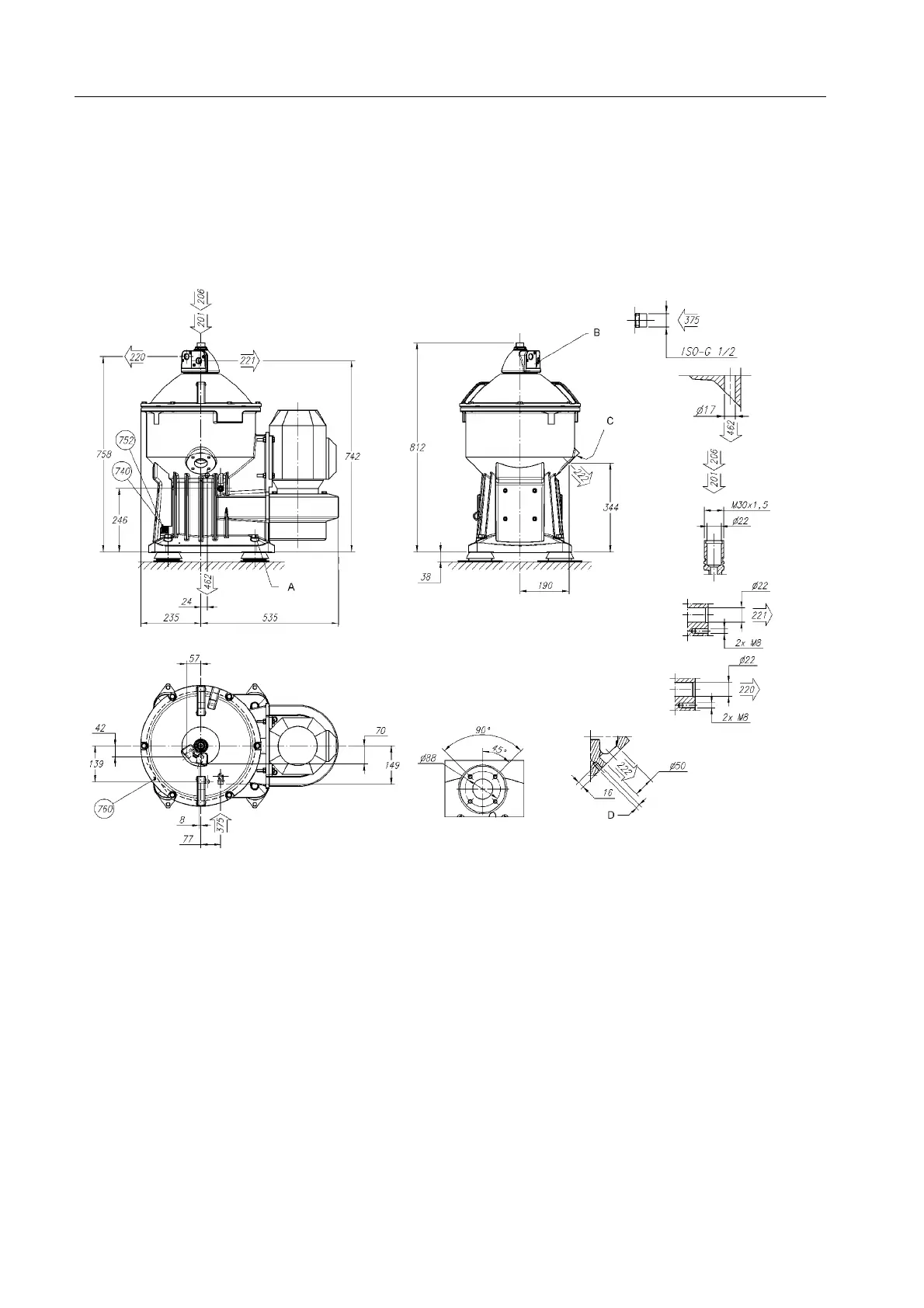

8.6.1 Basic size drawing
Alfa Laval ref. 574283 Rev. 0
G1028611
Connection house, with connections 201, 220
and 221, turnable in 60° steps all around.
All connections to be installed non-loaded and
flexible.
All dimensions
are nominal. Reservation for
individual de
viations due to tolerances.
A. Tightening torque 160 Nm.
B. Maximum horizontal displacement at the inlet
and outlet connections during operation ± 5 mm.
C. Maximum vertical displacement at the sludge
connection during operation ± 2 mm.
D. 4 holes M10
192
