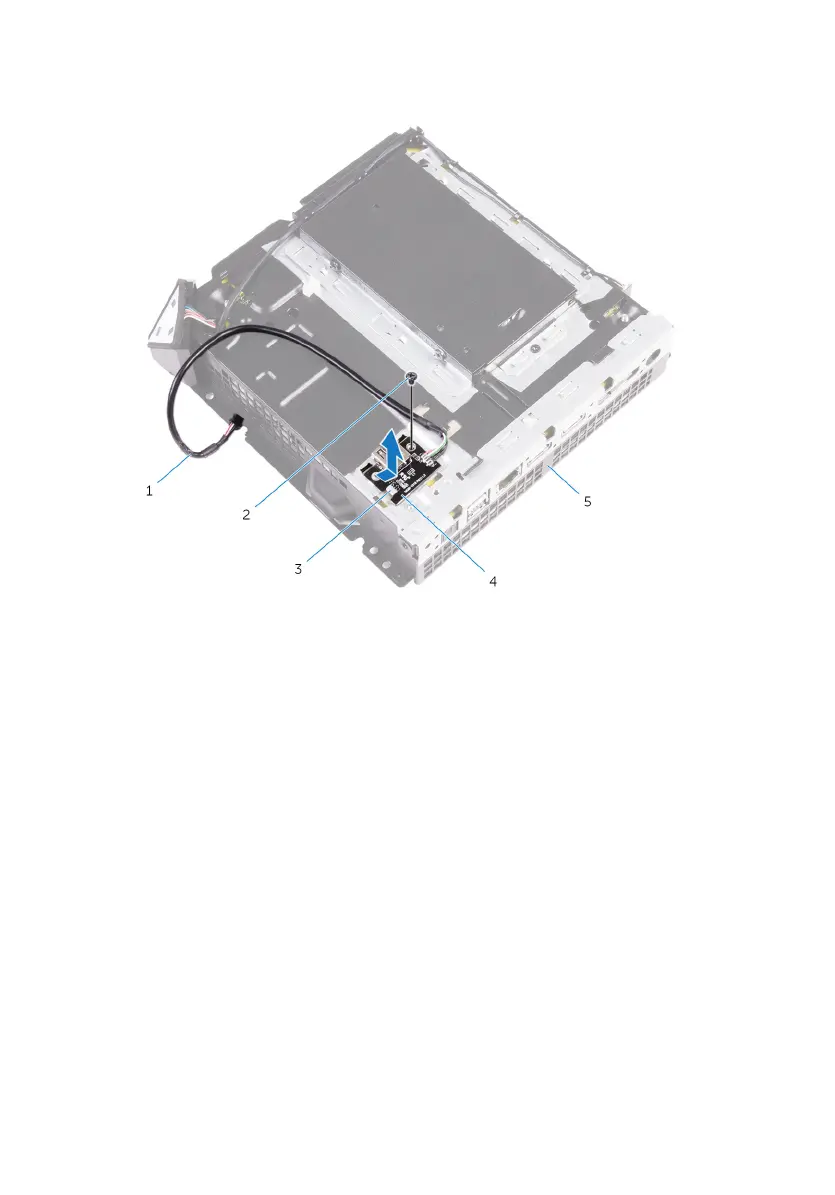

9 Slide and remove the USB port, along with the cable, from under the tab on the

chassis.

1 USB-port cable 2 screw

3 tab 4 USB port

5 chassis
