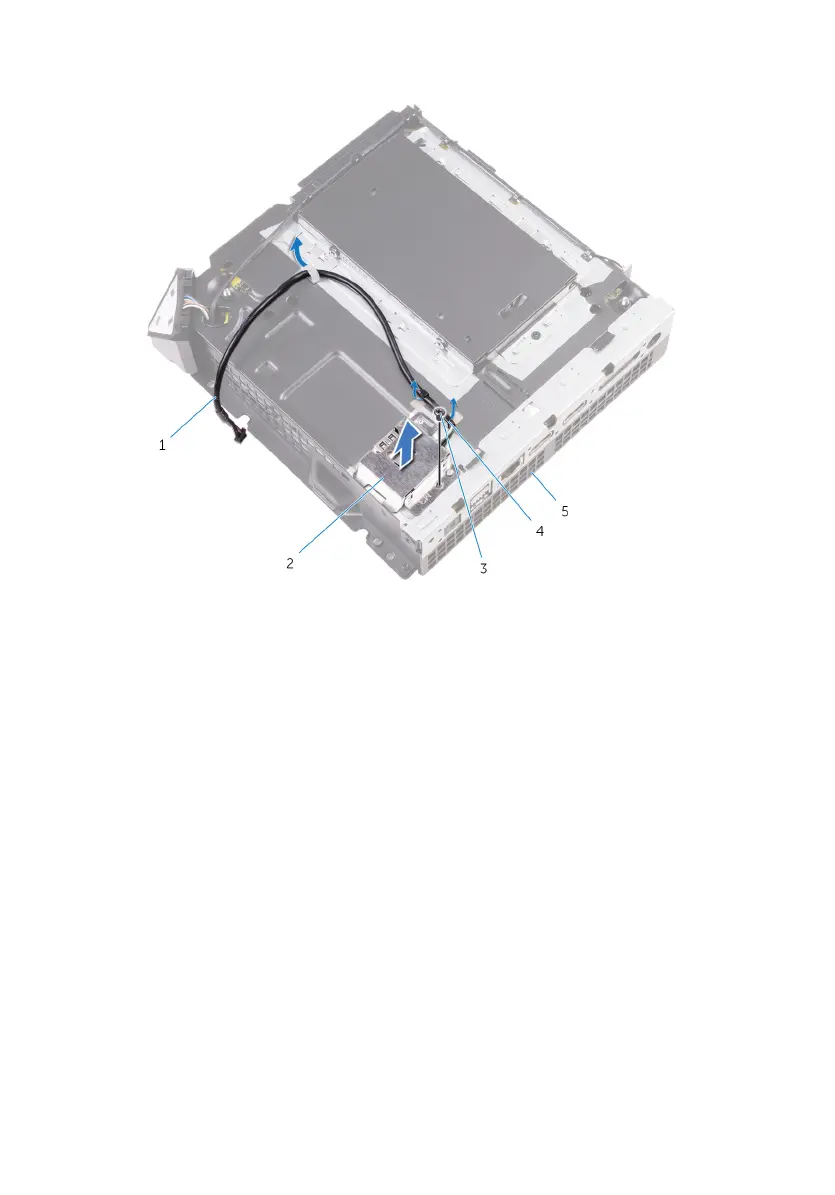

7 Lift the USB-port bracket off the chassis.
1 USB-port cable 2 USB-port bracket
3 screw 4 routing guides
5 chassis
8 Remove the screw that secures the USB port to the chassis.
27
