Allegion Falcon T Series User Manual

Chassis assemblies
Falcon • T-Series service manual • 11

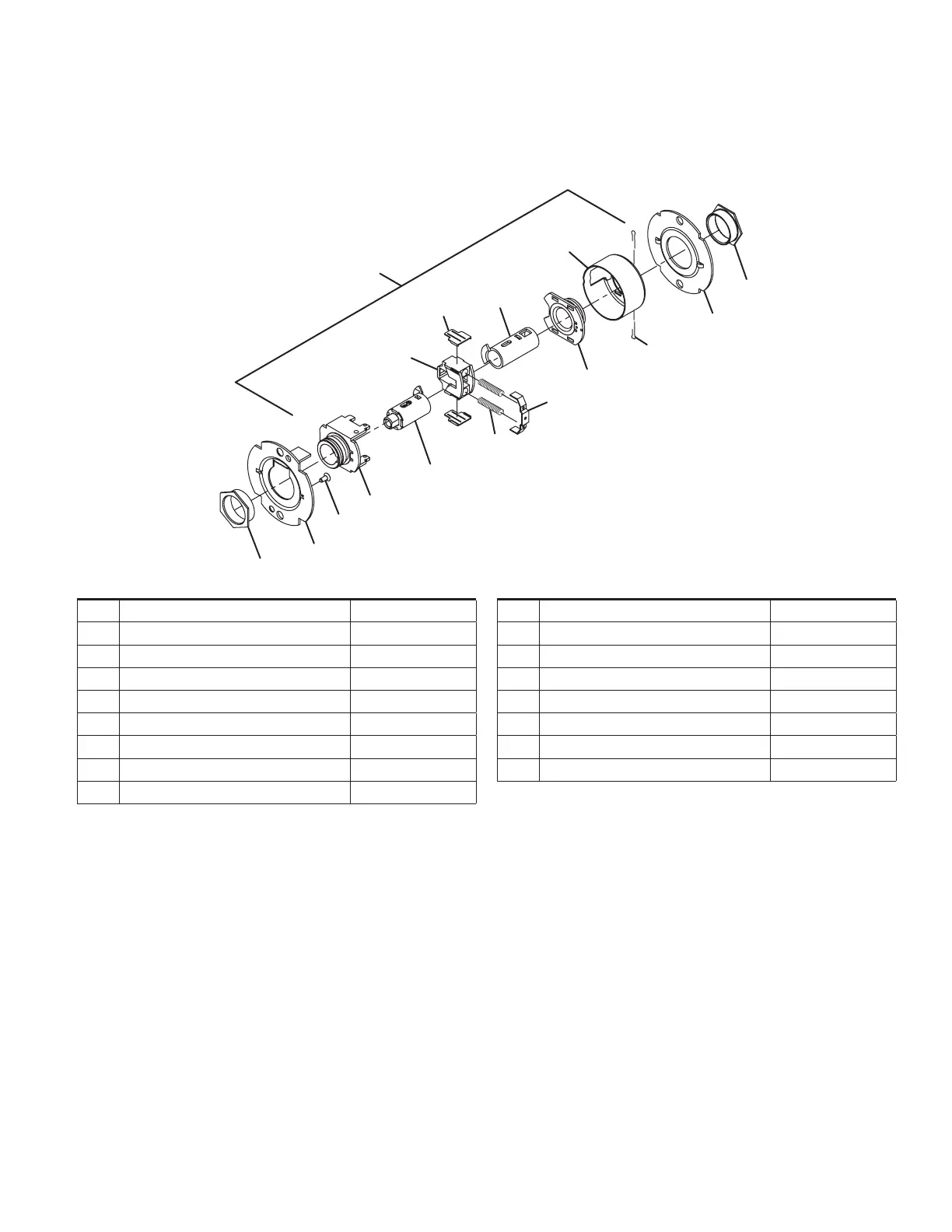

Closet lock
T351
26
6
8 (2)
7
9 (2)
10
13 (2)
12
2
14
11
2
3
5
1
4
No. Description Part number
1 Chassis assembly, T351/T561 A30758-000-00
2 Flanged nut (2) 030726-000-30
3 Outer mounting plate 030712-001-30
4 #8-32 x C\,” self tap screw 031533-006-30
5 Hub and housing assembly A30746-000-00
6 Spindle 030733-000-55
7 Retractor 022106-002-55
8 Retractor insert (2) 022986-001-50
No. Description Part number
9 Retractor spring (2) 022108-001-60
10 Retractor spring retainer 022112-000-30
11 Hub and plate assembly A30747-000-00
12 Housing case 022114-000-30
13 Cotter pin (2) 002893-000-60
14 Inner mounting plate 030712-000-30
26 Key spindle assembly, std A30780-000-30
