Allegion Falcon T Series User Manual

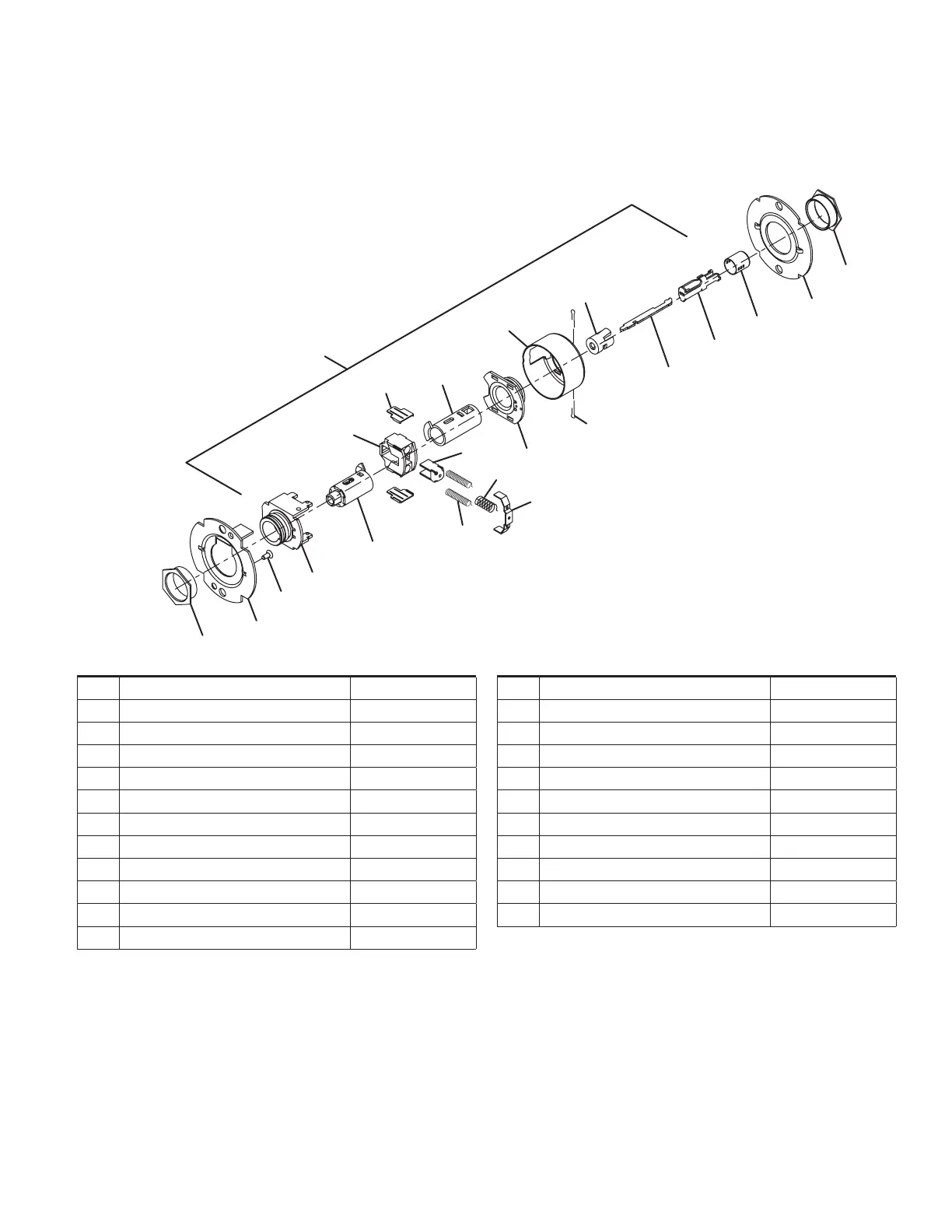

Chassis assemblies
Falcon • T-Series service manual • 25
Dormitory lock
T571
2
10
9 (2)
21
20
8 (2)
7
11
6
22
23
24
2
14
13 (2)
12
25
37
3
5
1
4
No. Description Part number
1 Chassis assembly, T571 A30759-000-00
2 Flanged nut (2) 030726-000-30
3 Outer mounting plate 030712-001-30
4 #8-32 x C\,” Self tap screw 031533-006-30
5 Hub and housing assembly A30746-000-00
6 Spindle 030733-000-55
7 Retractor 022106-002-55
8 Retractor insert (2) 022986-001-50
9 Retractor spring (2) 022108-001-60
10 Retractor spring retainer 022112-000-30
11 Hub and plate assembly A30747-000-00
No. Description Part number
12 Housing case 022114-000-30
13 Cotter pin (2) 002893-000-60
14 Inner mounting plate 030712-000-30
20 Slide catch 022105-000-30
21 Slide catch spring 012107-001-60
22 Push button sleeve 022134-000-50
23 Dogging bar 030722-000-30
24 Push/turn button mount 030731-000-30
25 Push button cap 030728-000*
37 Key spindle assembly, T571, std A30915-000-00
*= Finish or specify nish on all
