46 • Falcon • T-Series service manual

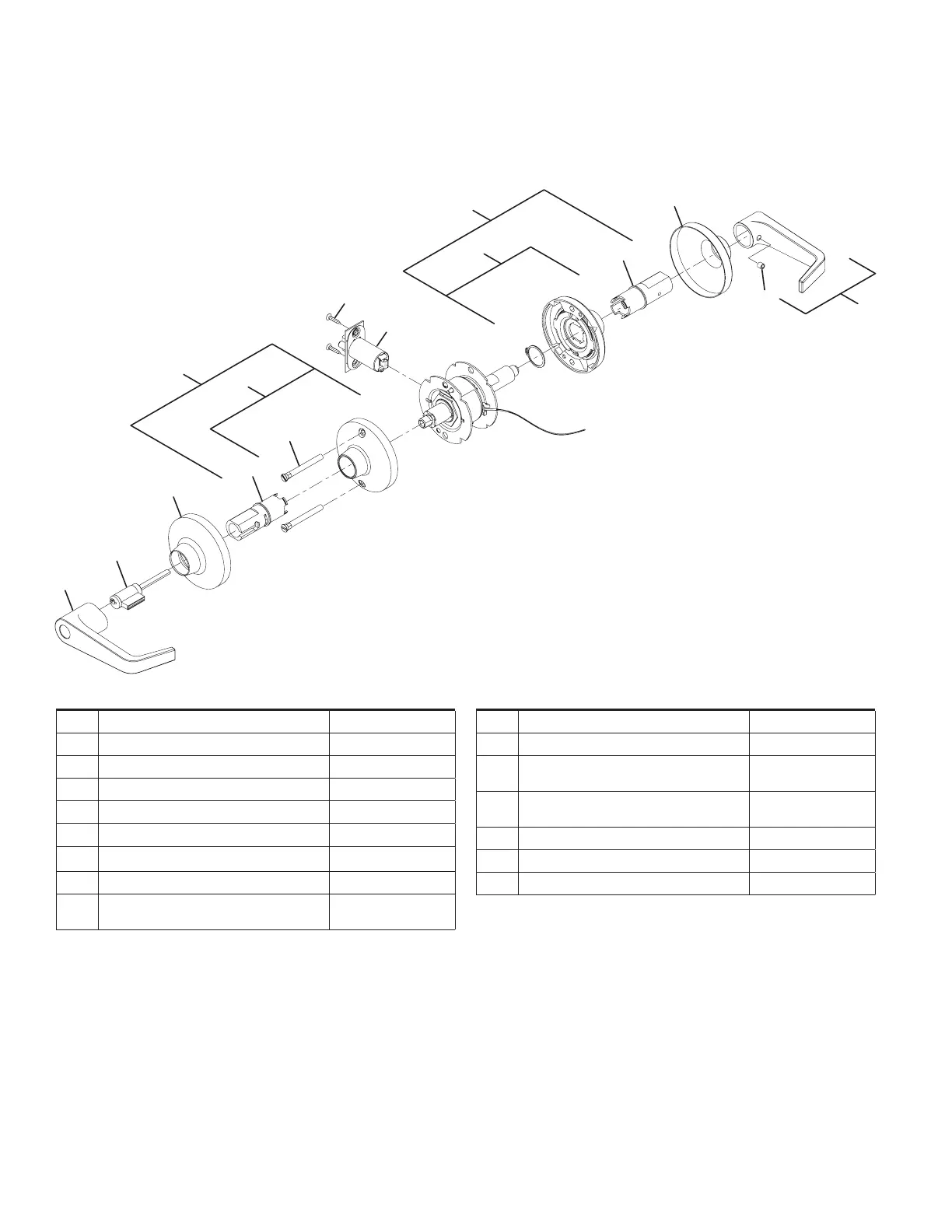

Trim assemblies
Storeroom lock (electrified – fail safe)
T851
KK
H
N
M
E
HH
B
AA
H
K
CC
BB
MM
JJ
NN
Note: Spring Cage components require lubrication. See page 51 for specications.
No. Description Part number
B Open lever, outside see page 52
E Lever set screw 030831-004-30
H Rose 030706-002*
K Mounting post (2) 030715-000-30
M Deadlatch A98535-00D*
N
#8-32 x
C\v” combo screw
024416-012*
AA 6-Pin cylinder A23161-05*
BB Spring cage and spindle, outside, 6-pin
cylinder
A30910-060-00
No. Description Part number
CC Spindle, outside, 6-pin cylinder A30905-060-00
HH T851/T881 lever and set screw
assembly
A31544-00X*
JJ Spring cage and spindle, inside, T851/
T881
A31638-000-00
KK Spindle, inside, T851/T881 031519-000-30
MM Locking spring cage Q330-270
NN Non-locking spring cage Q300-271
