Trim assemblies
Falcon • T-Series service manual • 37

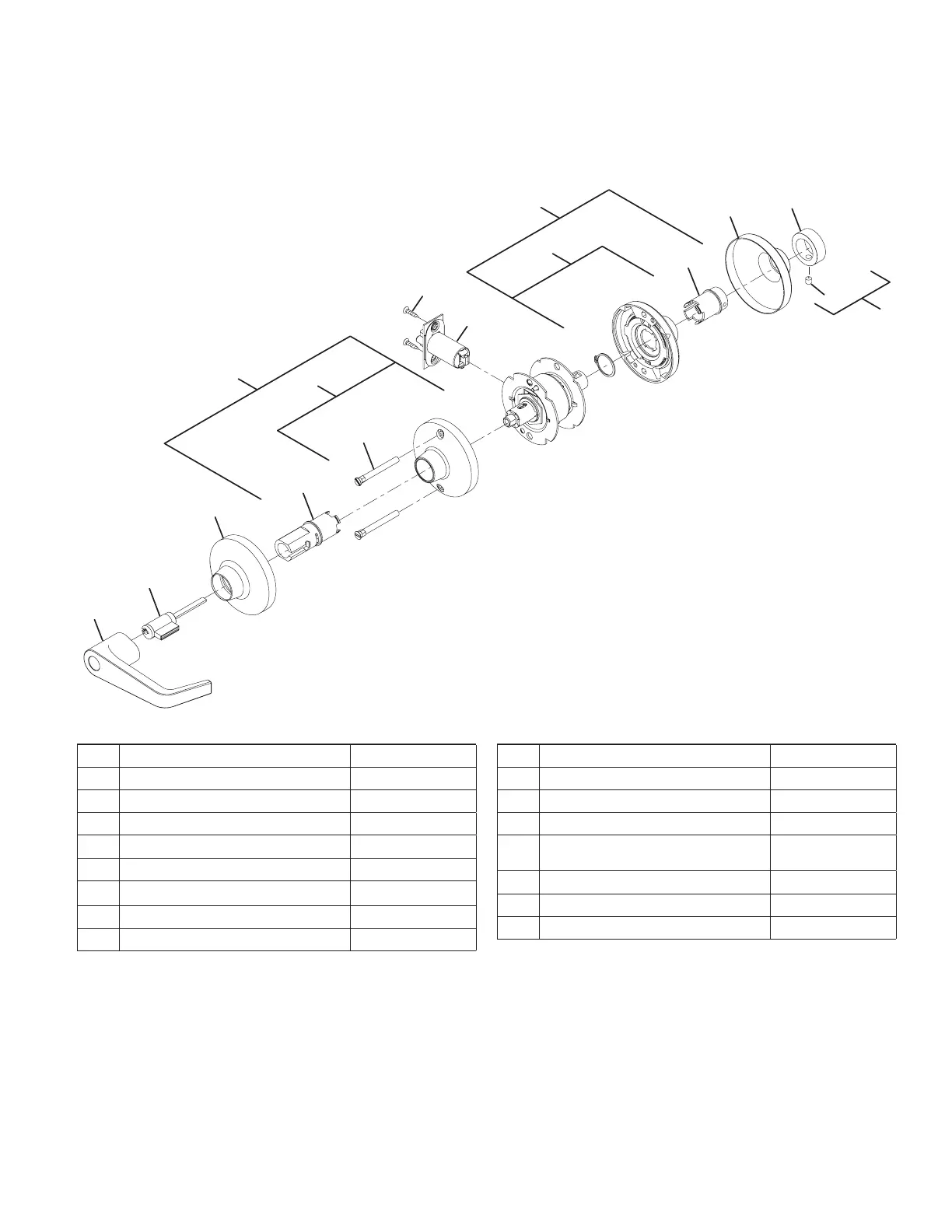

Closet lock
T351
B
AA
Y
E
X
H
H
K
CC
Z
N
M
BB
MM
W
NN
Note: Spring Cage components require lubrication. See page 51 for specications.
No. Description Part number
B Open lever, outside see page 52
E Lever set screw 030831-004-30
H Rose 030706-002*
K Mounting post (2) 030715-000-30
M Deadlatch A98535-00D*
N
#8-32 x
C\v” combo screw
024416-012*
W Spring cage and spindle, inside, T351 A30776-001-00
X Spindle, inside, T351 030703-001-30
No. Description Part number
Y Turn knob, knurled 030738-000*
Z Turn knob and set screw assembly A30788-000*
AA 6-Pin cylinder A23161-05*
BB Spring cage and spindle, outside, 6-pin
cylinder
A30910-060-00
CC Spindle, outside, 6-pin cylinder A30905-060-00
MM Locking spring cage Q330-270
NN Non-locking spring cage Q330-271
