32 • Falcon • T-Series service manual

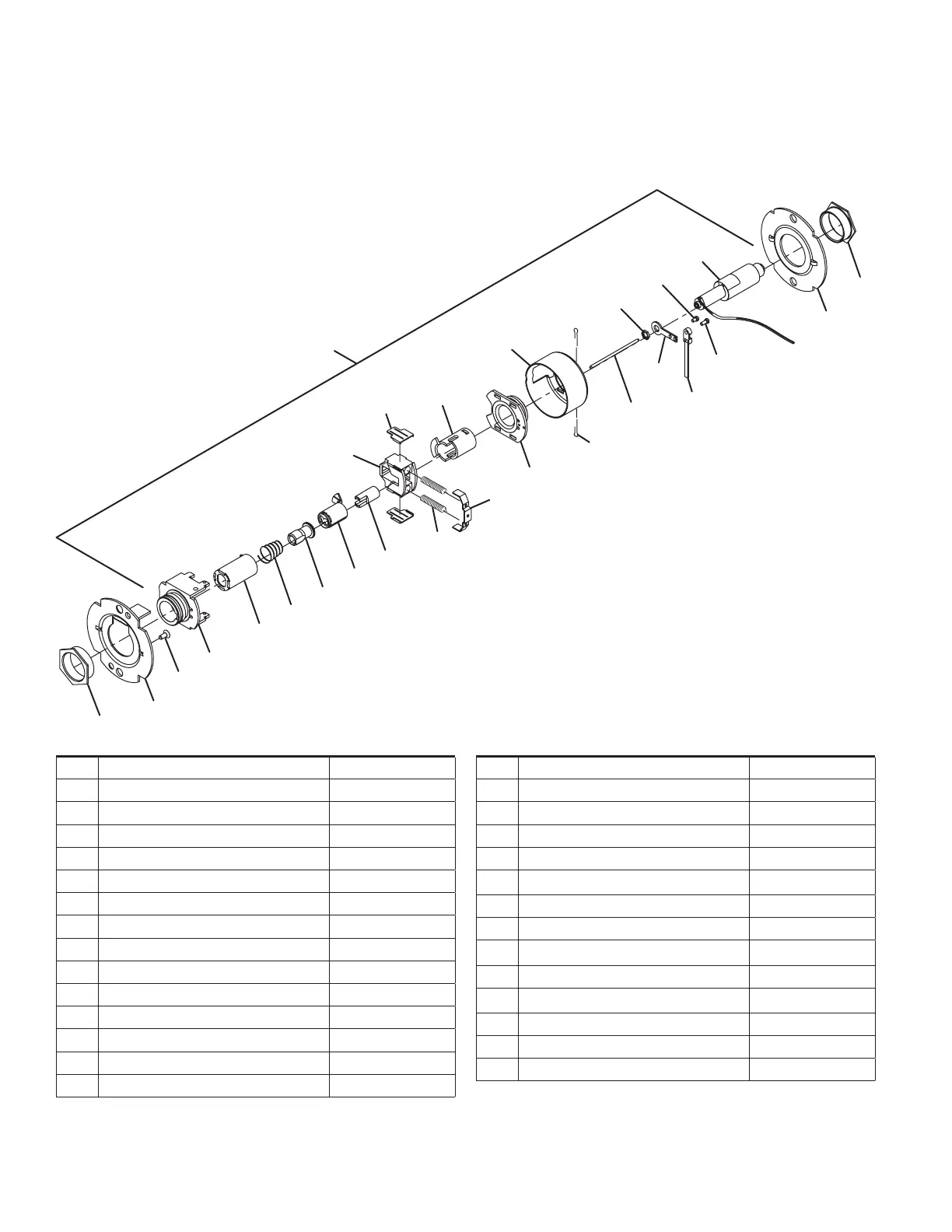

Chassis assemblies
Storeroom lock (electrified – fail secure) – IC
T881
2
3
15
17
31
40
51
8 (2)
7
9 (2)
10
13 (2)
12
41
46
50
14
53
45
47
48
44
42
1
52
5
4
No. Description Part number
1 Chassis assembly, T851 A31517-000-00
2 Flanged Nut 030726-000-30
3 Outer mounting plate 030712-001-30
4 #8-32 x C\,” Self tap screw 031533-006-30
5 Hub and housing assembly A30746-000-00
7 Retractor 022106-002-55
8 Retractor insert (2) 022986-001-50
9 Retractor spring (2) 022108-001-60
10 Retractor spring retainer 022112-000-30
12 Housing case 022114-001-30
13 Cotter pin (2) 002893-000-60
14 Inner mounting plate 030712-000-30
15 Spindle, 1 ear, outer 030732-005-30
17 Clutch driver 030716-001-30
No. Description Part number
18 Key spindle, std 030718-000-30
39 Solenoid, fail safe 031416-000-70
40 Push acutator, electried lock 030711-001-30
41 Hub and plate assembly, electried A31538-001-00
42
Special nut,
Z\v” x 28
031511-000-30
43 Clutch spring, fail safe 030709-001-30
44 Modied cable tie Q001-088-70
45
Fillister head 4-40 x
Z\v screw
031515-004-30
46 Spindle, inside, T851/T881 030733-002-55
47
Fillister head 4-40 x Z\, Screw
Q001-087
48 Solenoid mounting 031514-000-30
49 Push rod, fail safe 031513-001-60
50 Flanged nut, inside, electried 030726-007-30
