Introduction
Falcon • T-Series service manual • 5
Introduction
This manual contains a complete listing of T-Series (Grade 1) cylindrical lock parts and assemblies manufactured by the
Falcon Lock Company. This edition lists components of T-Series locks manufactured aer July 2007.
Exploded views of each lock chassis and trim assemblies are provided with an accompanying chart to identify parts for
replacement purposes. In addition, this manual provides general cylinder information, many auxiliary components of the
T-Series cylindrical locks and installation instructions.
Standard features*
Certications ANSI A156 .2, Series 4000, Grade 1, UL Listed for 3-hour re door.
Latch
1
Z\,” x 2Z\v”, Square corner faceplate, 1” housing diameter, Z\x” throw.
Strike
Z\v” x 4M\,”, ANSI, Square corner, no box.
Backset
2
C\v”
Cylinder 6-Pin solid brass, keyed 5-pin, Falcon G keyway, keyed different (KD)
Door Range
1
C\v” – 2Z\,” standard
Keys Two nickel silver cut keys per lock, keyed 5-pin, Falcon G keyway
* Locks are furnished with standard features unless otherwise specied.

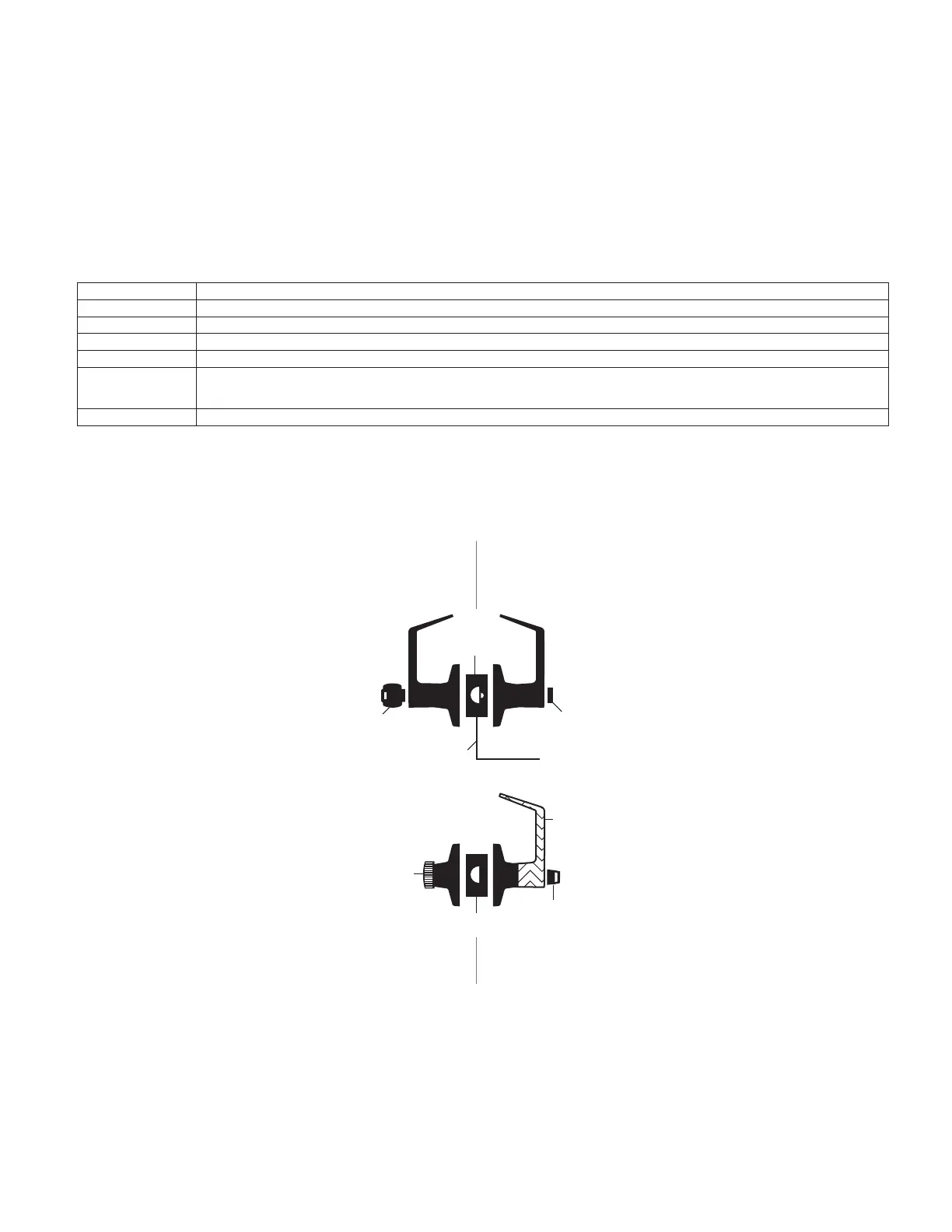

Lock assembly drawing index
The lock assembly drawing index provides visual representations and textual descriptions of available functions. Page
numbers for full trim and chassis drawings are referenced.
Outside Inside
Key
Push button
Electrified
Deadlatch
Springlatch
Tu rn/push button
Knurled Knob
Fixed Lever
