Allegion Falcon T Series User Manual

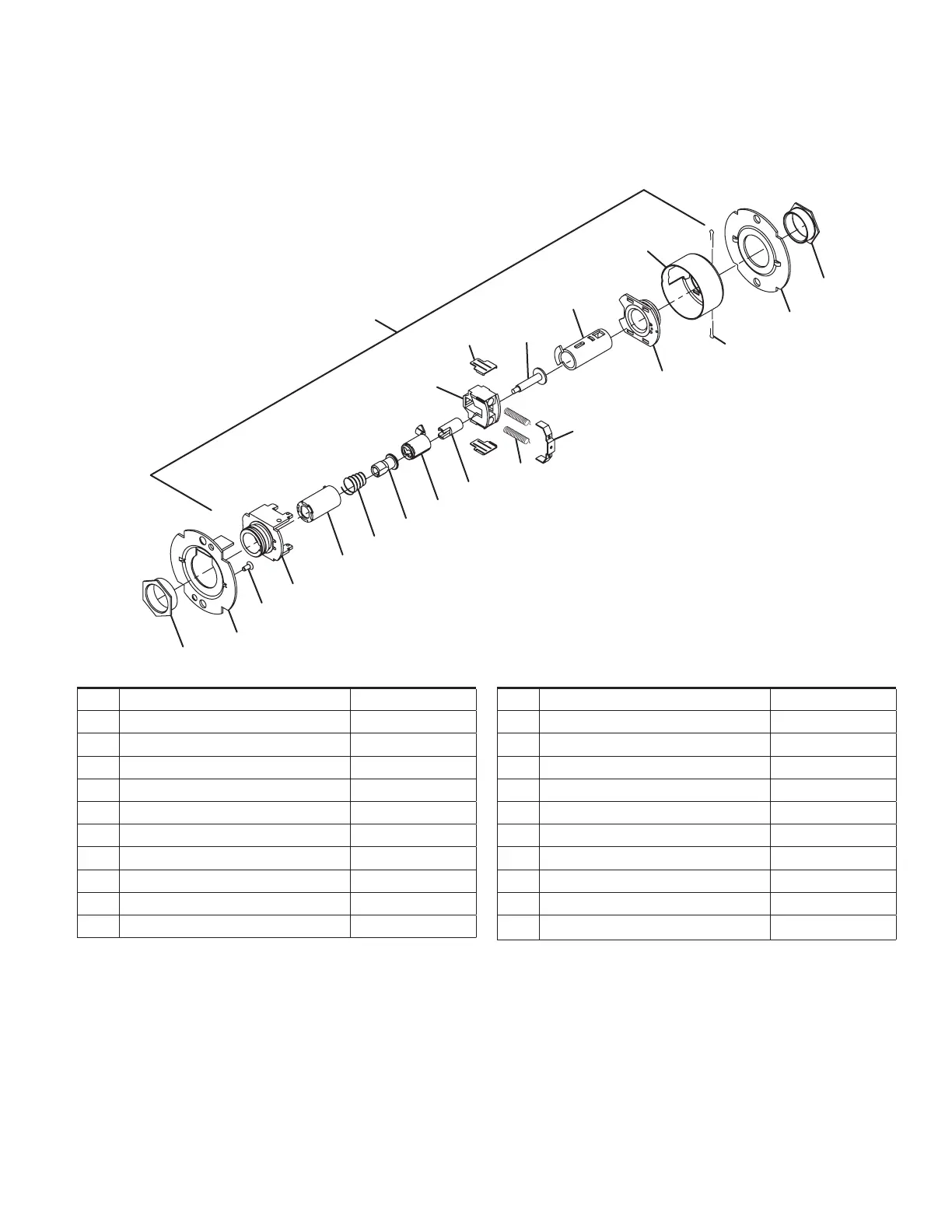

Chassis assemblies
Falcon • T-Series service manual • 13
Classroom security lock
T381
30
2
3
5
15
17
18
19
16
8 (2)
7
9 (2)
10
2
14
13 (2)
12
11
28
1
4
No. Description Part number
1 Chassis assembly, T381 A30767-000-00
2 Flanged nut (2) 030726-000-30
3 Outer mounting plate 030712-001-30
4 #8-32 x C\,” self tap screw 031533-006-30
5 Hub and housing assembly A30746-000-00
7 Retractor 022106-002-55
8 Retractor insert (2) 022986-001-50
9 Retractor spring (2) 022108-001-60
10 Retractor spring retainer 022112-000-30
11 Hub and plate assembly A30747-000-00
No. Description Part number
12 Housing case 022114-000-30
13 Cotter pin (2) 002893-000-60
14 Inner mounting plate 030712-000-30
15 Spindle, 1 ear, outer 030732-005-30
16 Clutch spring 030709-000-60
17 Clutch driver 030716-001-30
18 Key spindle std 030718-000-30
19 Push actuator 030711-000-30
28 IS key spindle assembly, std A30913-000-00
30 Connecting rod 030734-000-30
