38 • Falcon • T-Series service manual
Trim assemblies

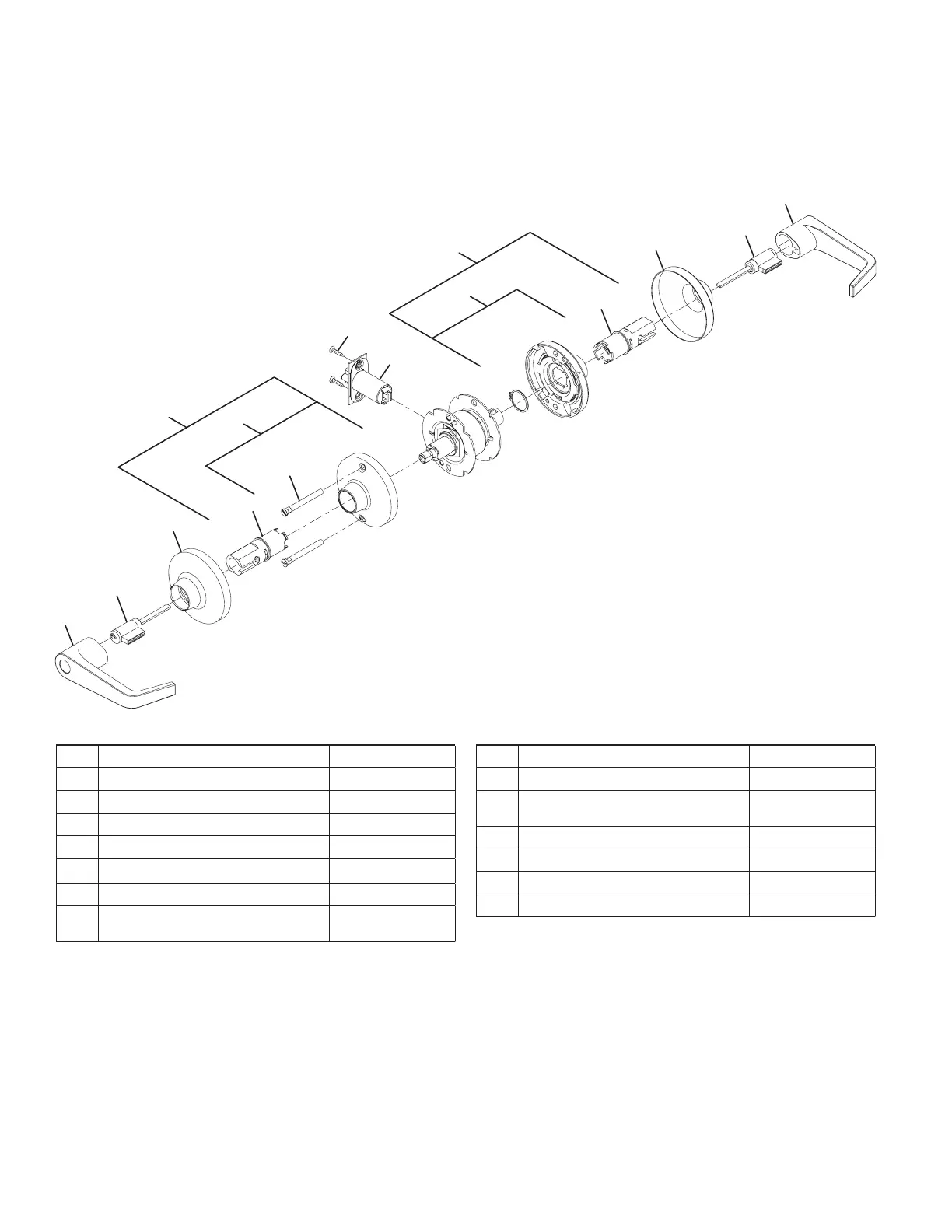

Classroom security lock
T381
H
PP
B
AA
H
K
CC
EE
N
M
BB
MM
DD
NN
B
Note: Spring Cage components require lubrication. See page 51 for specications.
No. Description Part number
B Open lever, outside see page 52
H Rose 030706-002*
K Mounting post (2) 030715-000-30
M Deadlatch A98535-00D*
N
#8-32 x
C\v” combo screw
024416-012*
AA 6-Pin Cylinder A23161-05*
BB Spring cage and spindle, outside, 6-pin
cylinder
A30910-060-00
No. Description Part number
CC Spindle, outside, 6-pin cylinder A30905-060-00
DD Spring cage and spindle, inside, 6-pin
cylinder
A30779-060-00
EE Spindle, inside, 6-pin cylinder A30906-060-00
MM Locking spring cage Q330-270
NN Non-locking spring cage Q330-271
PP 6-Pin Cylinder A23161-06*
*= Finish or Specify Finish on All
