34 • Falcon • T-Series service manual

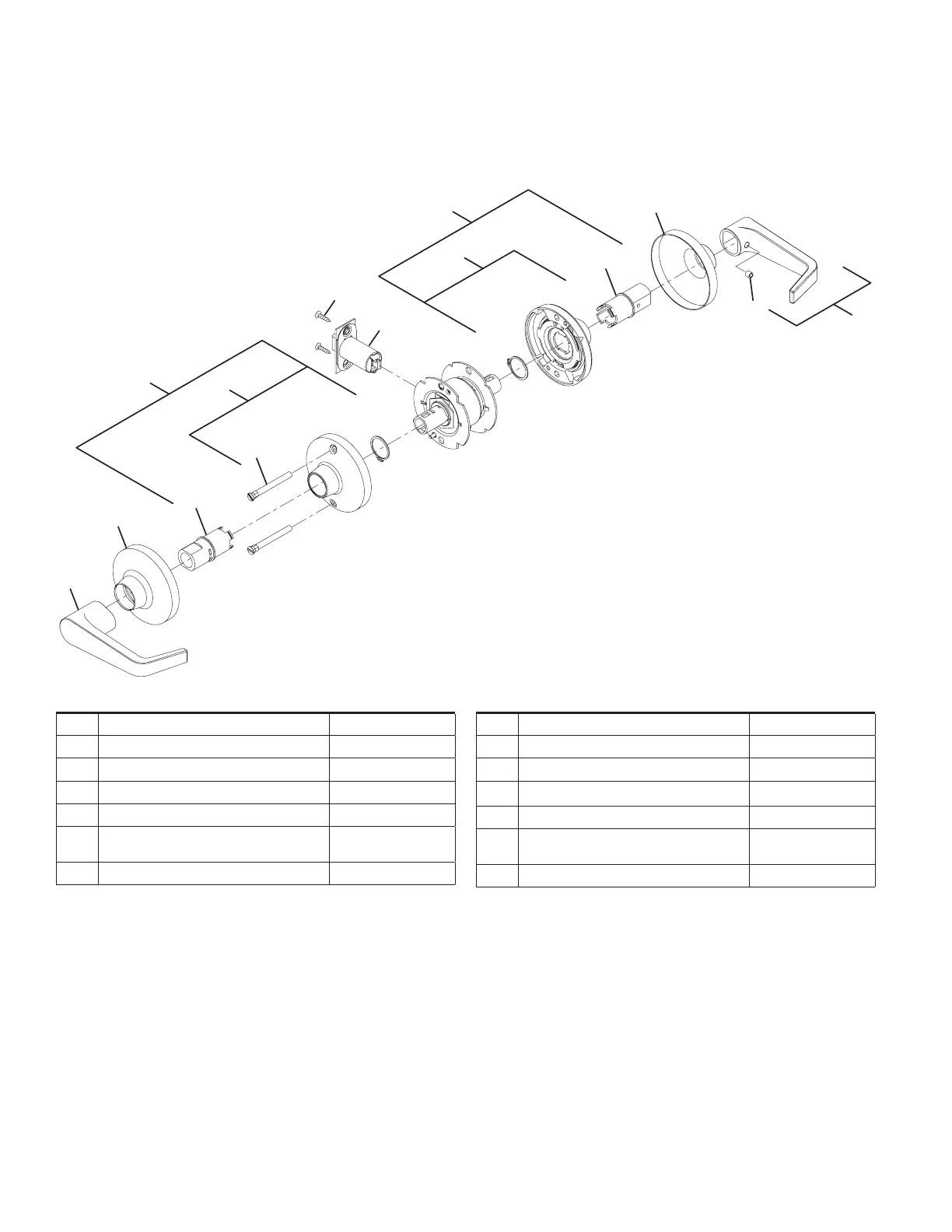

Trim assemblies
Passage latchset
T101
A
H
H
E
O
J
K
I
N
L
F
NN
P
NN
Note: spring cage components require lubrication. See page 51 for specications.
No. Description Part number
A Closed lever, outside see page 52
E Lever set screw 030831-004-30
F Closed lever and set screw assembly A30753-00X*
H Rose 030706-002*
I Spring cage and spindle, outside,
passage
A30749-000-00
J Spindle, outside, passage A30906-000-00
No. Description Part number
K Mounting post (2) 030715-000-30
L Spring latch A98535-000*
N
#8-32 x
C\v” combo screw
024416-012*
O Spindle, inside, passage/button 030703-000-30
P Spring cage and spindle, inside,
passage/button
A30750-000-00
NN Non-locking spring cage Q330-271
