Allegion Falcon T Series User Manual

Trim assemblies
Falcon • T-Series service manual • 35

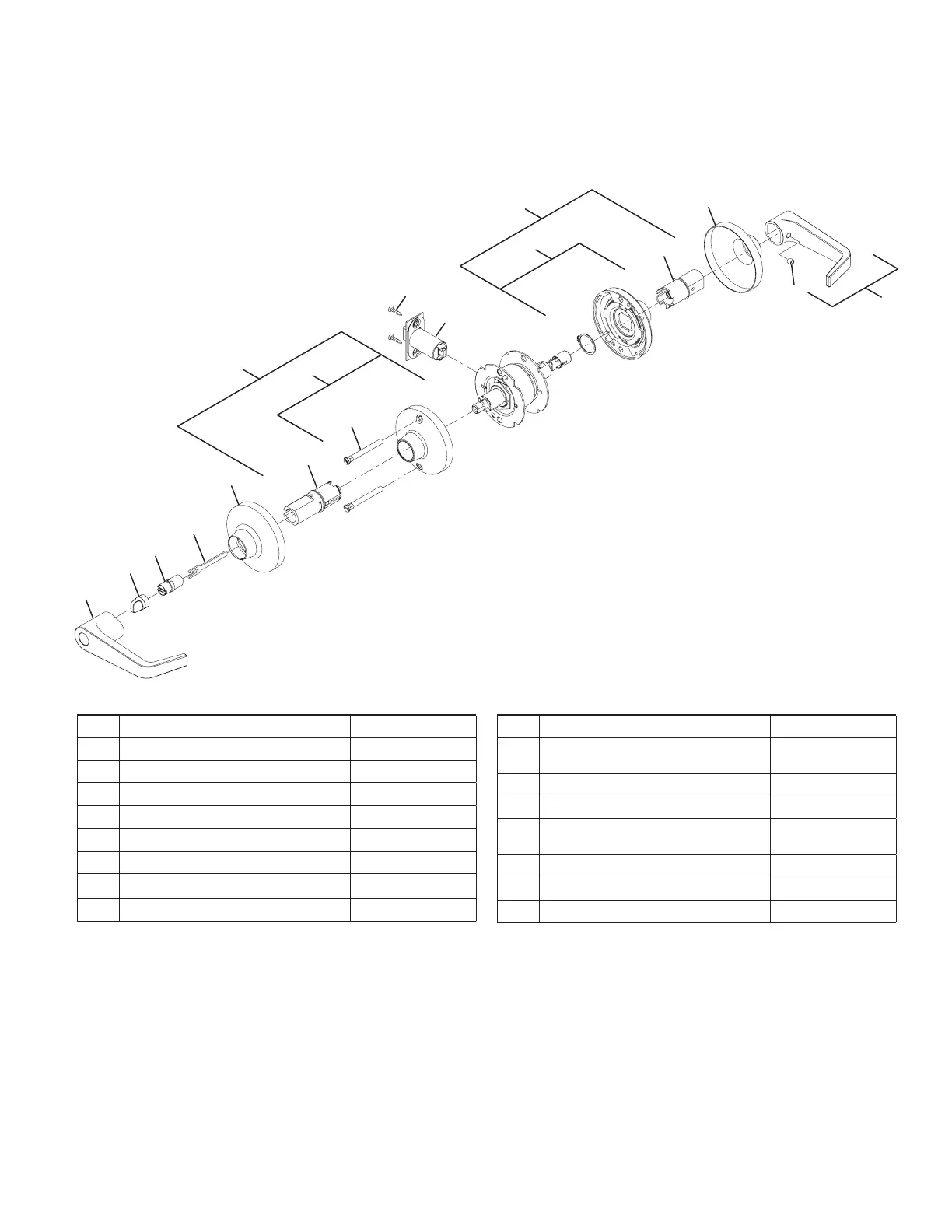

Privacy hospital lock
T291
H
V
K
B
LL
S
T
N
L
H
E
O
G
U
NN
P
NN
Note: spring cage components require lubrication. See page 51 for specications.
No. Description Part number
B Open lever, outside see page 52
E Lever set screw 030831-004-30
G Open lever and set screw assembly A30753-01X*
H Rose 030706-002*
K Mounting post (2) 030715-000-30
L Spring latch A98535-000*
N
#8-32 x
C\v” combo screw
024416-012*
O Spindle, inside, passage/button 030703-000-30
No. Description Part number
P Spring cage and spindle, inside,
passage/button
A30750-000-00
S Outer button mount 030729-000-70
T Tailpiece, 6-pin IC 030739-000-30
U Spring cage and spindle, outside,
button
A30796-000-00
V Spindle, outside, button A30905-000-00
LL Button, T291, outside Q033-044*
NN Non-locking spring cage Q330-271
*= Finish or specify nish on all
