Allegion Falcon T Series User Manual

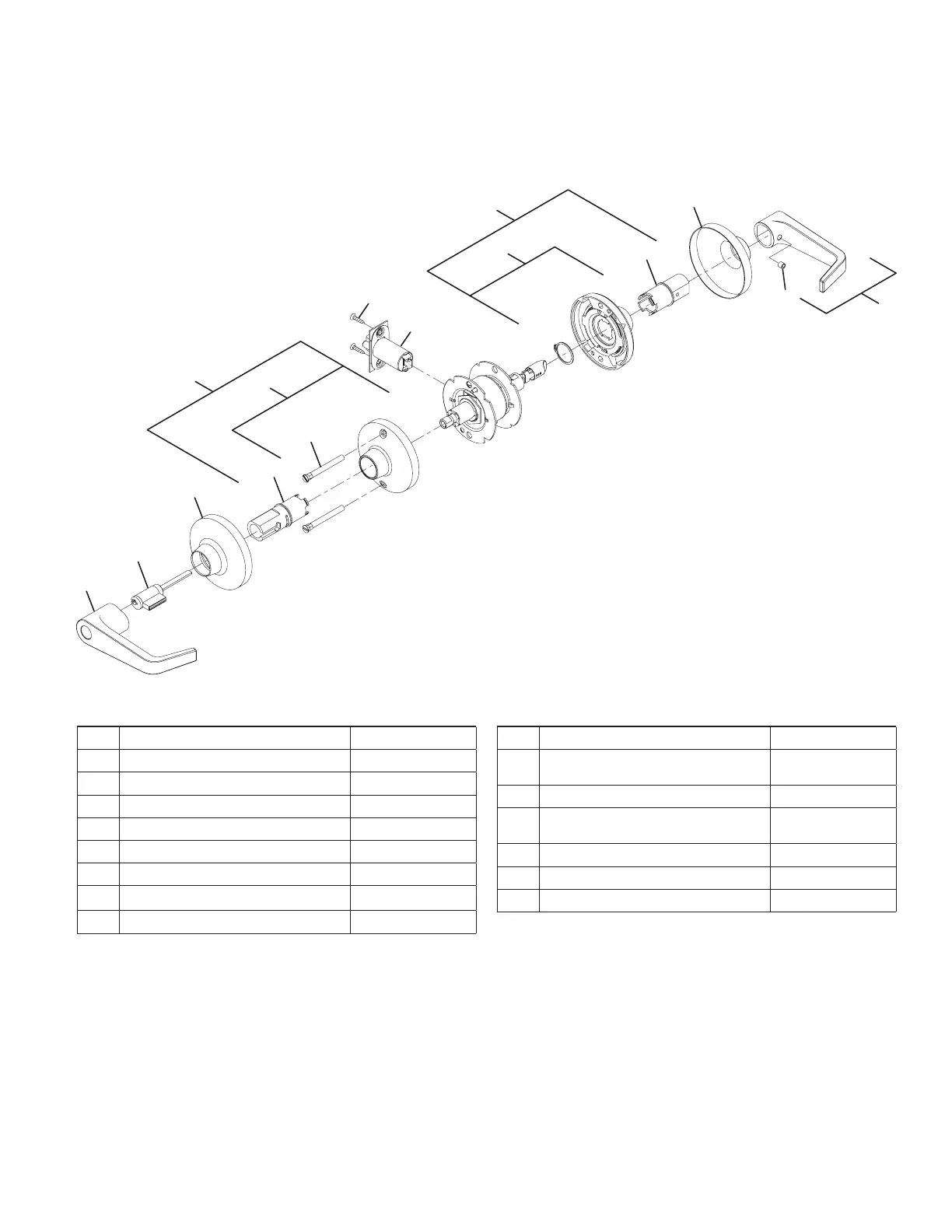

Trim assemblies
Falcon • T-Series service manual • 41
Entry/oce lock
T511
N
M
B
AA
H
K
CC
H
E
O
G
BB
MM
P
NN
Note: Spring Cage components require lubrication. See page 51 for specications.
No. Description Part number
B Open lever, outside see page 52
E Lever set screw 030831-004-30
G Open lever and set screw assembly A30753-01X*
H Rose 030706-002*
K Mounting post (2) 030715-000-30
M Deadlatch A98535-00D*
N
#8-32 x
C\v” combo screw
024416-012*
O Spindle, inside, passage/button 030703-000-30
No. Description Part number
P Spring cage and spindle, inside,
passage/button
A30750-000-00
AA 6-Pin cylinder A23161-05*
BB Spring cage and spindle, outside, 6-pin
cylinder
A30910-060-00
CC Spindle, 6-pin cylinder, outside A30905-060-00
MM Locking spring cage Q330-270
NN Non-locking spring cage Q330-271
*= Finish or Specify Finish on All
