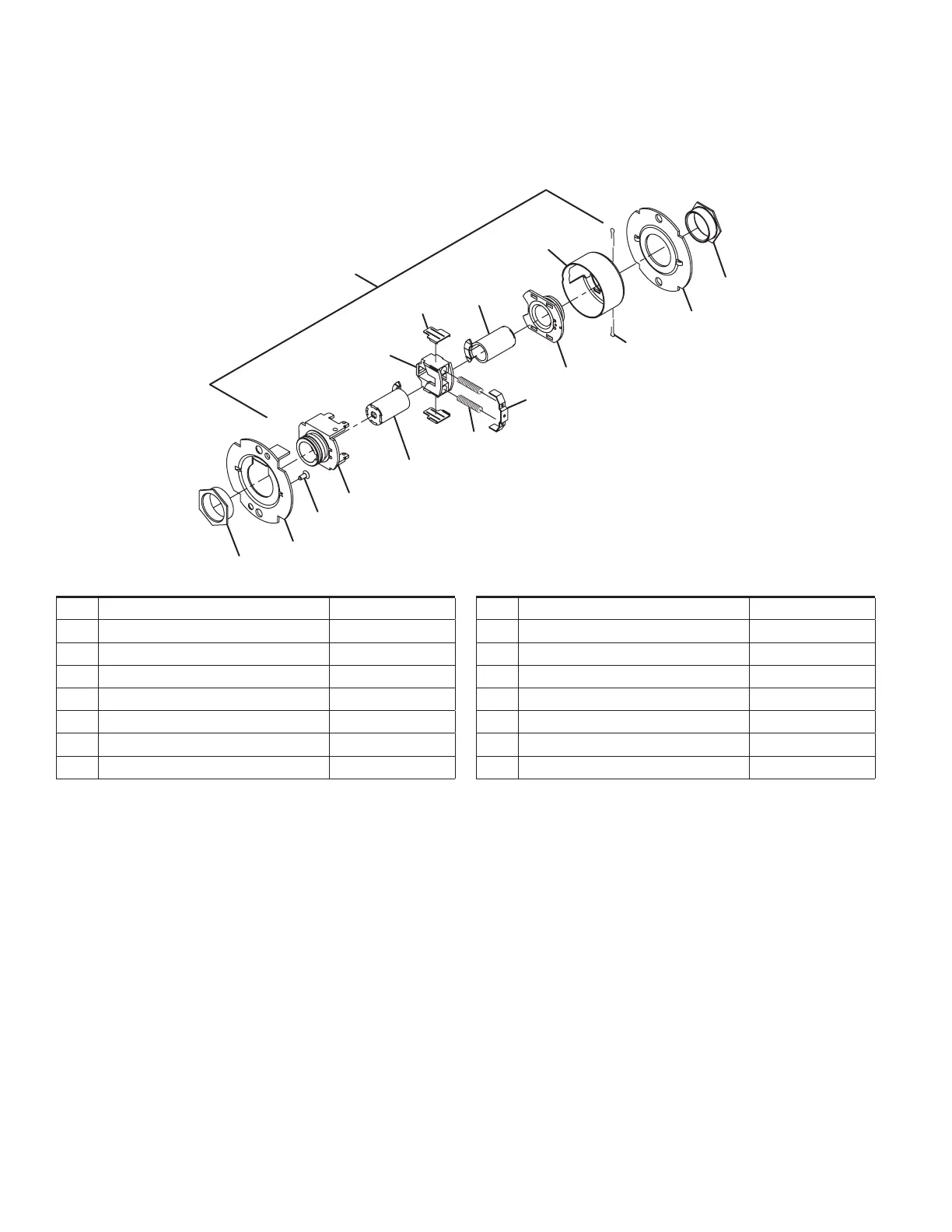

16 • Falcon • T-Series service manual
Chassis assemblies
Asylum lock – IC
T411
33
33
8 (2)
7
9 (2)
10
13 (2)
2
14
11
2
3
5
12
1
4
No. Description Part number
1 Chassis assembly, T411-IC A30769-001-00
2 Flanged nut (2) 030726-000-30
3 Outer mounting plate 030712-001-30
4 #8-32 x C\,” Self tap screw 031533-006-30
5 Hub and housing assembly A30746-000-00
7 Retractor 022106-002-55
8 Retractor insert (2) 022986-001-50
No. Description Part number
9 Retractor spring (2) 022108-001-60
10 Retractor spring retainer 022112-000-30
11 Hub and plate assembly A30747-000-00
12 Housing case 022114-000-30
13 Cotter pin (2) 002893-000-60
14 Inner mounting plate 030712-000-30
33 Spindle, 2 ear, IC 030732-001-30
