Allegion Interflex IF-171 User Manual

The Electronic IF-171 Door Handle 7
Event logging can be enabled or disabled for each door handle individually, to be able to comply with
specific data privacy guidelines.

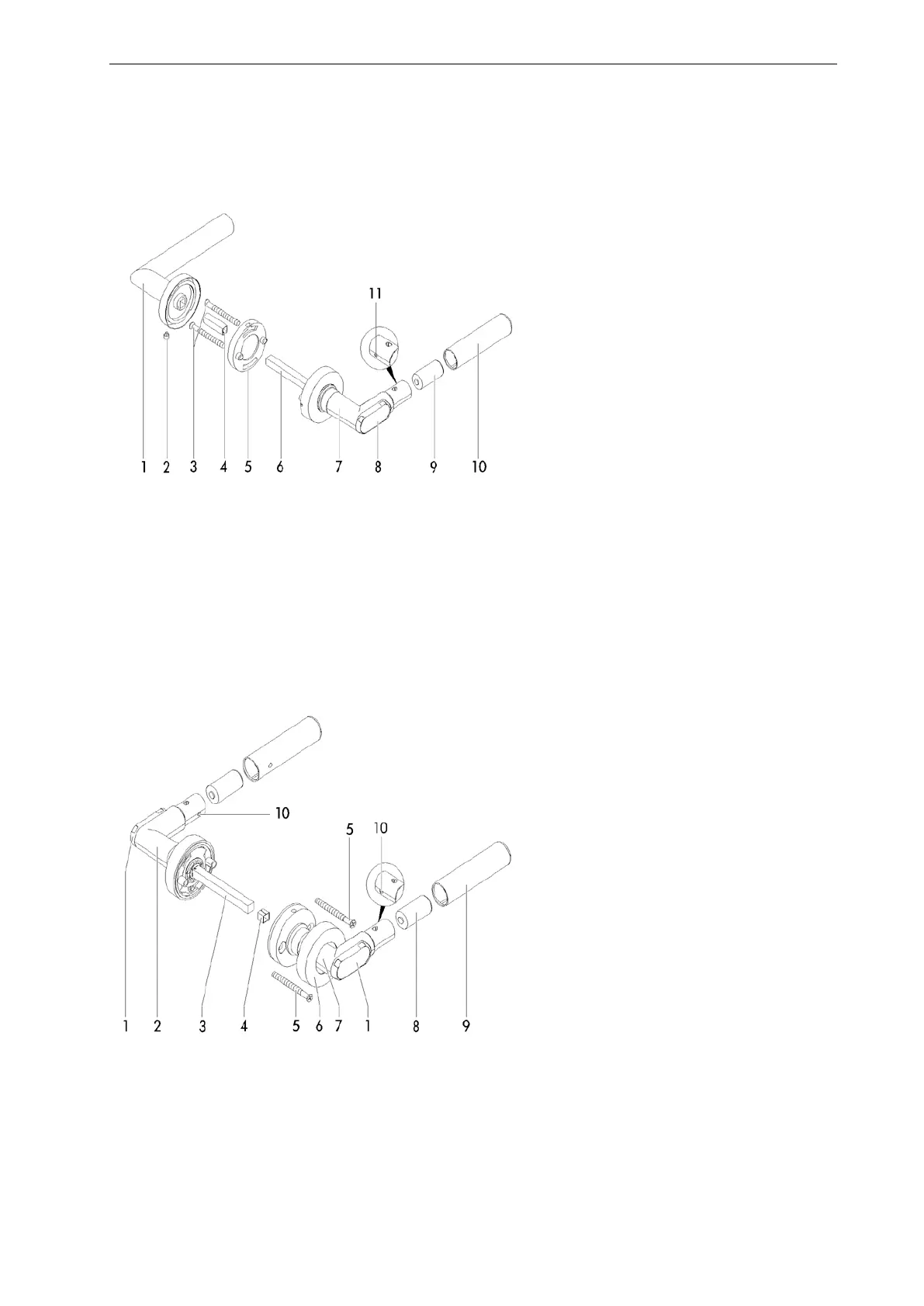

2.1.5 Design
Design for Door with Electronic Authorization on One Side
1 Mechanical door handle 7 Electronic door handle
2 Locking screw 8 Reading unit
3 Mounting screw 9 Battery
4 Adapter sleeve (only for 7-mm-square
pin)
10 Gripping sleeve
5 Handle holder (with bayonet lock) 11 Grub screw for gripping sleeve
6 Square pin
Design for Door with Electronic Authorization on Both Sides
1 Reading unit 6 Rosette cover
2 Electronic door handle (outside) 7 Electronic door handle (inside)
3
Square pin
8
Battery
4 Adapter sleeve
(only for 7 mm-square pin)
9 Gripping sleeve
5 Mounting screw 10 Grub screw for gripping sleeve
