12 The Electronic IF-171 Door Handle
2.2.5 Design for Door with Electronic Authorization on Both Sides

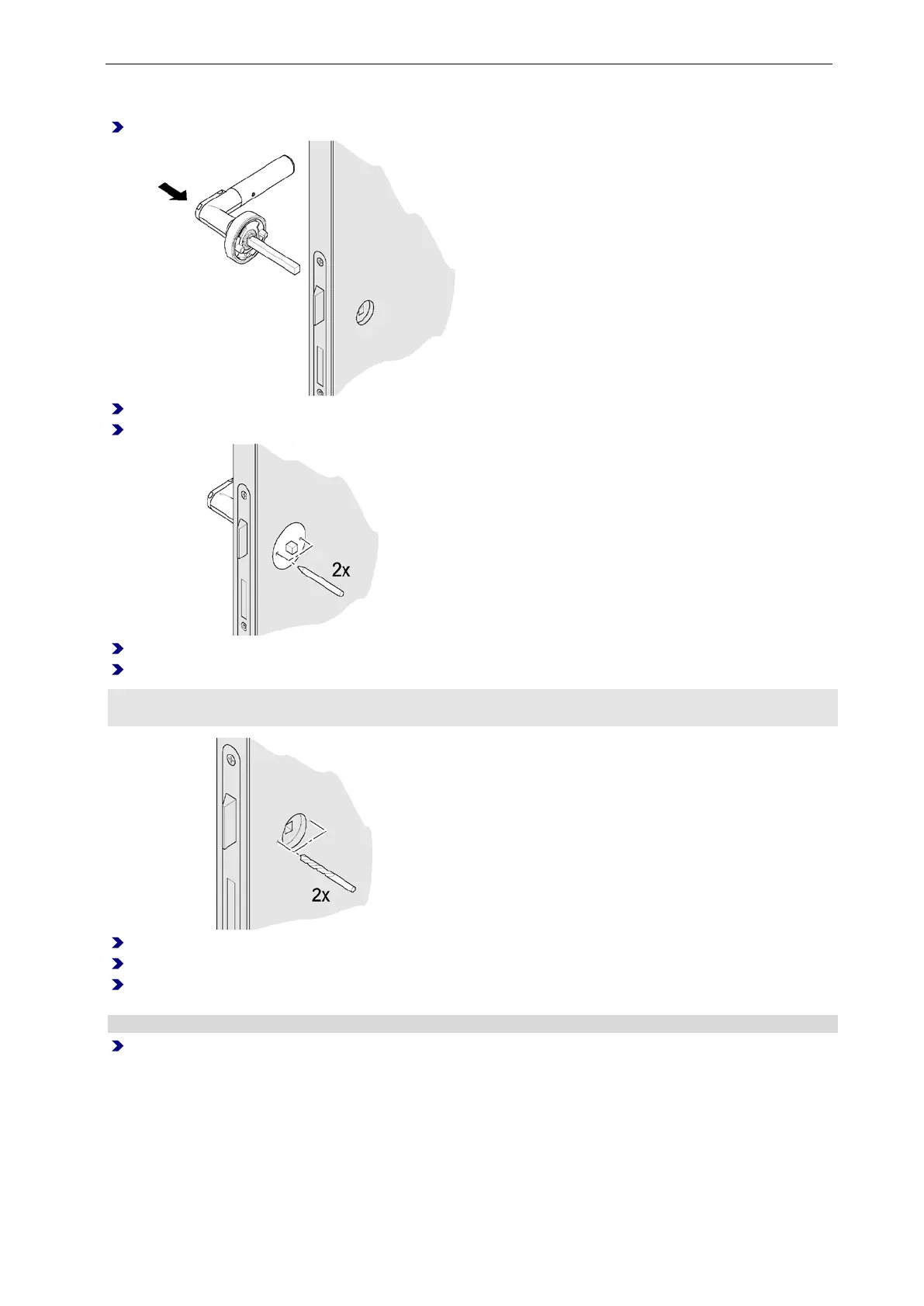

Insert the square pin of the outer electronic door handle into the square nut of the lock.
Slip drilling template onto the square pin. Align the drilling template horizontally.
Mark the holes.
Remove the square pin.
Drill holes of diameter 8 - 8.5 mm at the marked positions.
Do not drill into or through the lock housing!
Insert the square pin of the electronic door handle back into the square nut of the lock.
If necessary, place the adapter sleeve supplied on the square pin.
Check how far the square pin protrudes from the door panel. If necessary, shorten the square pin so
that you can insert the inner electronic door handle completely.
The square pin should protrude 6 mm ± 0.5 mm over the door panel, to ensure proper functioning.
Pull the rosette cover of the inner electronic door handle back as far as possible.
