The Electronic IF-171 Door Handle 13

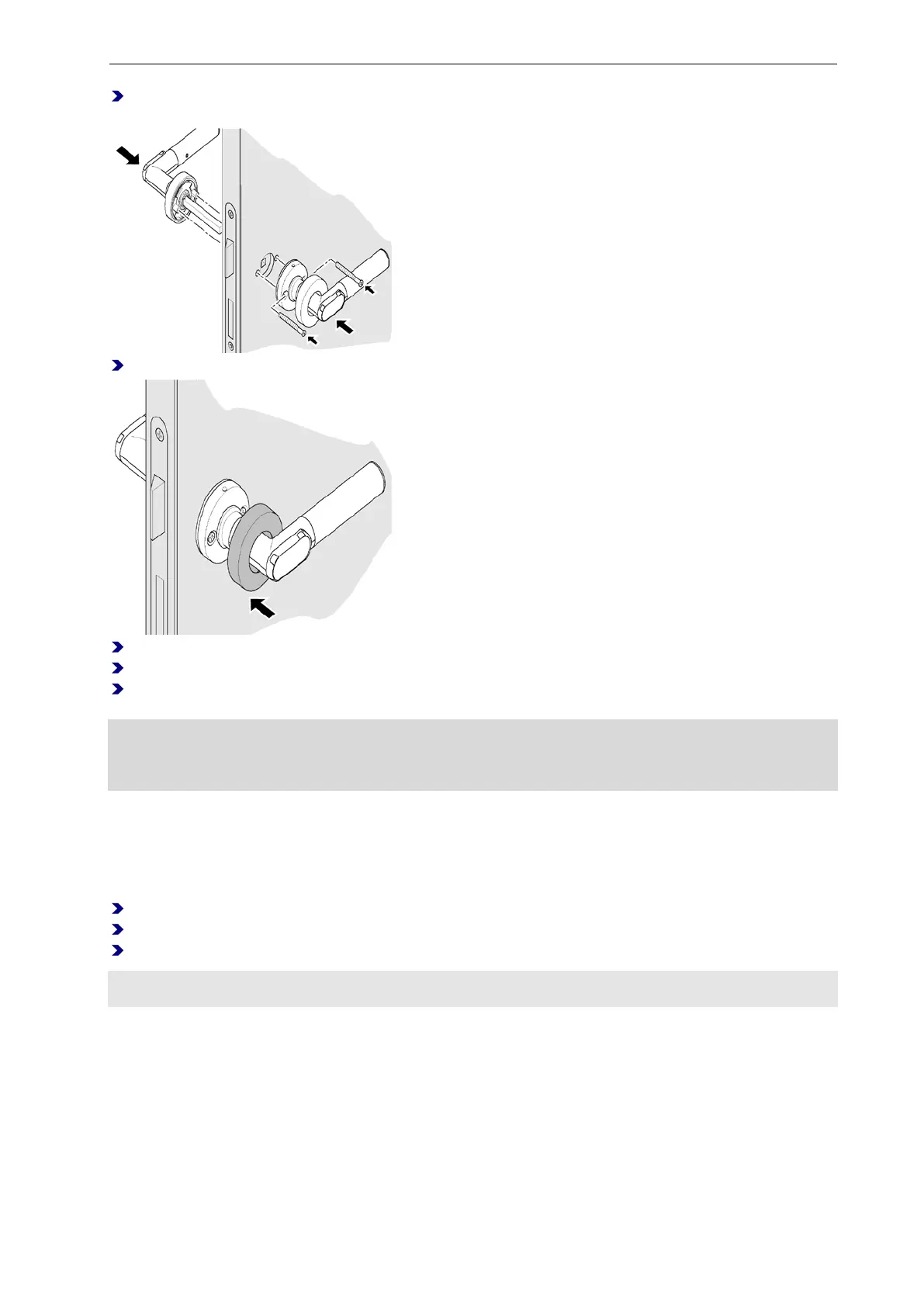

Screw together both electronic door handles through the door panel. Please use the supplied
mounting screws.
Attach the rosette cover.
Insert the battery to operate the door handle. Close the housing.
To operate the door handle, insert the battery and close the housing.
Check the functionality and easy movement of the door handle with the door open. To do this, hold an
authorized credential in front of the reading unit.
When engaged, the catch of the lock should be completely inside the lock housing when the latch is
pressed down.
After holding up an authorized credential for the first time, only the two upper LEDs light up as an
indication.
See also
Replace Battery ...................................................................................................................... 16
2.2.6 Assembling the Key Rosette
Attach the drilling template and align it horizontally.
Mark the holes.
Drill holes of diameter 7 - 7.5 mm at the marked positions.
Do not drill into or through the lock housing!
