Allegion Interflex IF-171 User Manual

10 The Electronic IF-171 Door Handle
2.2.4 Design for Door with Electronic Authorization on One Side

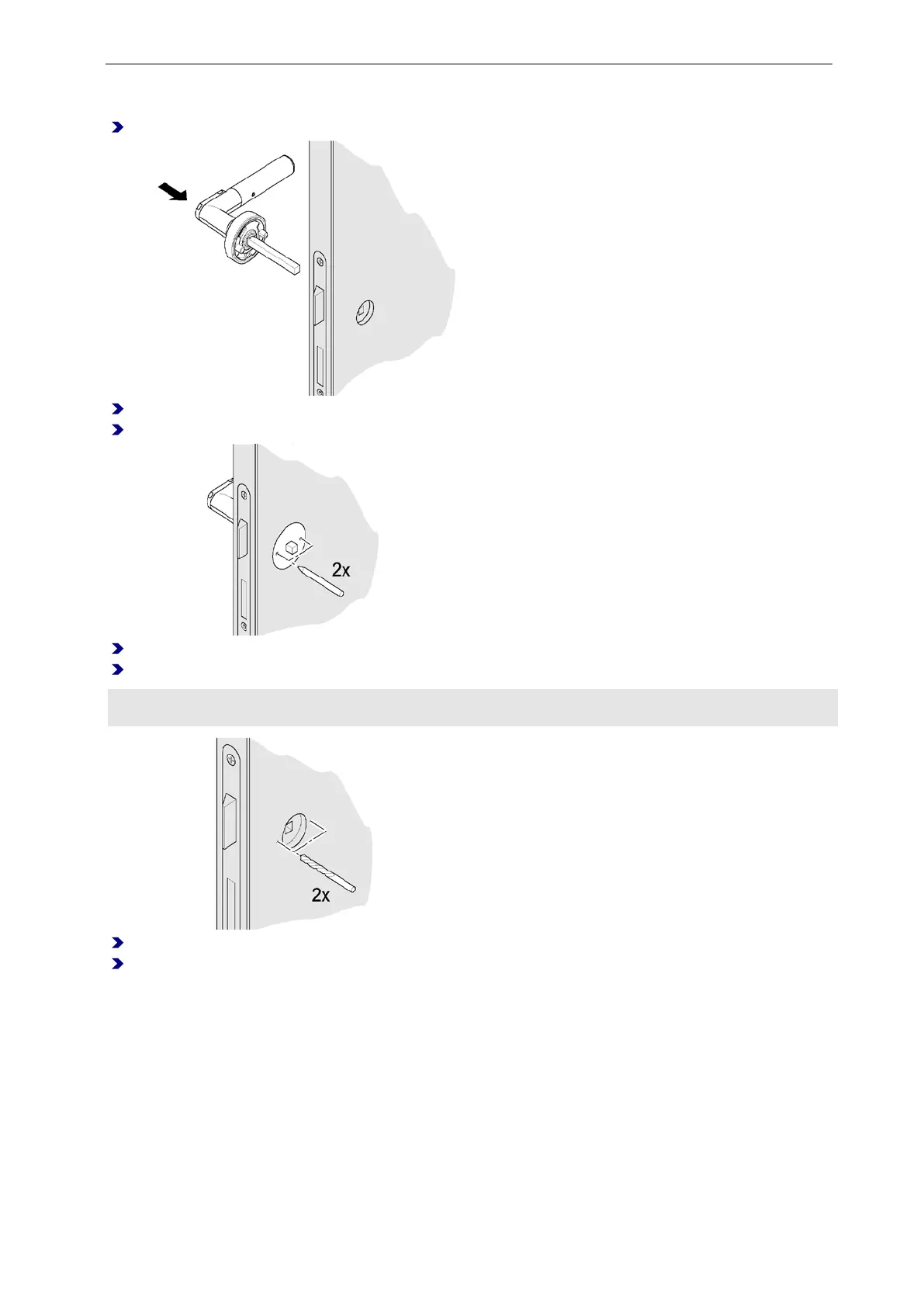

Insert the square pin of the electronic door handle into the square nut of the lock.
Slip drilling template onto the square pin. Align the drilling template horizontally.
Mark the holes.
Remove the square pin.
Drill holes of diameter 8 - 8.5 mm at the marked positions.
Do not drill into or through the lock housing!
Insert the square pin of the electronic door handle back into the square nut of the lock.
If necessary, place the adapter sleeve supplied on the square pin.
