33
User Guide V1.1.0 Issue 1
Convert a Quick Channel to a Complete Channel
Any Quick Channel can be converted to a Complete Channel at any time without
any change to the audio.
This allows Quick Channels to be used for a fast setup, but which can then be
switched to Complete Channels for control of individual parameters if desired.

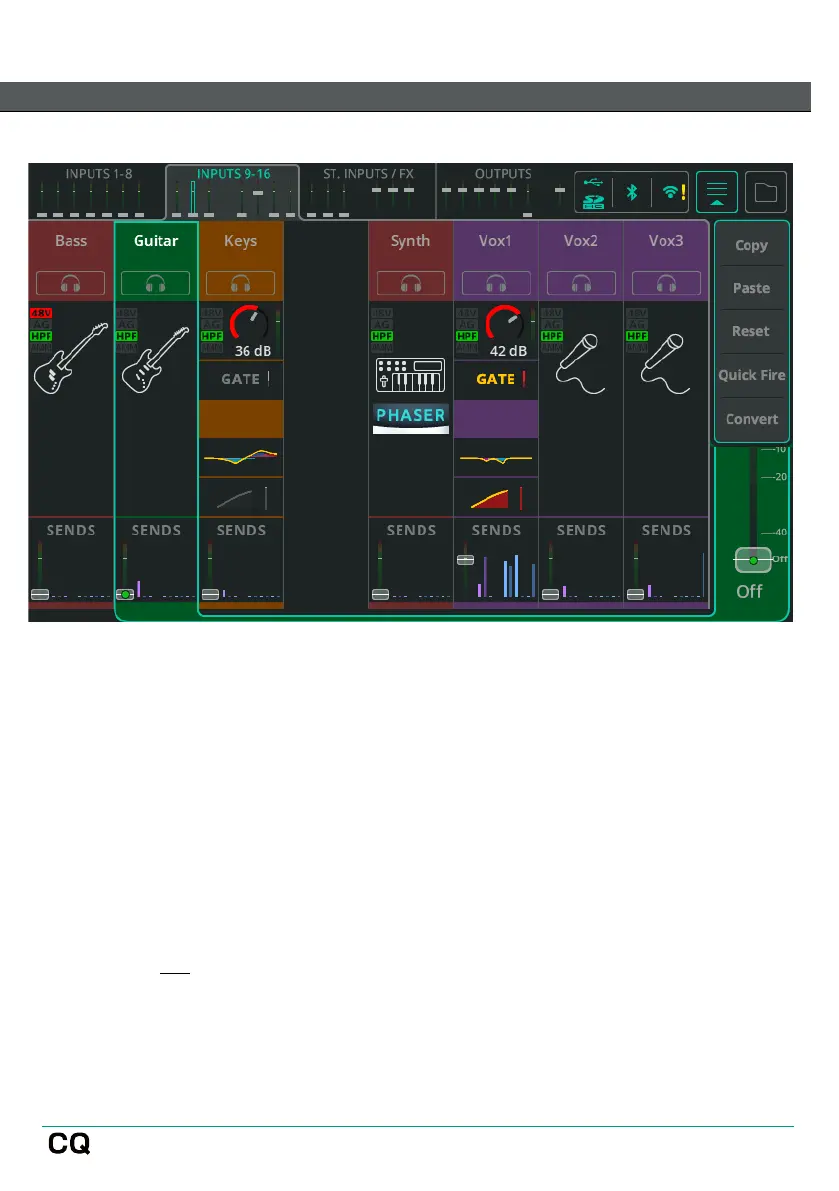

Open the dropdown menu from the top right-hand corner when in a bank view with
the Quick Channel selected, or when viewing the Quick Channel controls of the
channel to be converted, then select Convert.
A pop-up explaining what will happen will appear and give the option to apply or
cancel conversion.
Note that it is not possible for Complete Channels to be converted to Quick
Channels.
