Store and Recall settings
The CQ has 1 Show on it at any time. Up to 100 Scenes can be stored within each
Show along with up to 128 Library items. Using these three separate data types, it’s
possible to store and recall anything from the settings of a PEQ on a single
channel, to the entire setup of the CQ.
For more information on different types of storage in CQ, see the Shows, Scenes
and Libraries section.

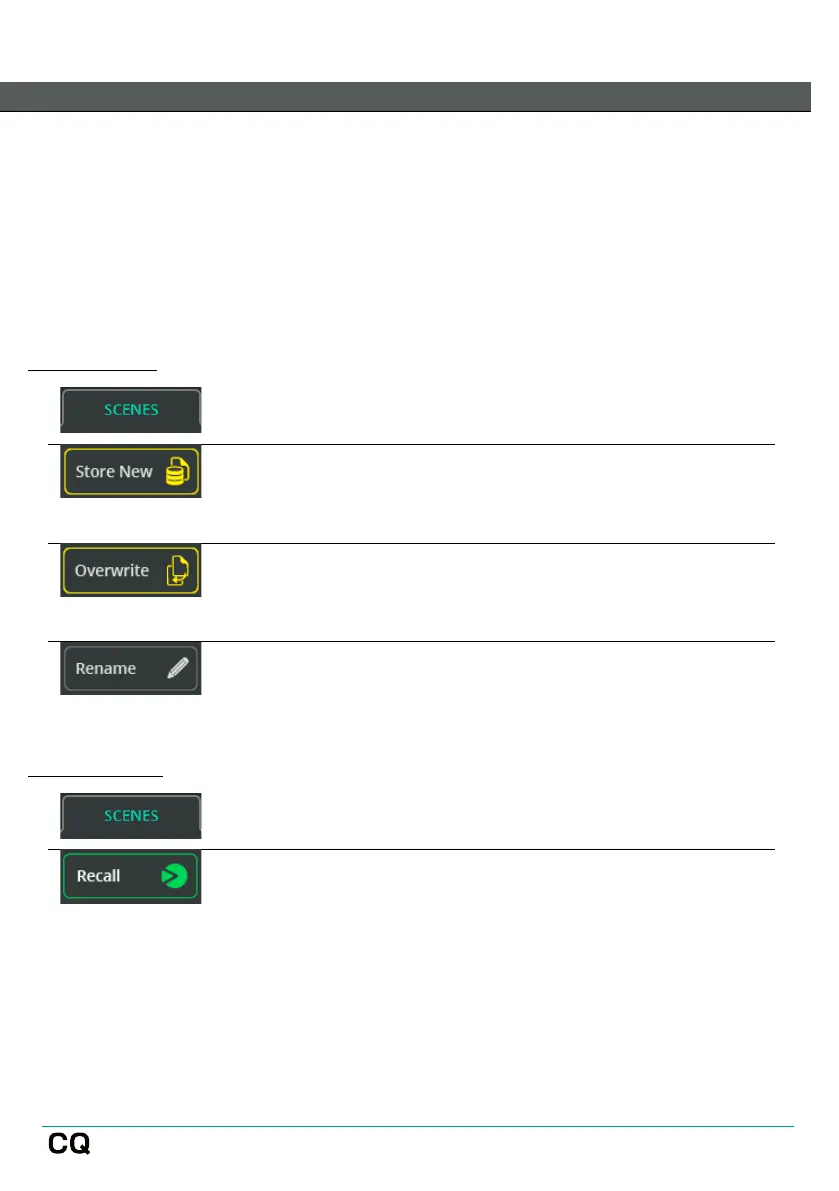

Store a Scene
1.
Go to HOME / SCENES.
2.
Select an available scene slot and use the Store New
button to store the current state of the mixer as a
Scene.
3.
Alternatively, select an existing Scene and use
Overwrite to store the current state of the mixer in
place of the selected Scene.
4.
Use Rename to change the name of the selected
Scene.
Recall a Scene
1.
Go to HOME / SCENES.
2.
Select a Scene from the list and use the Recall
button to replace the current state of the CQ (all
processing, FX Units and send levels) with the stored
version.
 Note that any current settings will be overwritten
and this can’t be undone, so it is best practice to
Store any changes before Recalling a Scene.

ALLEN & HEATH CQ-20B Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	24 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Nominal input level	17 dBu
Output impedance	75 Ω
Total Harmonic Distortion (THD)	0.002 %
Built-in display	-
Card reader integrated	Yes
Compatible memory cards	SD, SDHC
Maximum memory card size	32 GB
Bluetooth version	4.1
XLR out	8
RJ-45 ports quantity	1
USB 2.0 ports quantity	2
Number of microphone inputs	20
Rack capacity	19U
USB connector type	USB Type-A, USB Type-B
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	- W

Weight and Dimensions

Depth	154 mm
Width	372 mm
Height	134 mm
Weight	2600 g
Package type	Box
Package depth	260 mm
Package width	450 mm
Package height	250 mm
Package weight	3300 g
