ALLEN & HEATH CQ-20B User Manual

 60
User Guide V1.1.0 Issue 1
8. CONFIG

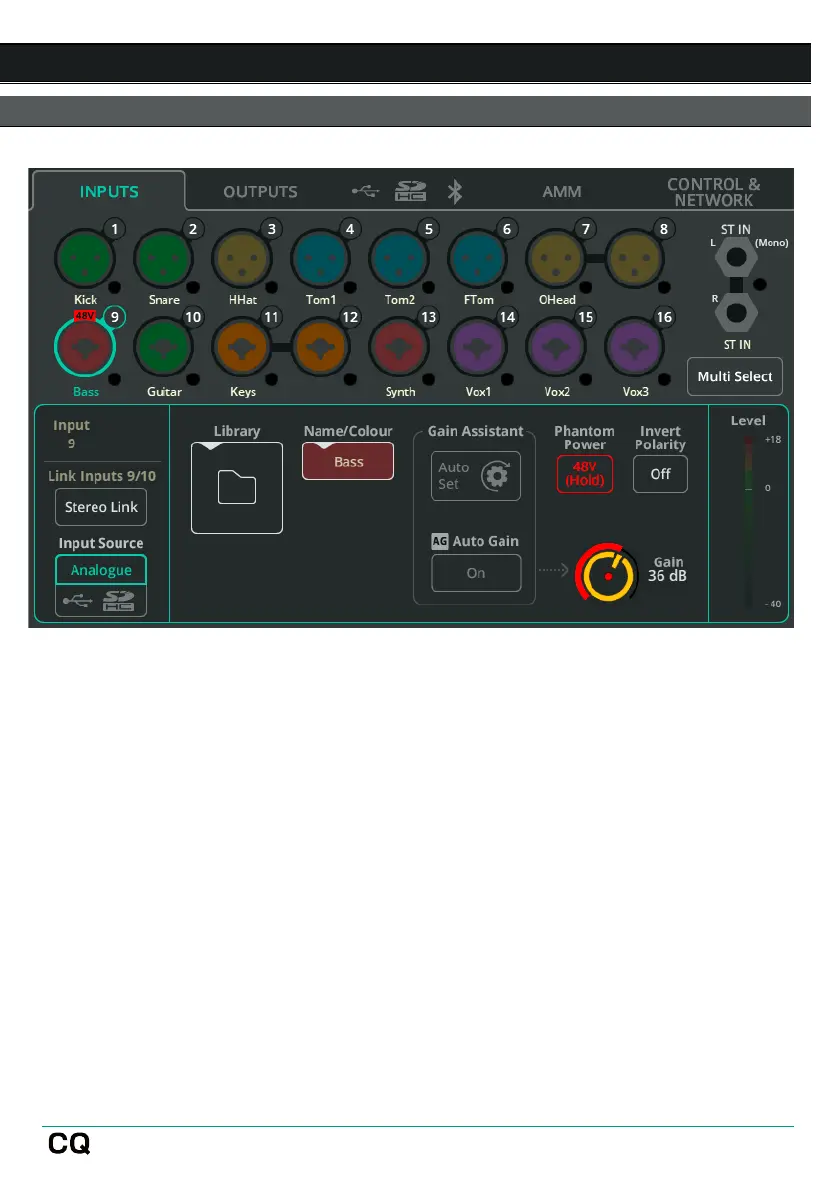

INPUTS
Input sockets are shown at the top of the screen, matching the hardware layout.
Each includes a Chromatic Meter to show input signal.
Touch a socket to select it and display settings for that input/channel at the
bottom.
Multi Select – Allows multiple inputs to be selected at once. This allows multiple
input sources to be switched between analogue and digital in one go, or for Gain
Assistant functions to be carried out on multiple analogue inputs at the same time.
Stereo Link – Use odd/even pairs of inputs as a single stereo channel (odd=left,
even=right). When active, all settings, processing and routing applies to both and
only one channel appears in the PROCESSING and FADER screens.
Input Source – Select Analogue to source the channel from the analogue sockets
or select USB/SD to source from USB drive and SD card.
 When playing back from SD the source will be SD, otherwise it will be USB-B.

ALLEN & HEATH CQ-20B Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	24 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Nominal input level	17 dBu
Output impedance	75 Ω
Total Harmonic Distortion (THD)	0.002 %
Built-in display	-
Card reader integrated	Yes
Compatible memory cards	SD, SDHC
Maximum memory card size	32 GB
Bluetooth version	4.1
XLR out	8
RJ-45 ports quantity	1
USB 2.0 ports quantity	2
Number of microphone inputs	20
Rack capacity	19U
USB connector type	USB Type-A, USB Type-B
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	- W

Weight and Dimensions

Depth	154 mm
Width	372 mm
Height	134 mm
Weight	2600 g
Package type	Box
Package depth	260 mm
Package width	450 mm
Package height	250 mm
Package weight	3300 g
