ALLEN & HEATH CQ-20B User Manual

 38
User Guide V1.1.0 Issue 1
Send signal from Inputs to the Main Output
Prior to sending signal anywhere, preamp gain or trim should be set correctly for
the input source. Follow the How to Use Gain Assistant section for best results.
This ensures optimum signal level coming into the channel for processing, but more
importantly when thinking about sending (routing) signals, changing the preamp
gain or trim also affects the level of signal being sent to any outputs.

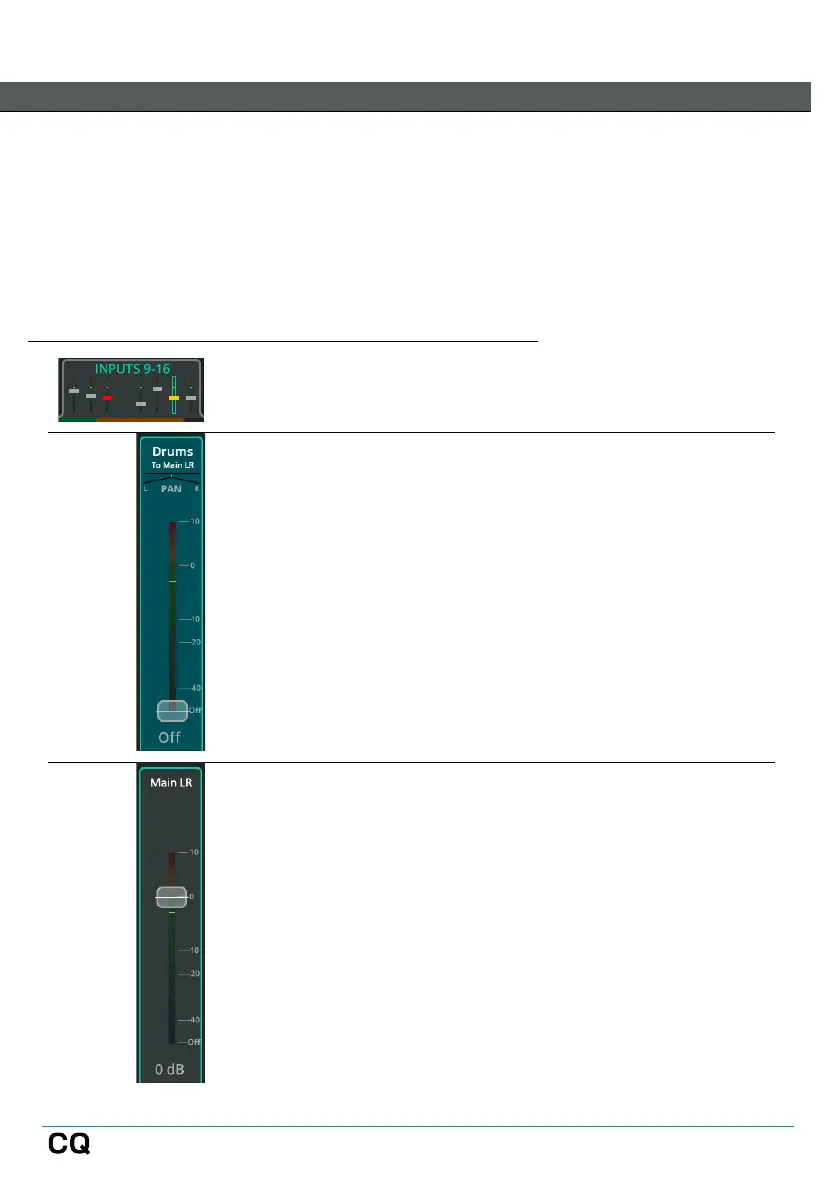

Send one input at a time using the PROCESSING screen
1.
Go to PROCESSING / INPUTS and select the channel
to be sent to the Main LR output.
2.
Use the fader on the right-hand side to adjust the
send level for just the selected channel. Touch/Click
and drag, or select the fader and use the Touchscreen
rotary control (CQ-12T, CQ-18T).
 Repeat steps 1 and 2 for other inputs as required.
3.
Adjust the (overall) Main LR output level by going to
the OUTPUTS tab, selecting the Main LR output
channel, and again using the fader on the right-hand
side.

ALLEN & HEATH CQ-20B Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	24 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Nominal input level	17 dBu
Output impedance	75 Ω
Total Harmonic Distortion (THD)	0.002 %
Built-in display	-
Card reader integrated	Yes
Compatible memory cards	SD, SDHC
Maximum memory card size	32 GB
Bluetooth version	4.1
XLR out	8
RJ-45 ports quantity	1
USB 2.0 ports quantity	2
Number of microphone inputs	20
Rack capacity	19U
USB connector type	USB Type-A, USB Type-B
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	- W

Weight and Dimensions

Depth	154 mm
Width	372 mm
Height	134 mm
Weight	2600 g
Package type	Box
Package depth	260 mm
Package width	450 mm
Package height	250 mm
Package weight	3300 g
