4.

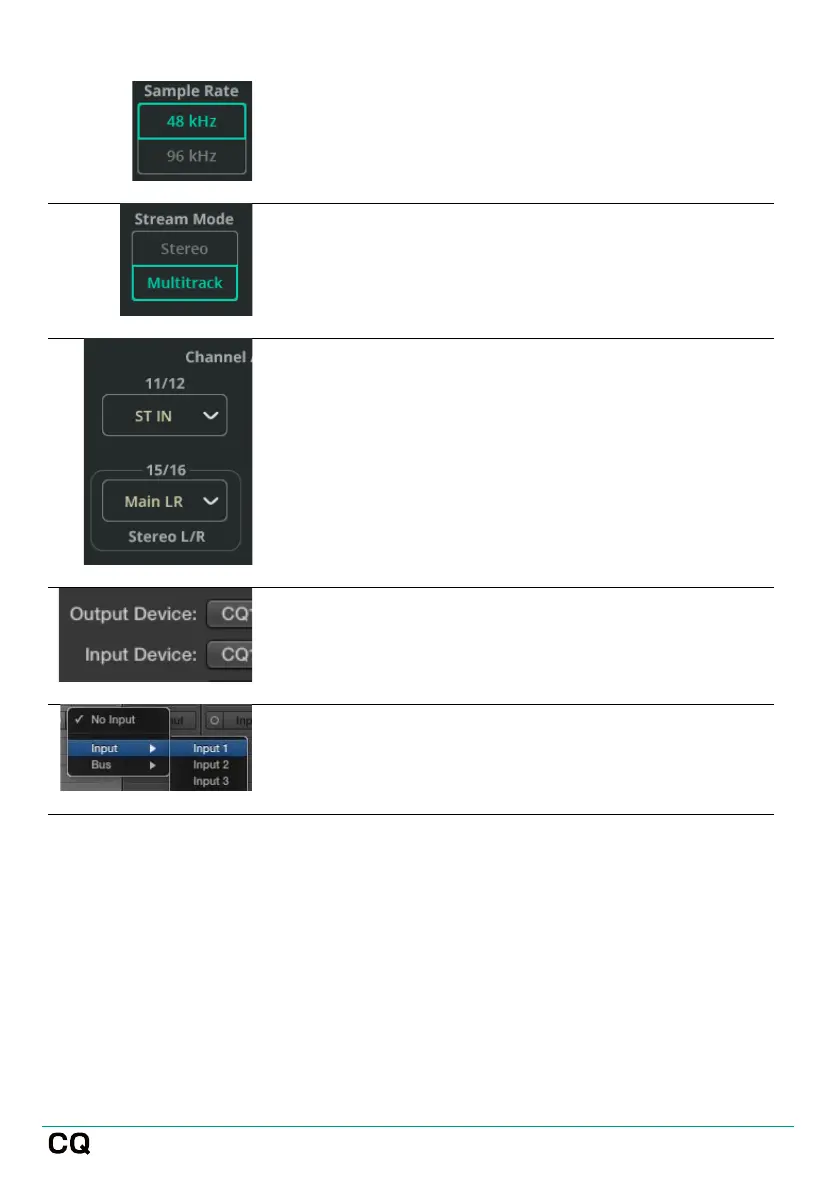

Select the Sample Rate. This should match
the Sample Rate of the DAW session.
5.
Select Multitrack for Stream Mode to send
and receive all channels individually.
6.
Assign outputs to the final pairs of channels
as required. These can be stereo inputs, FX or
outputs.
All mono (or stereo linked) channels are
always patched to their matching channel
number. e.g. CQ input 7 is being sent to USB
channel 7.
6.
In the DAW audio preferences, select the CQ
as the Audio Input Device or equivalent.
7.
Assign the Input source of each track in the
DAW to correspond to channels being sent
from the CQ.
8.
Done! Signal will now be available for
recording and processing on each of the DAW
tracks.

ALLEN & HEATH CQ-20B Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	24 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Nominal input level	17 dBu
Output impedance	75 Ω
Total Harmonic Distortion (THD)	0.002 %
Built-in display	-
Card reader integrated	Yes
Compatible memory cards	SD, SDHC
Maximum memory card size	32 GB
Bluetooth version	4.1
XLR out	8
RJ-45 ports quantity	1
USB 2.0 ports quantity	2
Number of microphone inputs	20
Rack capacity	19U
USB connector type	USB Type-A, USB Type-B
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	- W

Weight and Dimensions

Depth	154 mm
Width	372 mm
Height	134 mm
Weight	2600 g
Package type	Box
Package depth	260 mm
Package width	450 mm
Package height	250 mm
Package weight	3300 g
