Step 5 – Work with the channel processing
Access the Preamp, EQ and dynamics
Press a strip SEL key. Press the key again to turn it off or
press another to access a different channel.
* Press and hold any SEL key in the Processing Block
to temporarily send it to the PAFL system to listen to
and meter the signal at that point in the signal path.

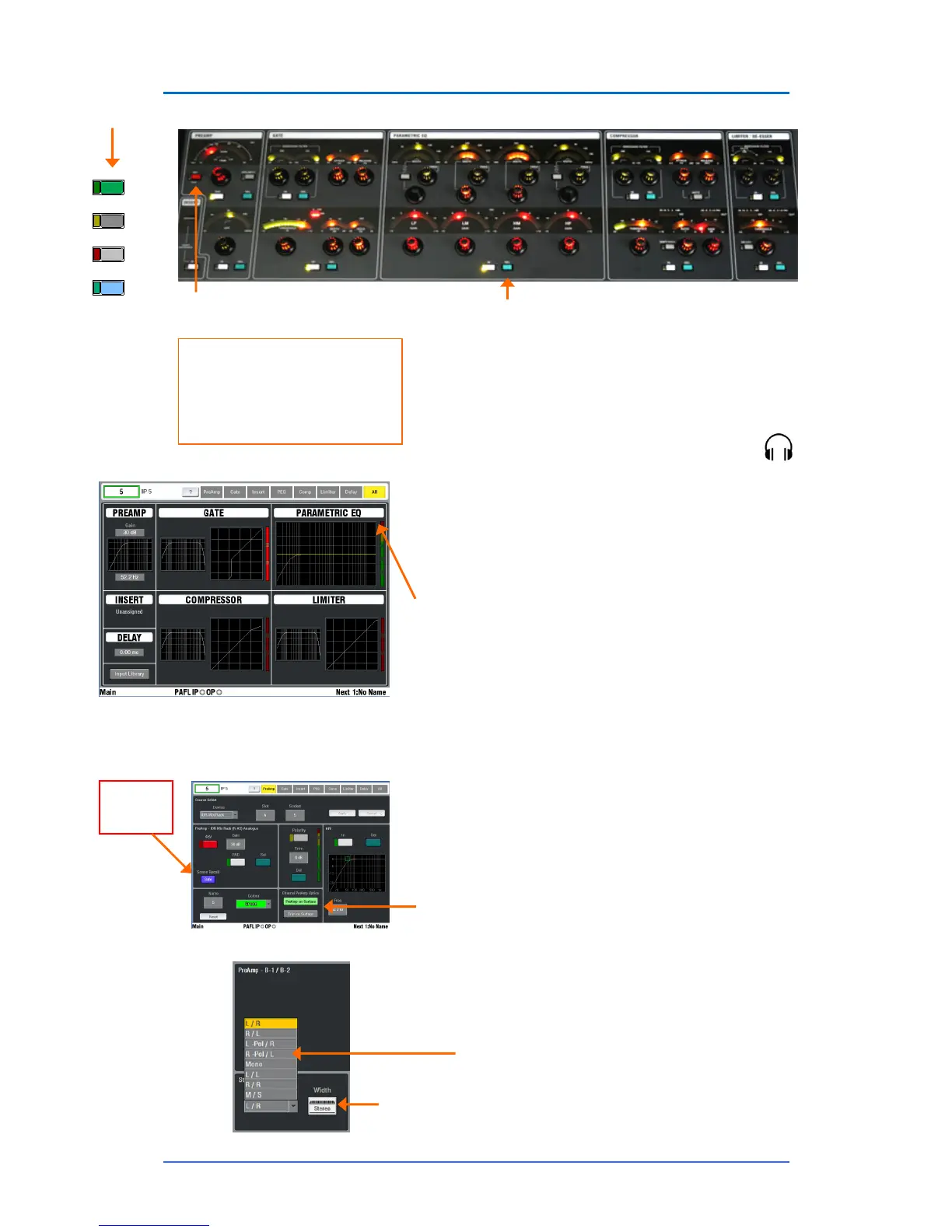

The Channel Processing Block displays the current
settings for that channel. Controls illuminate if available.
The TouchScreen provides an alternative graphical view
and access to the input and insert patching, delay setting
and changing the name and colour. Touch the screen or
press the processing SEL keys to open the different
processing views. Touch All to return to the overview page.
Note - To view the processing parameters on the screen
make sure all the screen keys are turned off. The SEL keys
will not access the processing if you leave the screen in
NAME/COLOUR, MIXRACK or SURFACE .
The
PREAMP screen lets you patch the Source to the DSP
channel, control the remote analogue mic preamp, adjust
channel Trim and Polarity, set name and colour, and adjust
the HPF (high pass filter).
Choose to present either the preamp controls (Gain, Pad,
48V, Polarity) or trim controls (Trim, Polarity) on the Surface
PREAMP section. This lets both FOH and Monitor engineers
work with their own independent trim controls once the Gain
has been set. All channels may be globally set to present
either the Preamp or Trim controls from the MIXRACK
SETUP / Mixer Pref screen. Once set, individual channels
may be changed from within their PREAMP screen.
Stereo channels provide source Mode and Width
controls.
L / R = Normal stereo input
R / L = Reversed stereo input
L -Pol / R = Stereo with inverted Left polarity
R -Pol/ L = Reversed stereo with inverted Right
Mono = Left and Right summed into mono
L /L = Left as mono source to both sides
R / R = Right as mono source to both sides
M / S = Middle/Side decode to stereo
MUTE
SEL
MIXMIX
PAFL
Due to its compact size, the
smaller iLive surfaces do not
provide all the physical controls.
Access these parameters using
the TouchScreen.
* Processing SEL keys
Channel Processing Block
Preamp
SAFE
Width
Press and hold to toggle 48V
