iLive Fixed Format Getting Started Guide 8 AP7141 iss.6b

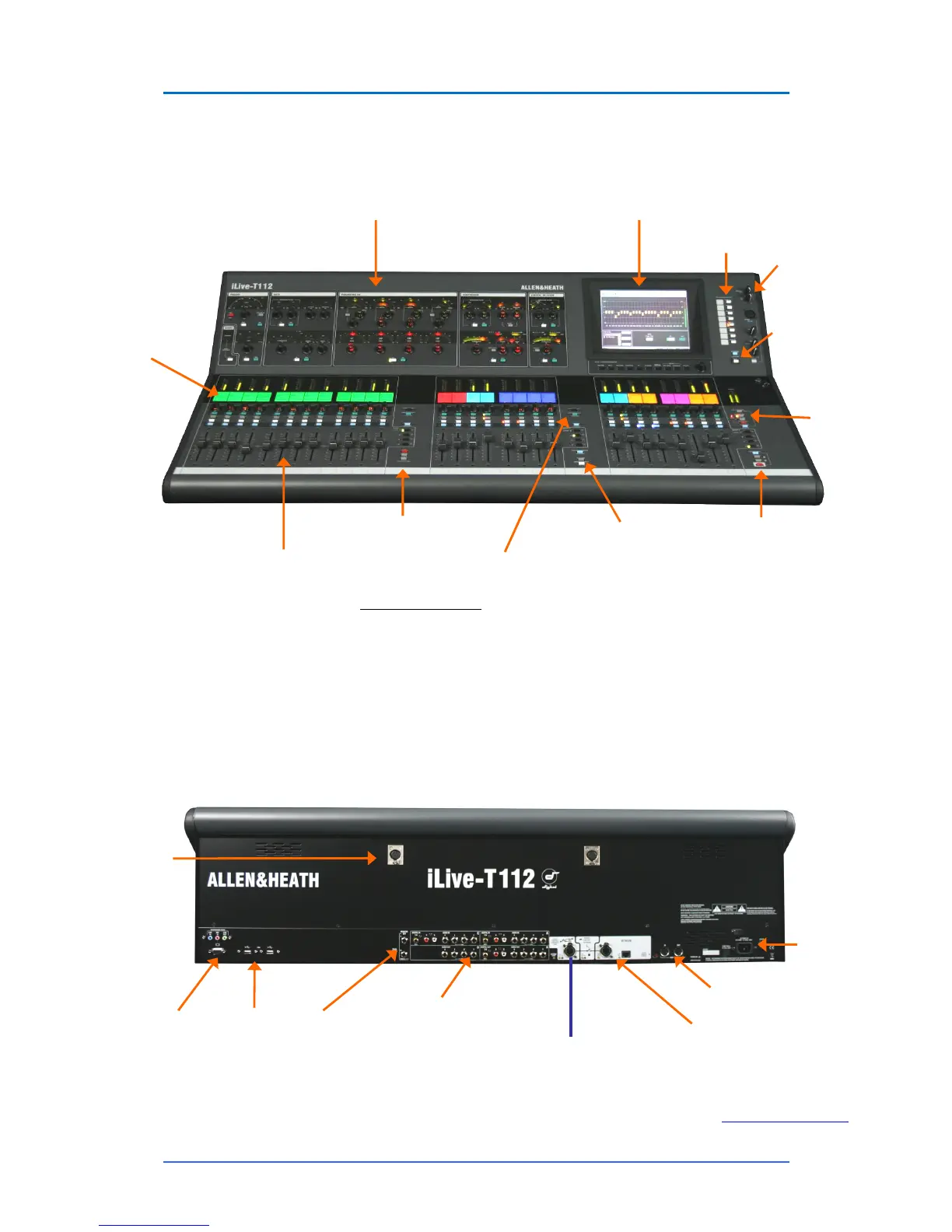

T Series Control layout
Channel Processing Strip Analogue style control
section with dedicated rotary controls, switches and
meters for the channel or mix preamp, HPF, gate, PEQ,
compressor and limiter/de-esser. Press the strip SEL
key to access the processing of the channel or master
assigned to it. The controls illuminate when they are
available.
TouchScreen For status display,
system setup and memory management.
To see an alternative graphical view of
the processing for the channel or master
currently selected make sure none of the
keys below the screen is selected.
Fader Banks Independent groups
of fader strips with 4 layers each.
Provides control of the Input
channel, FX return, Mix master or
DCA assigned to it.
SEL opens the channel processing
for the selected strip.
MIX presents the sends for the
selected strip on faders (or
encoders) and assignments and
pre/post settings in the strip LCD
windows.
Soft Ke
s
Virtual write-on strip
Name and colour
PAFL
monitor
and SIP
Talkback mic
input, level and
48V. Hold down
TB ASSIGN and
press the master
MIX keys to
assign.
Copy/Paste/Reset edit keys
Dimmer
Scene GO recall
keys. . These are
disabled by default.
Use the SURFACE
Preferences option
to enable.
SCENE SAFES to
prevent selected
channels being
overwritten by the
memories. Hold
down SAFES and
press MIX keys to
toggle on or off.
ASSIGN and PRE/POST access
keys for the selected mix.
While a MIX is active:
Hold down ASSIGN and press
strip MIX keys to toggle the
assignments on or off.
Hold down PRE/POST and
press strip SEL keys to toggle
pre or post fade.
Hold down ROTARY SHIFT to
access the second encoder
function if it has one.
Hold down ALT VIEW to
view the channel or
socket numbers in place
of the name in the LCD
windows.
GEQ FADER FLIP to
present the GEQ across
the faders.
FREEZE IN LAYERS to
keep a channel visible
across all layers. Hold
down and press strip
MIX keys.
VGA port for
external monitor
(same view as
TouchScreen).
2x USB
ports.
Plug your
USB key
in here.
Local
PAFL
monitor
output
Assignable local audio
inputs and outputs.
Rows A, C = inputs
Rows B, D = outputs.
Balanced TRS jack
RCA phono
RCA digital (SPDIF)
Surface to MixRack link
ACE (audio and control over
Ethernet) CAT5 cable up to
120m (400 feet)*
Additional Ethernet ports
for connecting laptops
and wireless router.
MIDI in and out
Lamp
sockets
IEC
mains
power
input
* Depends on cable type. Refer to www.allen-heath.com
for recommended cable types and maximum lengths.
