ALLEN & HEATH iLIVE User Manual

iLive Fixed Format Getting Started Guide 37 AP7141 iss.6b

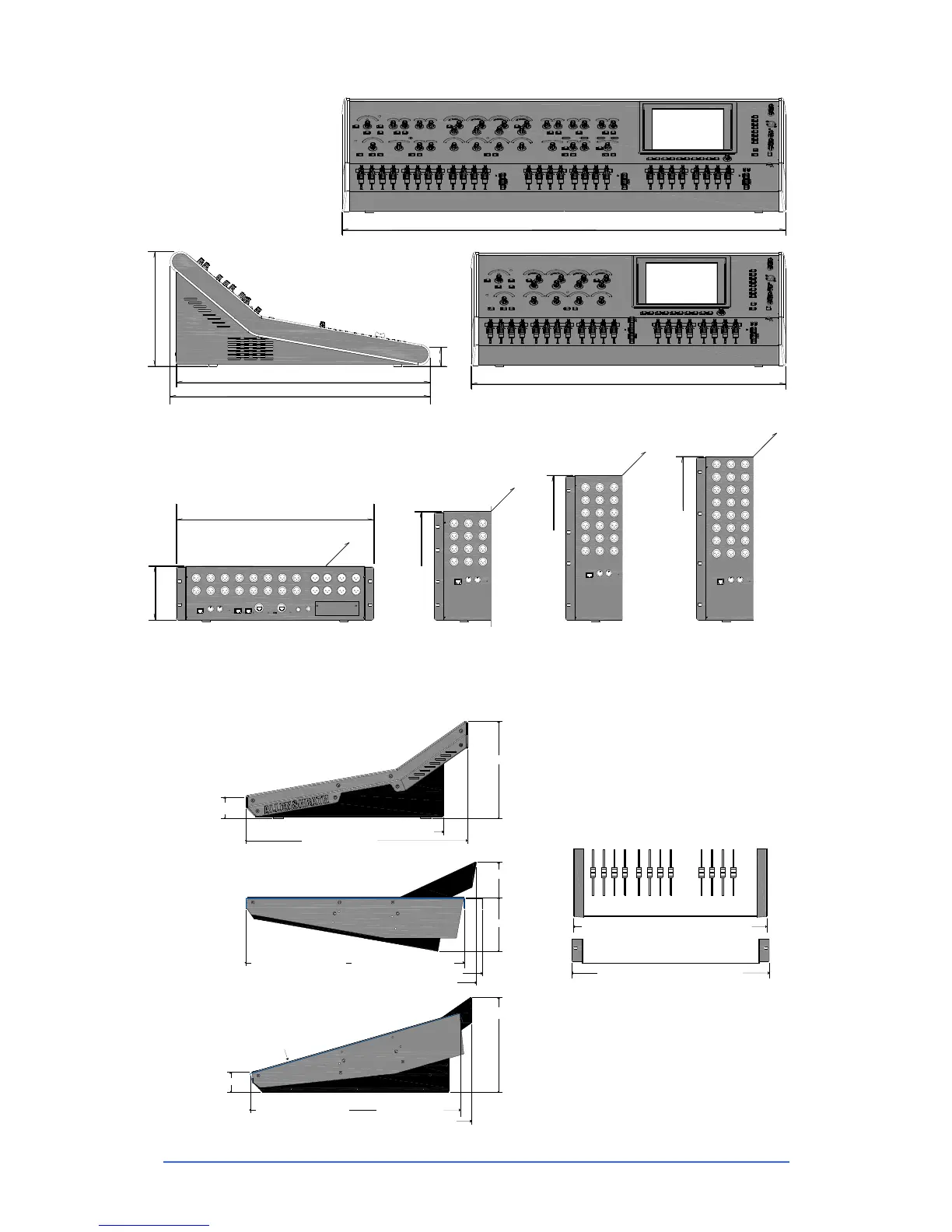

280mm / 11"
620mm / 24.4"
635mm / 25"
46mm / 1.8"
1083mm / 42.6"
768mm / 30.2"
T112 WEIGHT = 27kg / 59.4lbs
iLIVE-T112
iLIVE-T80
iDR-32
iDR-48
iDR-64
iDR-16, xDR-16
132mm / 5.2"
265mm / 10.4"
353mm / 13.9"
399mm / 15.7"
482mm / 19"
iDR-32 MixRack WEIGHT = 12kg / 26.4lbs
iDR-16 MixRack WEIGHT = 7.5kg / 16.5lbs
iDR-48 MixRack WEIGHT = 16kg / 35.2lbs
iDR-64 MixRack WEIGHT = 17.5kg / 38.5lbs
3U
6U
8U
9U
250mm / 9.9"
250mm / 9.9"
250mm / 9.9"
250mm / 10"
DEPTH
DEPTH
DEPTH
DEPTH
RACKS
xDR-16 Expander WEIGHT = 7kg / 15.4lbs
FIXED FORMAT iLIVE SURFACE
R72 WEIGHT = 12kg / 26.5lbs
563mm / 22.2" to rear of pod
from front of rack rail 533.4mm / 21" 12U rail
578mm / 22.75" 13U rail
217mm / 8.54"
131mm / 5.16"
235mm / 9.3"
47.5mm / 1.87"
from front of rack rail 513mm / 20.2"
540.5mm / 21,3"
52.5mm / 2.07"
237mm / 9.33"
482.2mm / 19"
540mm / 21.26"
Rack Ears - Flush Mounted
Rack Ears - Angled
16 degrees
Desk Top - Side Trims Fitted
iLIVE-R72
471.4mm (18.56") with side trims fitted
482mm (19") with rack ears fitted
Rack Mounted
Desk Top

ALLEN & HEATH iLIVE Specifications

General

Type	Digital Mixer
Rack Options	MixRack is rack-mountable
Remote Control	Via network using iLive Editor software
Connectivity	Ethernet, MADI
Processing	DSP
Sampling Rate	96kHz
EQ	4-band parametric
Dynamics	Compressor, gate
Mix Rack	Yes
Word Clock	Yes
Dimensions	Varies by component
Weight	Varies by component
Effects	Multi-effects processor
Power Supply	Internal redundant power supply (MixRack)
