3–8 Configuration and Interfacing
Publication 1203–5.1 –– July, 1997

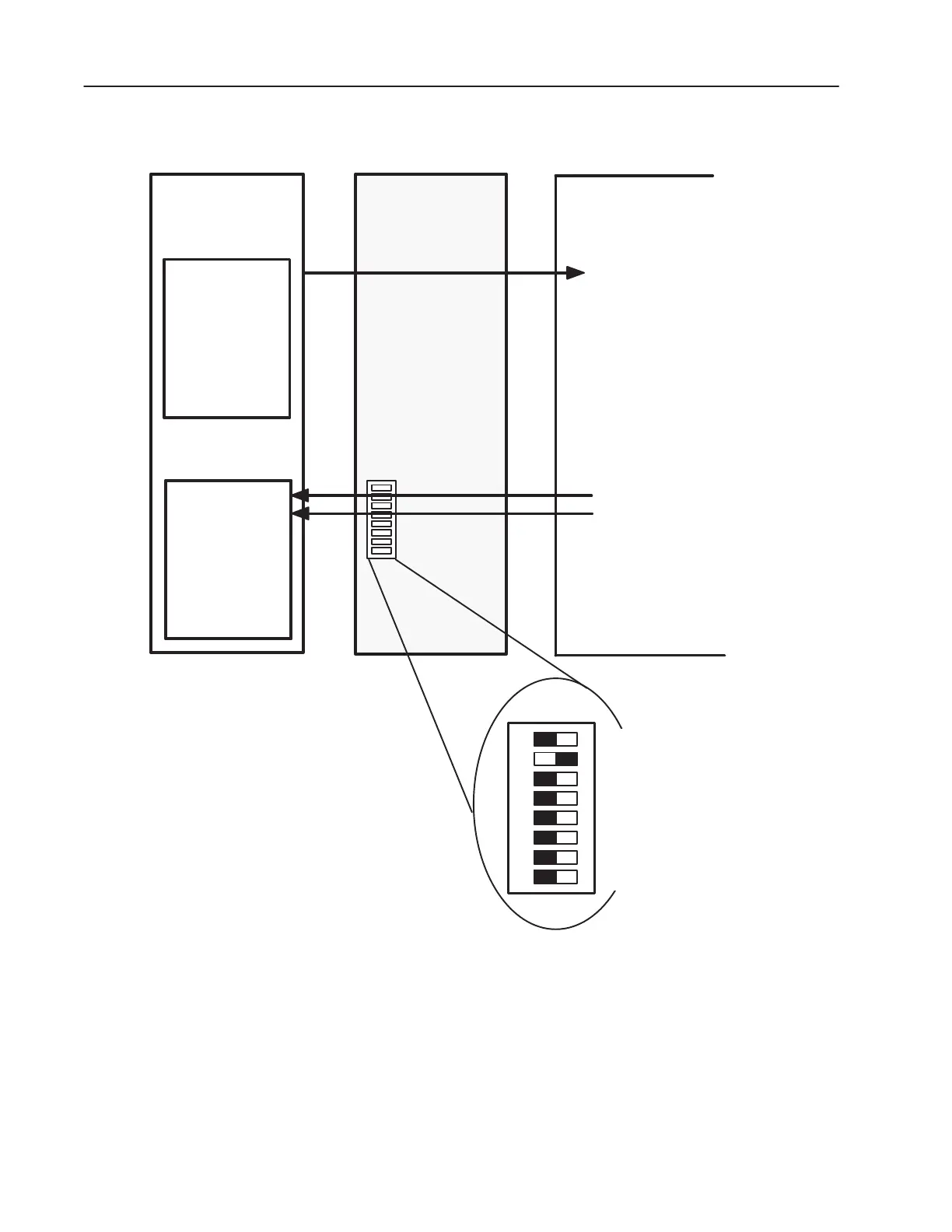

Figure 3.6
Typical Programmable Controller Configuration for SMC Dialog Plus without
Block Transfer
Output Image
Logic Command
Remote I/O
Communications
Module
Input Image
SW3
SMC Dialog PlusProgrammable
Controller I/O
Image Table
Logic Status
Feedback
➀
SW3
12345678
OPEN
Datalink B Off
Datalink C Off
Datalink D Off
Truncate Last Datalink Off
Datalink A Off
Reference/Feedback Off
Logic Cmd/Sts On
Block Transfer Off
AB0507A
➀
Current Phase A
