Rockwell Automation Publication 1606-RM003A-EN-P - March 2019 17
DC-UPS with Integrated battery - 24V, 10 A
Terminals and Wiring

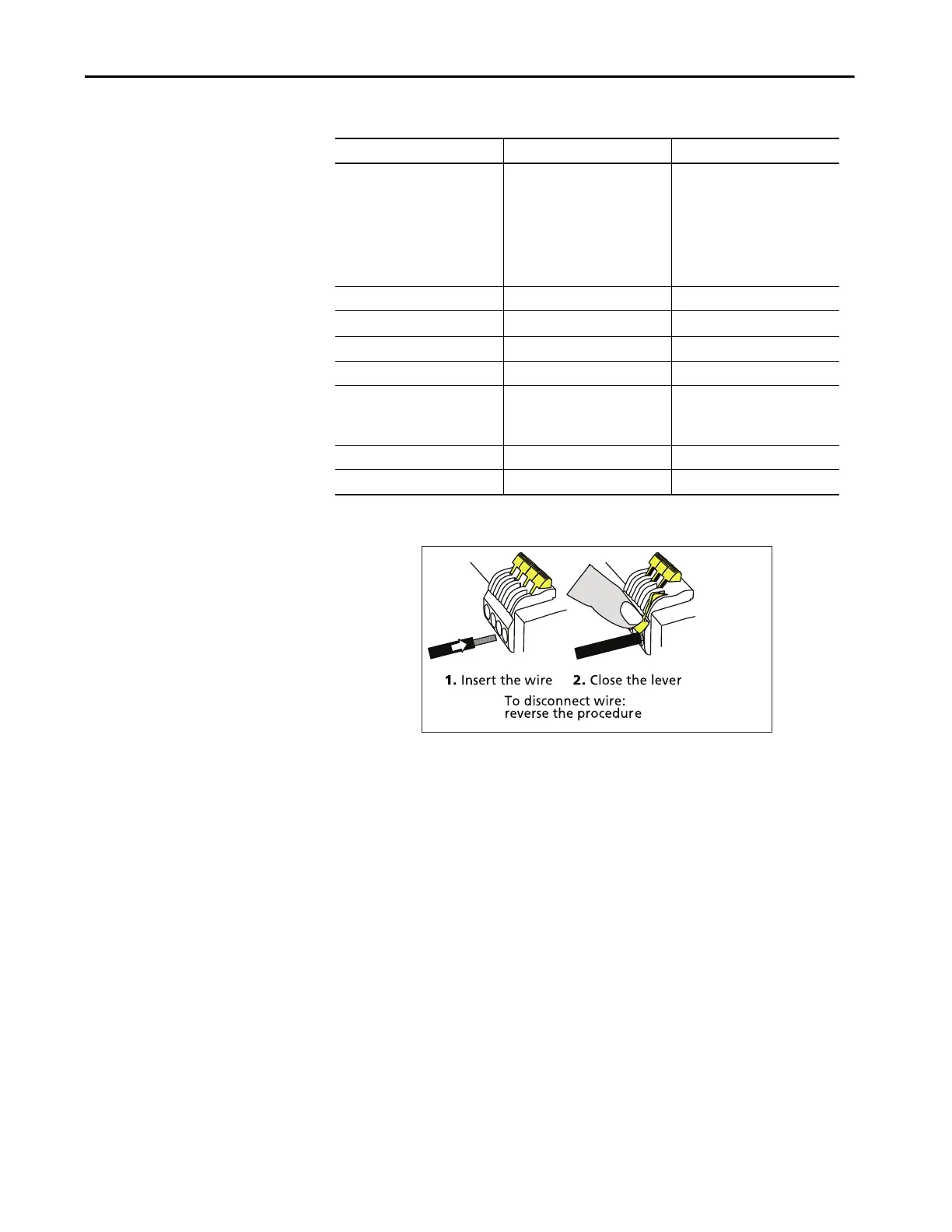

Figure 21 - Connecting a Wire with Spring-clamp Terminals
• Use appropriate copper cables that are designed for an operating
temperature of 60 °C (140 °F)
• Follow national installation codes and regulations.
• Ensure that all strands of a stranded wire enter the terminal connection.
• You can use up to two stranded wires with the same cross section in one
connection point.
Attribute Power Terminals Signal Terminals
Type Bi-stable, quick-connect
spring- clamp terminals. IP20
Finger-touch-proof. Suitable for
field and factory installation.
Shipped in open position.
Plug connector with screw terminal.
Finger-touch-proof construction
with captive screws for 3.5 mm
slotted screwdriver. Suitable for field
and factory installation. Shipped in
open position. To meet GL
requirements, unused terminal
compartments should be closed.
Solid wire 0.5…6 mm
2
0.2…1.5 mm
2
Stranded wire 0.5…4 mm
2
0.2…1.5 mm
2
American Wire Gauge AWG 20…10 AWG 22…14
Ferrules Allowed but not required Allowed but not required
Pull-out force 10 AWG:80 N, 12 AWG:60 N
14 AWG:50 N, 16 AWG:40 N
according to UL486E
Not applicable
Tightening torque Not applicable 1 Nm, 9 lb-in
Wiring stripping length 10 mm (0.4 in.) 6 mm (0.24 in.)
