Rockwell Automation Publication 1606-RM003A-EN-P - March 2019 23
DC-UPS with Integrated battery - 24V, 10 A

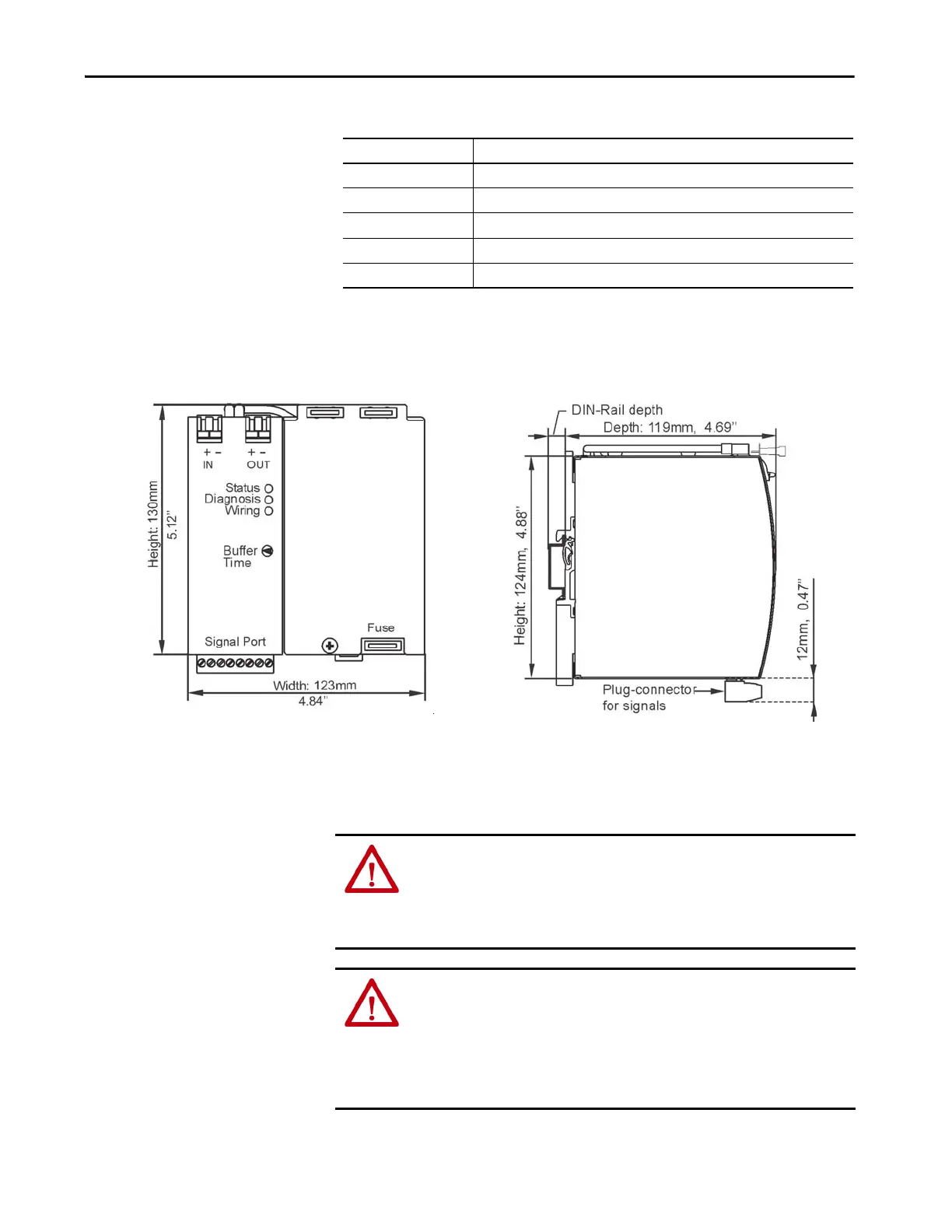

Approximate Dimensions
and Weight
Dimensions are inches and millimeters.
Installation Notes
The unit shall only be installed and put into operation by qualified personnel.
Attribute Description
Width 123 mm (4.84 in.)
Height 124 mm (4.88 in.)
Depth
(1)
(1) The DIN rail height must be added to the unit depth of 119 mm (4.68 in.) to calculate the total required installation depth.
119 mm (4.69 in.)
Weight 2850 g (6.28 lb)
DIN Rail Use 35 mm heavy duty DIN rails according to EN 60715 or EN 50022.
Figure 24 - Front View Figure 25 - Side View
ATTENTION: This unit is designed for installation in an enclosure and is
intended for general use, such as in industrial control, office, communication,
and instrumentation equipment. Do not use this device in aircraft, trains and
nuclear equipment, where malfunctioning of the power supply may cause
severe personal injury or threaten human life.
ATTENTION: Risk of electrical shock, fire, personal injury, or death.
– Turn power off before working on the device. Protect against inadvertent
re powering.
– Do not modify or repair the unit.
– Do not open the unit as high voltages are present inside.
– Use caution to prevent any foreign objects from entering into the housing.
– Do not use in wet locations or in areas where moisture or condensation can be
expected.
