Rockwell Automation Publication 1606-RM003A-EN-P - March 2019 7
DC-UPS with Integrated battery - 24V, 10 A
Electronic Output Current Limitation
The unit is equipped with an electronic output current limitation. This current
limitation works in a switching mode that reduces the power losses and heat
generation to a minimum. As a result, the output voltage drops since there is not
enough current to support the load. A positive effect of the current limitation in
switching mode is that the input current goes down despite an increase in the
output current resulting in less stress for the supplying source.

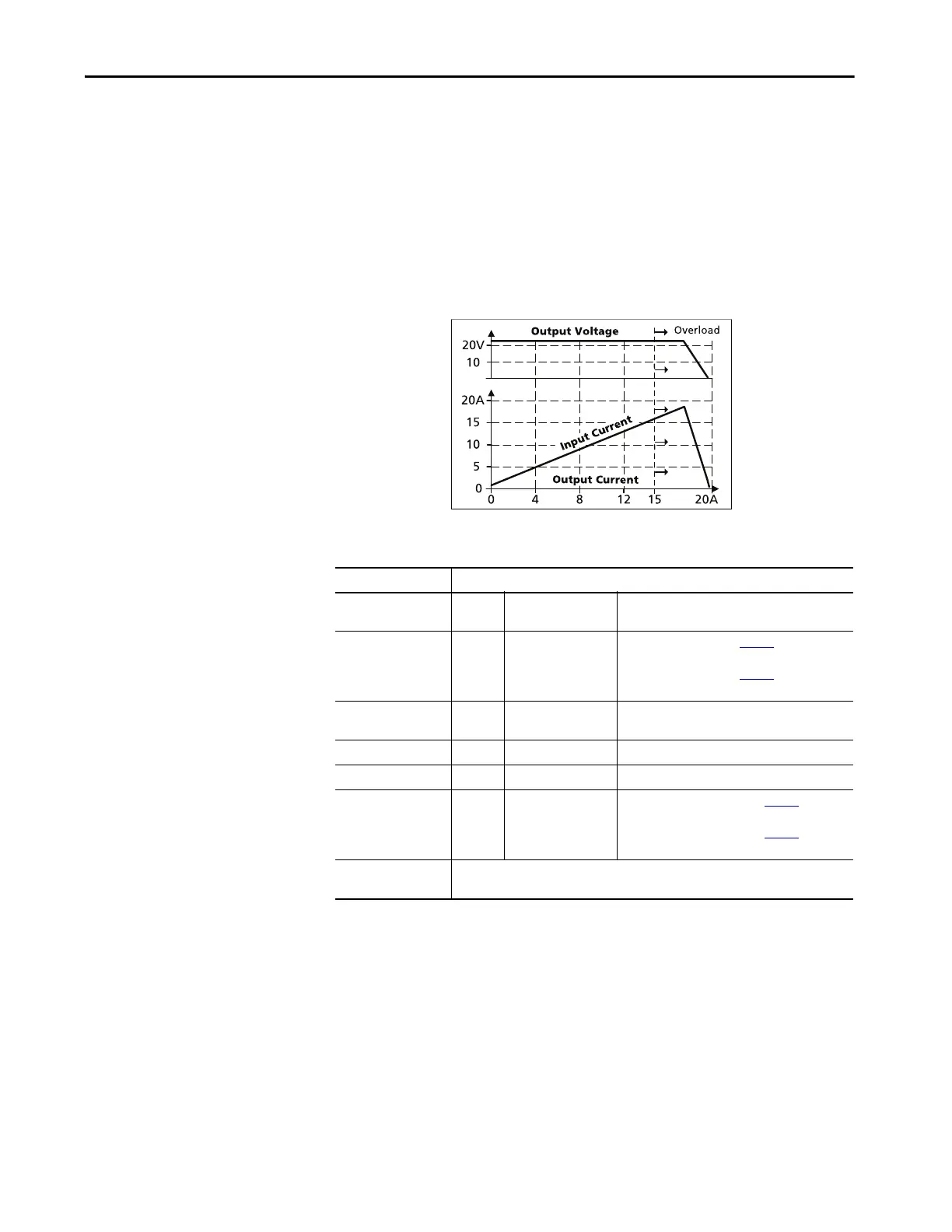

Figure 5 - Input Current and Output Voltage versus Output Current, Typ. (battery fully charged)
Output in Normal Mode
Attribute Description
Output voltage Nom DC 24V The output voltage follows the input voltage that is
reduced by the input to the output voltage drop.
Voltage drop between
input and output
Max
Max
0…3V
0.45V
At 10 A output current, see Figure 6
for typical
values.
At 15 A output current, see Figure 6
for typical
values.
Ripple and noise
voltage
Max 20 mVpp 20 Hz to 20 MHz, 50 Ohms
(1)
(1) Shows the ripple and noise voltage that is generated by the DC-UPS. The ripple and noise voltage might be higher if the supplying
source has a higher ripple and noise voltage.
Output current Nom 15 A Continuously allowed
Output power Nom 360 W Continuously allowed
Short circuit current Min
Max
17.9 A
21 A
Load impedance 100 mOhm, see Figure 7
for typical
values.
Load impedance 100 mOhm, see Figure 7
for typical
values.
Capacitive and
inductive loads
No limitation
