DC-UPS with Integrated battery - 24V, 10 A
• Superior battery management for long battery life
• Temperature compensated battery charging
• Comprehensive diagnostics and monitoring functions
• Replace battery signal included
• Electronically overload and short circuit protection
• 50% power reserves
• Selectable buffer time limiter
The power supply is also environmentally friendly:
• The unit does not release any silicone and is suitable for the use in paint
shops.
• The unit conforms to the RoHS directive 2002/96/EC.
• Electrolytic capacitors included in this unit do not use electrolytes such as
Quaternary Ammonium Salt Systems.
• Plastic housings and other molded plastic materials are free of halogens.
• The materials that are used in our production process do not include
Polychlorinated Biphenyl (PCB), Pentachlorophenol (PCP),
Polychlorinated naphthalene (PCN), Polybrominated Biphenyl (PBB),
Polybrominated Biphenyl Oxide (PBO), Polybrominated Diphenyl Ether
(PBDE), Polychlorinated Diphenyl Ether (PCDE), Polybrominated
Diphenyl Oxide (PBDO), Cadmium, Asbestos, Mercury, or Silica.

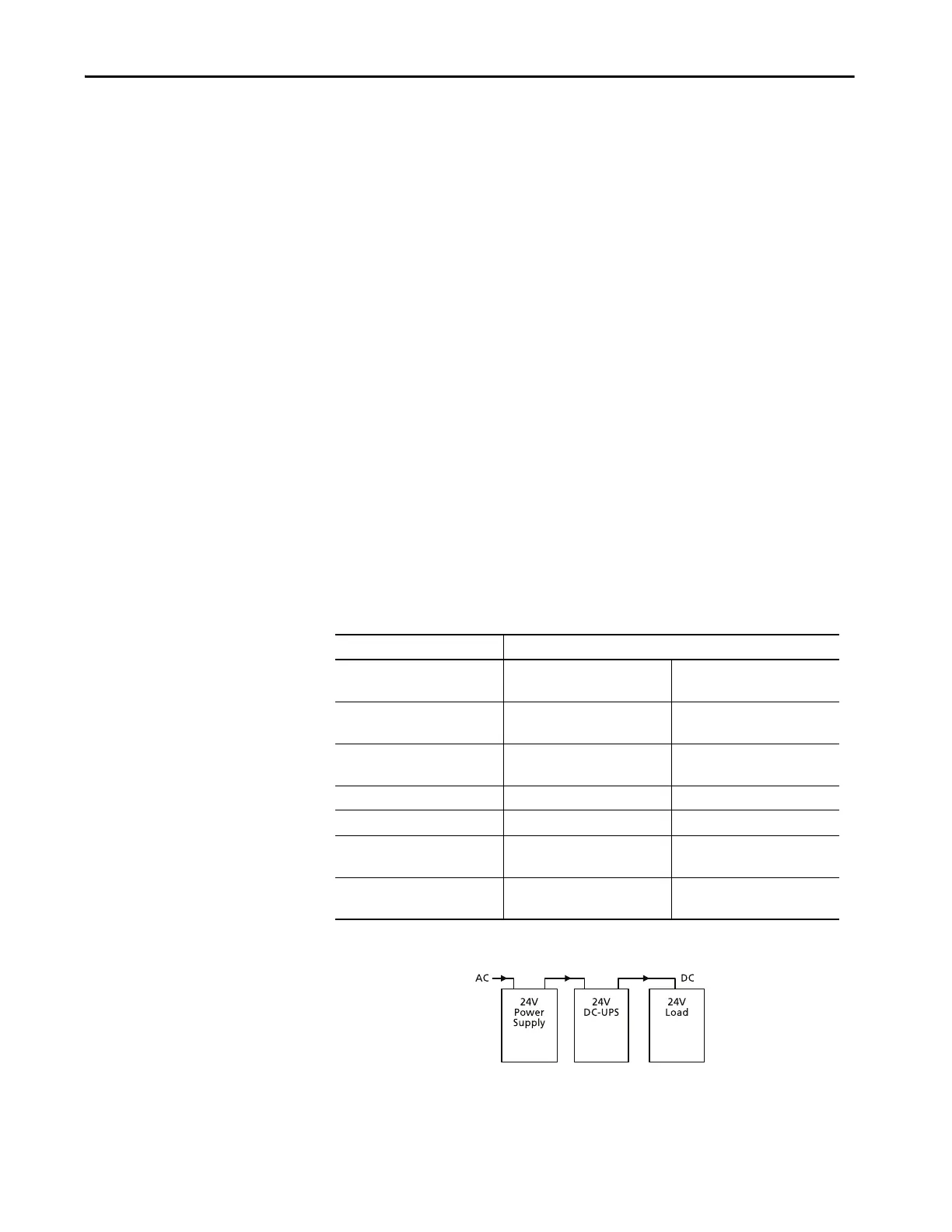

Figure 1 - Typical Setup of a DC-UPS System with the 1606-XLS240-UPSC
Attribute Description
Input voltage
Range
24V DC, nom
22.5…30V DC
–
Output current 15 A, min
10 A, min
Normal mode
Buffer mode
Output voltage Typ 0.23V lower as input voltage
22.25V
Normal mode
Buffer mode, 10 A
Integrated battery 12V, 5 Ah VRLA lead acid
Temperature range 0…40
°C(32…104 °F) Operational
Size (W x H x D) 123 x 124 x 11 mm
(4.84 x 4.88 x 0.43 in.)
–
Buffer time 16 minutes, 15 s, typ
16 minutes, 15 s, typ
5 A load
10 A load
