Rockwell Automation Publication 1734-UM013N-EN-P - September 2017 131
Configure the Module for a SmartGuard Controller Chapter 6
7. In the Requested Packet Interval (RPI) box, enter 10 ms.
8. In the Connection Reaction Time Limit (CRTL), enter 40.1 ms.
9. Click Add.
This value limits the packet size for normal communication. If detailed
status is required when a fault occurs, the data can be read explicitly via
MSG instructions.
10. Repeat steps 3…9
for each connection, being sure to assign input and
output connections.

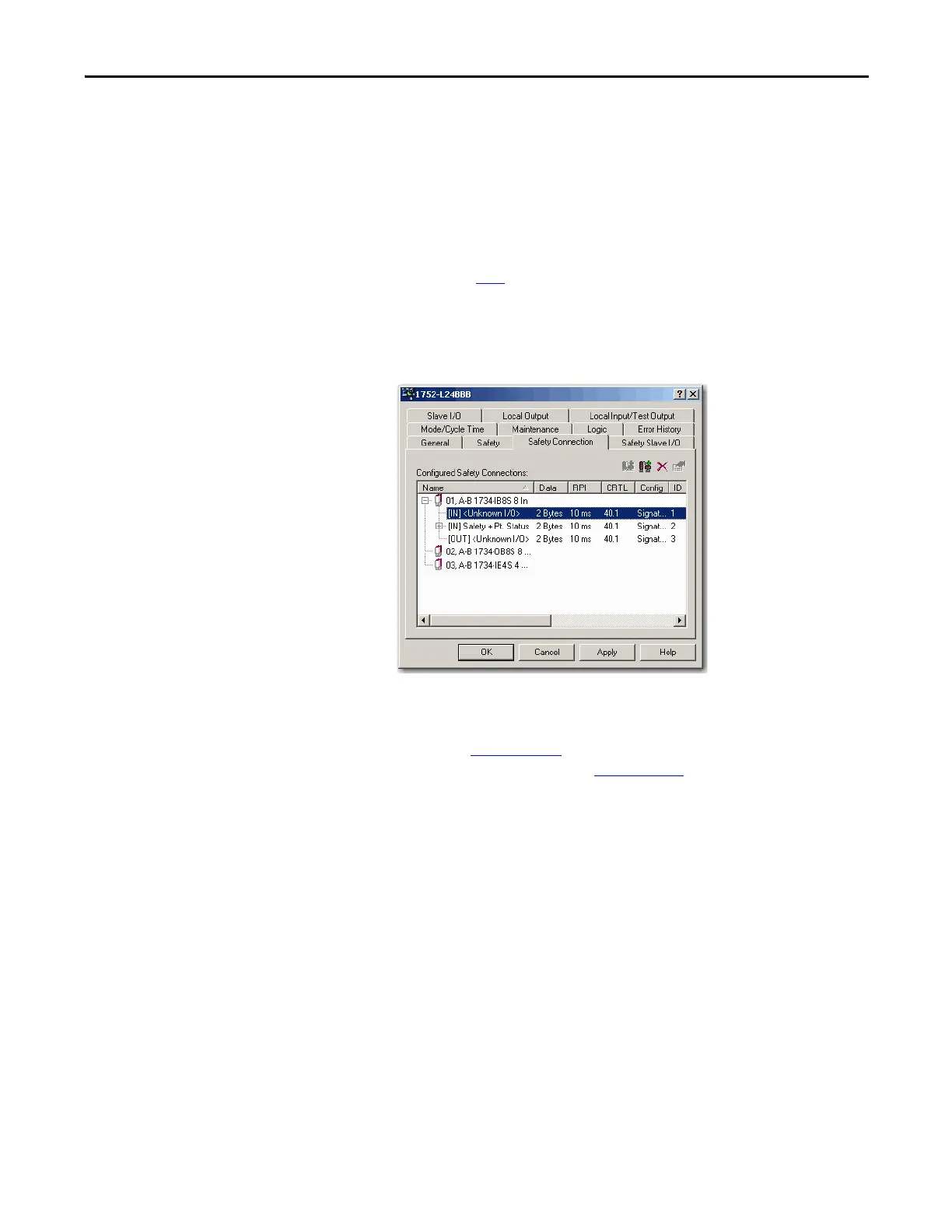

Notice that the connections for the 1734-IB8S module have 2 bytes. If you
had selected individual point status, the input connection would be
5 bytes.
11. Click Apply.
For further details, see the SmartGuard 600 Controllers User Manual,
publication 1752-UM001
, and SmartGuard 600 Controllers Safety
Reference Manual, publication 1752-RM001
.
